Motorcycle
Batteries & Chargers
E mail me if you don't know your battery type
How to order
Our battery carriers insist on a telephone number, please include this with your order
WESTCO SEALED AGM BATTERIES
Due to the weakness of the £ we've had to increase our prices of Westco batteries in the chart below by 10%
 |
The Westco MK sealed AGM (Absorbed Glass Mat) batteries are designed specifically for motorcycle use, incorporating robust construction and high cold cranking Amps (CCA) to ensure excellent starting particularly in cold conditions. Once fully charged they can be left for long periods without discharging or needing recharging. These are not to be confused with ordinary 'Gel batteries' which have to be charged as often as ordinary lead acid batteries. |
|

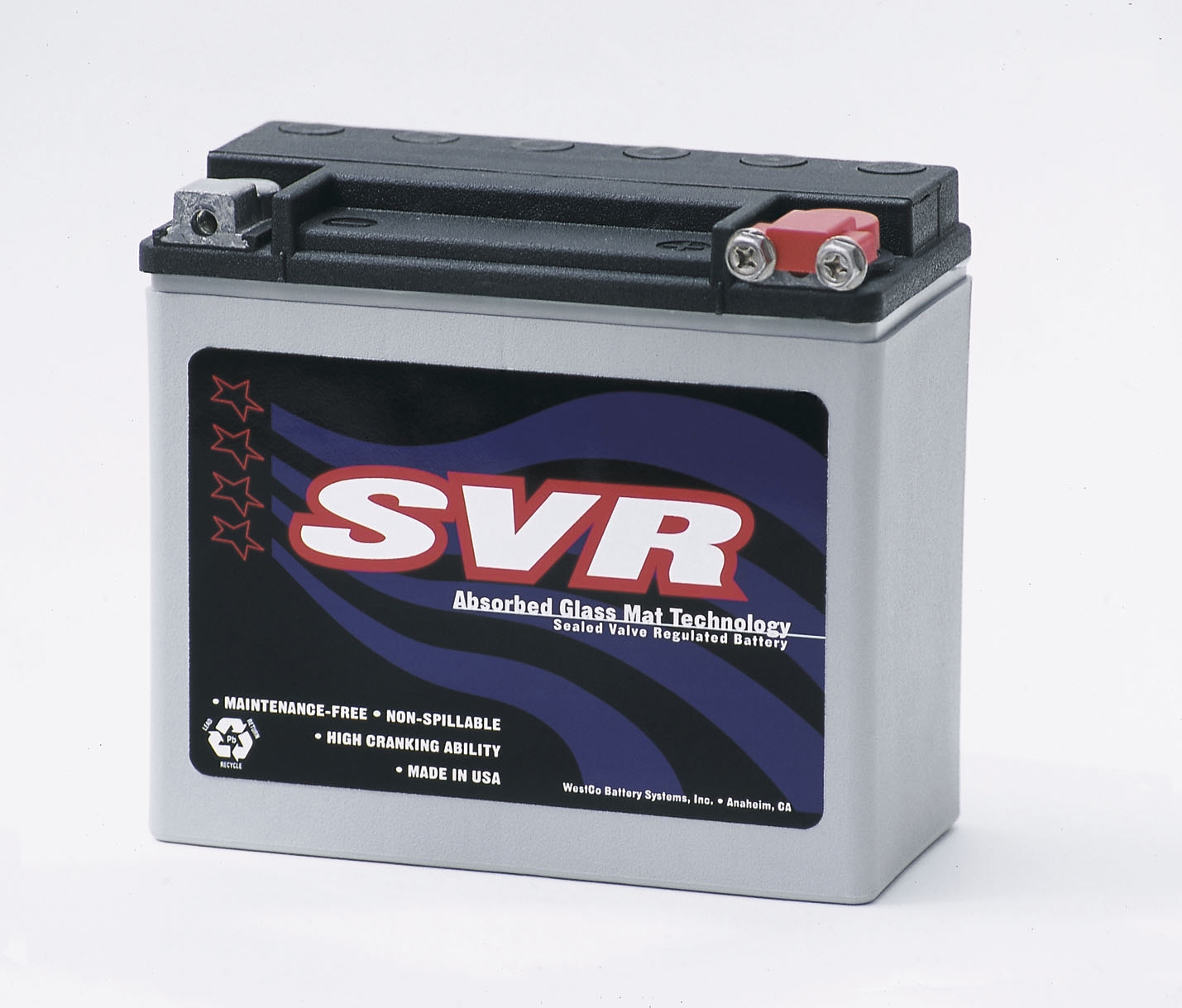

They are supplied fully charged so no further charging before use is required or desirable. All the Westco batteries below are direct replacements for the batteries listed having the same dimensions, terminals etc. Depending on the battery type some WestCo batteries are labelled SVR or WCP
|
 |
|
There
are direct replacements listed below for ordinary gel & sealed lead
acid batteries, but not for most 'wet' lead acid batteries.
|
|
Add
£8.95 P&P unless otherwise stated. Orders over £100.00
£11.95
|
|
If
you want tracking info. give me your E mail address with the order
|
|
IOW
is £15.95, IOM is £29.95, Northern Ireland £29.95.
Scottish & Channel islands ring for quote.
|
Dimensions are length x width x height
| Our Pt. no. | To replace | AH | CCA | Dimensions | Price |
| 12VX4L-B | YT4L-BS | 4 | 45 | 114 X 71 X 85 | £35.65 |
| 12VX5L-B | YTX5L-BS | 5 | 70 | 114 X 71 X 106 | £39.50 |
| 12V7ABS | YTX7ABS | 7 | 90 | 150 X 92 X 93 | £56.85 |
| 12V7B-B | YT7B-BS | 7 | 85 | 150 X 66 X 96 | £56.45 |
| 12V7L-B** | YTX7L-BS | 7 | 85 | 114 X 71 X 131 | £57.95 |
| 12VZ7S**** | YTZ7S | 7 | 130 | 110 X 68 X 110 |
£64.95 |
| 12V9B-4 | YT9B-4 | 8 | 115 | 152 X 69 X 104 |
£69.00 |
| 12V9-B | YTX9-BS | 9 | 120 | 152 X 87 X 106 | £64.00 |
| 12VZ10S | YTZ10S | 9 | 190 | 150 X 85 X 90 | £80.50 |
| 12V12A-BS | YT12A-ABS/YT12S | 10 | 175 | 150 X 85 X 105 | £88.00 |
| 12V12B-4 | YT12B-BS(4) | 10 | 125 | 152 X 69 X 130 | £76.30 |
| 12V12-B | YTX12-BS | 12 | 180 | 152 X 87 X 130 | £77.60 |
| 12V13L | YTX15L-BS | 13 | 275 | 174 X 82 X 133 |
£109.95 |
| 12V14-A2 | YT14A-2,YB14B2,YTX14AH-BS | 14 | 210 | 133 X 86 X 168 | £90.20 |
| 12V14B-4 | YT14B-4 | 12 | 135 | 154 X 69 X 146 | £78.80 |
| 12V14-B | YTX14-BS | 14 | 200 | 152 X 87 X 146 | £94.04 |
| 12V14L-B***** | YTX14AHL-BS, YB14LA2 | 12 | 190 | 135 X 89X 166 | £98.50 |
| 12V14R-B | YTX14L-BS | 14 | 200 | 150 X 88 X 146 | £83.25 |
| 12V16-B | YTX16-BS1 | 14 | 230 | 152 X 87 X 162 | £100.50 |
| 12V16-A2 * | YTX16-BS | 16 | 230 | 150 X 87 X 161 | £109.50 |
| 12V16CLB | YTX20HL-PW / YB16CL-B | 19 | 260 | 174 X 101X X174 | £110.50 |
| 12V20 | YTX20-BS | 18 | 300 | 174 X 87 X 155 | £110.50 |
| 12V20L | YTX20HL / YTX20L-BS | 18 | 300 | 174 X 87 X 155 | £110.50 |
| 12V20P | BMW19A.H / 51913,51814 | 20 | 275 | 178 X 76 X 165 | £110.50 |
| 12V22 | YTX24HL / Y50-N18L-A/A3 | 22 | 350 | 206 X 90 X 162 | £110.50 |
| 12VX30LB | YIX30L-BS | 30 | 385 | 166 X 127 X 174 | £123.95 |
| 12V30 | BMW25.A.H / 53030 | 30 | 350 | 165 X 124 X 174 | £133.95 |
| The WCP batteries are as supplied to Harley Davidson. They are not black, nor labelled HD but are the same specification as Harley batteries and made in the USA, hence the slightly higher price. |
| WCP9 | YTK9-BS | 9 | 120 | 150 X 88 X 106 | £115.00 |
| WCP12 | YTX12-BS | 12 | 180 | 152 X 87 X 130 | £106.00 |
| WCP14 | YTX14-BS / CUSTOM | 14 | 250 | 147 X 84 X 149 | £121.95 |
| WCP15L***** | YB14LA2 / YTX14AHL | 14 | 190 | 135 X 89 X 166 | £103.95 |
| WCP18 | YTX24HL / Y50N18L-A | 22 | 350 | 206 X 87 X 162 | £139.95 |
| WCP20 | YB16-B | 18 | 300 | 175 X 102 X 156 | £128.50 |
| WCP20L | YTX20L-BS / YTX20HL-BS | 18 | 300 | 175 X 87 X 156 | £148.90 |
| WCP30 | YIX30L, YB30L-B | 30 | 370 | 166 X 127 X 174 | £145.25 |
| SVR48 | 70 | 760 | 278 X 175 X 190 | £301.00 | |
| SVR49 | 95 | 850 | 354 X 175 X 190 | £440.00 | |
| SVR34/78DT | 55 | 860 | 273 X 175 X 203 | £275.00 |
* Fits Commando 850 Mk III ** Fits A7/A10 **** Fits Slimline Featherbeds *****(AKA SVR15)Fits Norton Interpol 2
Our carriers insist on a telephone number for the batteries above, please include yours with your order
If you want tracking info. give me your E mail address with the order
AGM Battery instructions

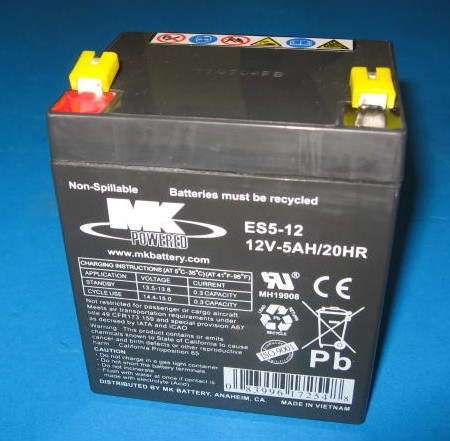

WESTCO 12V AGM BATTERY
 |
These use the same advanced AGM technology as the batteries above but are intended for use with 12V non-electric start bikes They have a 5AH capacity They are 90 x 70 x 106MM & fit inside the rubber battery boxes.(3 1/2" x 2 3/4" x 4 1/4" App.) Terminal connectors are supplied £35.95 + £9.95 P&P Pt. no. ES5-12 With the Lucas battery box £61.00 + £9.95 P&P Pt.no. BATCAS5-12 |

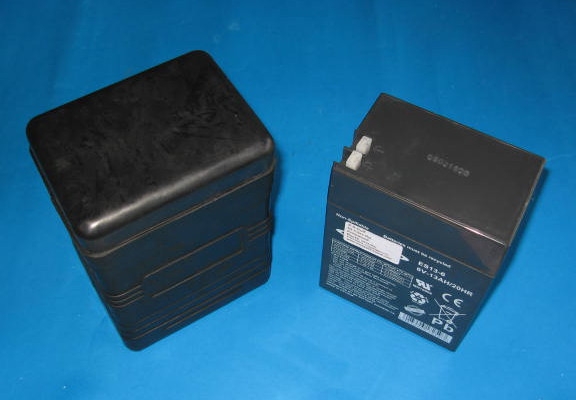

WESTCO 6V AGM BATTERY
|
These use the same advanced AGM technology as the 12V batteries above but are intended for use with 6V non-electric start bikes They have a large 13AH capacity They are 107 x 70 x 139MM & are a snug fit inside the rubber battery boxes. (4 1/8" x 2 3/4" x 5 1/2" app.) Terminal connectors are supplied £46.95 + £9.95 P&P Pt. no. ES13-6 |
 |
 |
They have been designed to be a snug fit inside the new hard rubber battery case giving the maximum storage capacity. Pt.no. BATCAS13-6
With the Lucas battery box, see below £71.90 + £9.95 P&P |
|
I
cannot ship Westco batteries outside the UK
|
|
For bikes with a 6V alternator, a Regulator/Rectifier must be fitted in place of the existing rectifier to prevent overcharging and damage. An original or modern Voltage regulator on a dynamo equipped bike will be OK. Pt no. AREG6 £34.95
see |
What exactly is an AGM battery?
|
An AGM (Absorbed Glass Mat) battery is a lead acid battery that is sealed using special pressure valves and is completely maintenance-free. The electrolyte is absorbed in separators consisting of a sponge like mass of matted glass fibres which uses a recombination reaction to prevent the escape of hydrogen and oxygen gases normally lost in a liquid lead-acid battery. They are non-spillable, and therefore can be operated in virtually any position. However, upside-down installation is not recommended. Once fully charged they can be left for long periods without discharging or needing recharging. If the bike is not to be ridden for months, it is recommended that the fuse is removed. (You do have a fuse don't you)? Some Voltage regulators have a slight discharge to earth which can lower the battery Voltage to damaging levels over several months. They have a very
high discharge current ability ensuring excellant cold starting characteristics,
where applicable.
|
CYCLON 5AH AGM BATTERIES
IDEAL FOR CLASSIC BIKES
 |
These lead/acid batteries are totally sealed and hold the acid in gel form soaked into matting making them totally leak proof and able to be mounted in any position. Each battery is 6V . Two batteries can be connected to provide 6V or 12V, instructions are supplied.
|
| These batteries are designed for long term use and can easily last 8/10 years, and they can be left for long periods without charging. | |||

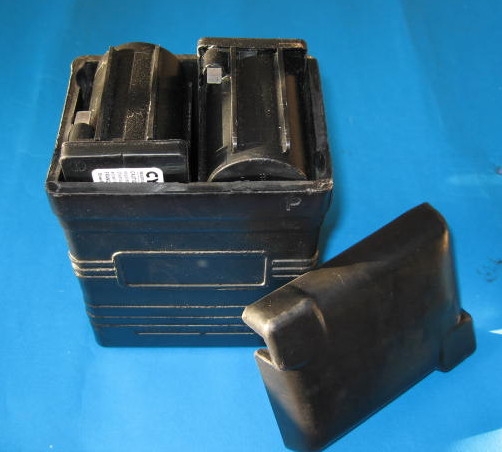

| Each battery measures 136 x 51x 75MM so 2 can be fitted inside the battery case below or mounted in place of a std. battery. They are not suitable for bikes with electric starts. (5 1/4" x 2" x 3") App. | |||
| Two batteries connected in paralell for 6V have a capacity of 10AH, in series for 12V 5AH, and are suitable for use with dynamo equipped bikes fitted with a solid state Voltage regulator. Alternator bikes need a Zener diode or preferably a solid state Voltage regulator in 6V or 12V | |||
| Cyclon
cells are supplied charged, no further charging before use is required
or desirable.
Full Cyclon instructions |
|||
|
|
Burlen batteries sell these with their own label,
otherwise identical but more expensive.
|
|
I
cannot ship Cyclon cells outside the UK
|
NEW CYCLON 8AH BATTERIES
|
We now stock a larger capacity 8AH Cyclon battery. These are the same width & length as the 5AH but are taller at 136 x 51 x 100 MM high. ( 5 1/4" x 2" x 4" ) app. One can be fitted into the dummy battery case These cost £31.95 + £9.95 P&P Pt. No. BATCYC08 Plain battery case with one 8AH cell with the Lucas battery box Pt.no BATCASCYC08 £56.90 + £9.95 P&P |
DUMMY BATTERY CASE
 |

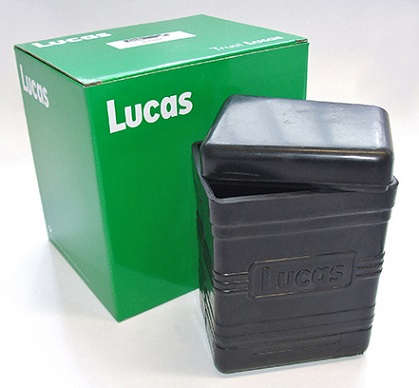

Genuine Lucas battery case Lucas embossed on the side 4 1/2" x 3 1/2" x 6 3/8" (114 x 89 x 162MM) and can be used with a smaller 6V battery. Inside dimensions are 107 x 70 x 150MM high This can be used with 2 x 5AH Cyclons,1 x 8AH Cyclon, 12V 5AH Westco BATES5-12,the Westco BATES13-6 above or 1 or 2 Lucas batteries. BB14077 £24.95 |
|
 |

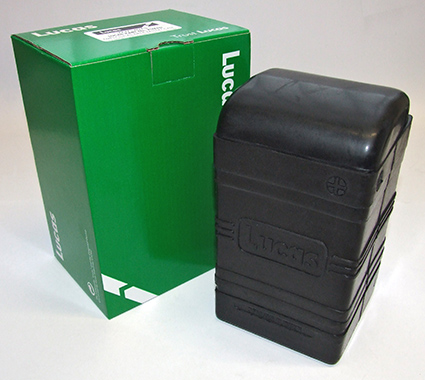

Genuine Lucas battery case Lucas embossed on the side Bantams etc. 3 5/8" x 3 5/8" x 5 1/2" (92 x 92 x 140MM) This will take 1 x 5AH Cyclon or 1 Lucas 4AH battery BB14073 £21.95
|
GENUINE LUCAS AGM BATTERIES
I sell these because the Lucas name guarantees good quality, but in my opinion 4AH is too small a capacity for a bike battery. You can put 2 together to make 8AH but a 8AH Cyclon is cheaper
 |
Lucas 6V 4AH AGM battery Pt.no. BAT09226L £16.50 each These fit both the battery boxes
|
Two of these batteries can be wired to give 12V 4AH or 6V 8AH
 |
Lucas 6V 4AH AGM battery + Lucas battery box Pt.no. BAT14079L £39.90 each
|
 |
2 x Lucas 6V 4AH AGM batteries + Lucas battery box Pt.no. BAT14080L £59.95 each |
|
Overall
size 4 1/2"
x 3 1/2" x 6 3/8" (114 x 89 x 162MM)
|
.jpg) |
Lucas 6V 4AH AGM battery + the smaller Lucas battery box 3 5/8" x 3 5/8" x 5 1/2" (92 x 92 x 140MM) Pt.no. BAT14081L £39.90 each |
FUSEHOLDERS
|
Fitting a fuse is always a good idea, and as AGM batteries have a high discharge current capability, in the event of a dead short without a fuse your harness could become a red hot dripping mess very quickly. This waterproof fuseholder takes std. car type fuses, so even your local Halfords should have them Pt.no. FUBH04 £2.95 with a 30A fuse, spare fuses 25P |
 |

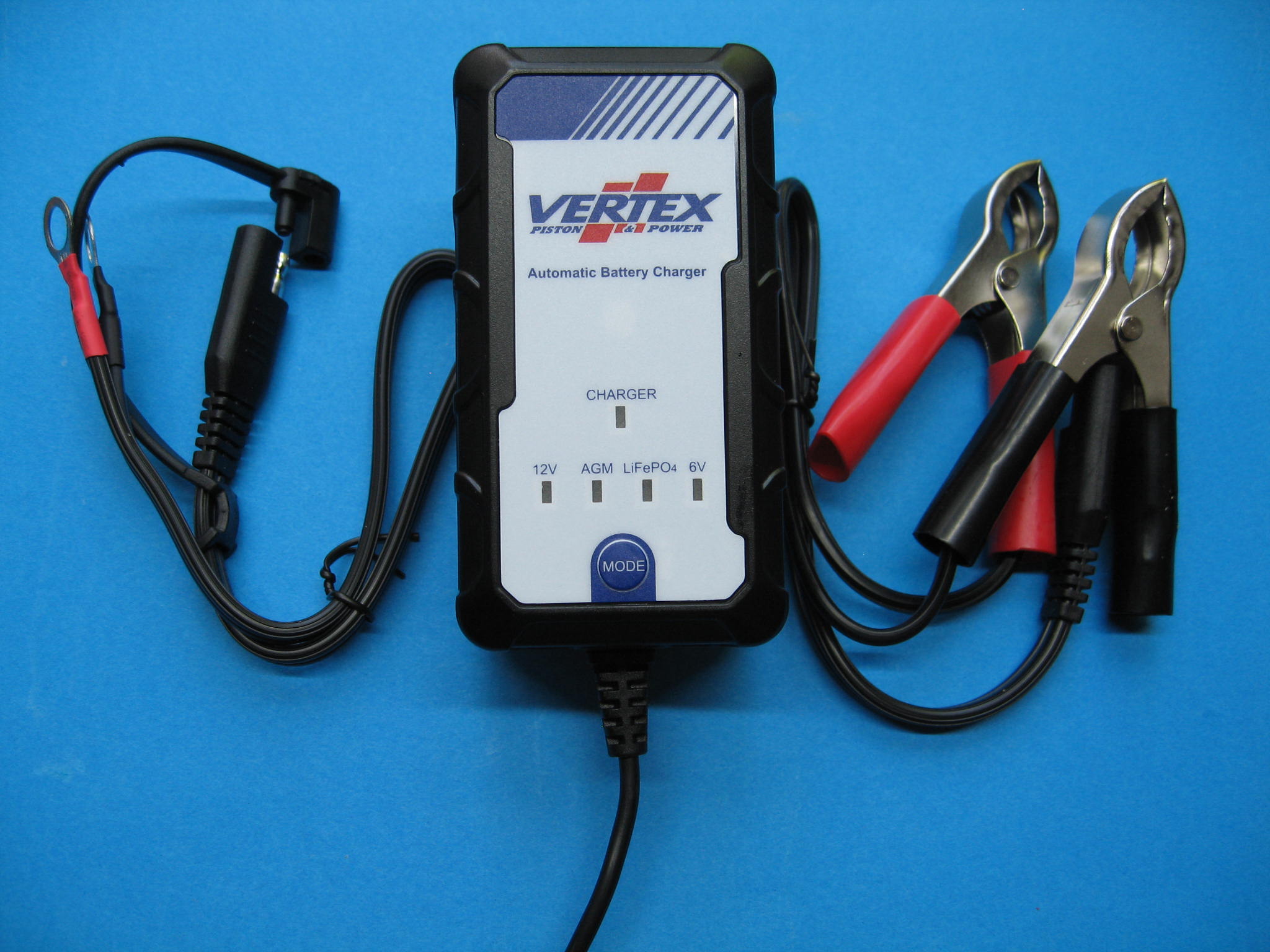

BATTERY CHARGERS
.jpg) |
Fully automatic battery charger. Can be switched between 6V & 12V Suits all types of motorcycle battery Auto-stop prevents overcharging Maximum charge 1.0A, ideal for motorcycle batteries Comes with extra eyeletted leads and quick release plug/socket for easy connection Pt.no. BCH012 £19.95 + £3.95 P&P
|
 |
Spare leads for Optimate/Accumate chargers & BCH012. Pt.no. BCH0N03 £3.95
|
|
TO ORDER Post me a cheque with the type of battery required and your name and address and the battery will be despatched the same day the cheque arrives. P.R.Goff, 62 Clare Rd. Prestwood, Bucks. HP16 0NU Our carriers insist on a telephone number, please include your daytime number with your order I can take Debit/Credit cards over the phone, preferably Debit - the banks don't charge as much. You can also order using a card by using Paypal Go to the Paypal website (www.paypal.com). Pay norbsa02@aol.com, put what you want in the message section. As soon as I receive notification I'll post the order. Click here for the paypal
