LED Indicators
LED Indicators
|
|
Add £4.95 carriage up to £25.00 £25.00 - £50.00 add £6.95, £50.00 - £100.00 add £7.95, Over £100.00 add £12.95 If in doubt E mail for a price norbsa02@aol.com Overseas bulb & LED orders add £6.00. Overseas orders for other products E mail for carriage costs. If in doubt E mail for a price norbsa02@aol.com Overseas bulb & LED orders add £5.00. Overseas orders for other products E mail for carriage costs. |
The wiring for LED indicators is the same as for conventional indicators, but I have many customers getting it wrong - & it always burns out the expensive flasher unit, so if you're not 100% competant with bike wiring I'd stick with conventional indicators.
|
These are BA15s (1156) LED indicator bulbs designed to replace the standard bulb. They only consume 4 Watts but are as bright as the original indicator bulb. They are available in 6V/12V Dual Polarity Positive earth or negative earth, 6V LED compatable flasher units are currently unavailable They can be used with clear or amber lenses, overall length is 43MM Pt.no. LDIND12V / LDIND6V £7.95 ea. |
 |
 |
|
|
These
are fitted to the indicators below
|
|
Standard flasher units do not work with LED indicators, an LED Compatible flasher unit must be fitted If a warning light is fitted, a "Tweaker" will be needed, see below. |
| If the letters cannot be read, with the centre terminal at the top, B is left, E is right & L is at the top |
FLASHER UNITS, LED COMPATABLE
|
12V LED compatible Flasher unit Pt.no. WRELED01 2 pin £9.95 Pt.no. WRELED02 3 pin £9.95 Simple & reliable
|
 |
3 Pin connections: B= Bulbs, L= Live & E= Earth. For pos. earth swap B & L |
| 10W max. load so LEDs only. If you want one LED & one 21W bulb per side our WRE06 below will work or The Lucas flasher unit below |
|

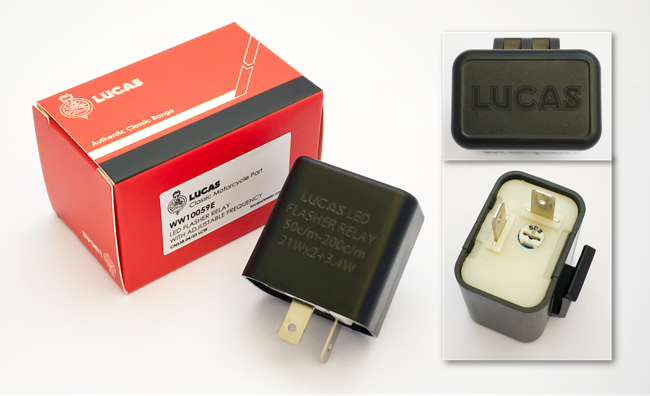

Genuine Lucas LED compatible 12V motorcycle flasher unit Adjustable flash rate Suitable for both negative and positive ground systems Can also be used with conventional bulbs Pt.no. IND10059LED £15.95
|
 |
For negative ground connection - terminal B to live, terminal L to bulbs For positive ground connection - terminal B to bulbs, terminal L to live |
TRADITIONAL ROUND INDICATORS
 |
Good quality metal bodied indicators, these feature a rubber seal between the body & lens to keep moisture out. The M8 mounting thread is over 30MM long so can be used to mount the headlamp at the front & mudguard at the rear. 49MM dia. & 65MM long. Don't look out of place on Austin 7s etc. & can be supplier with a panel mounting toggle switch. Pt.nos. INDCBULED 6V or INDCBULED 12V 6V FLASHER UNIT CURRENTLY UNAVAILABLE £44.95 PER PAIR FITTED WITH LEDS On installation the black/white wire is earth |
 |
|
ALSO AVAILABLE IN BLACK Pt.nos. INDC015LED 6V or INDC015LED 12V 6V FLASHER UNIT CURRENTLY UNAVAILABLE 49MM dia. & 65MM long £44.95 PER PAIR FITTED WITH LEDS On installation the black/white wire is earth
|
For indicators with
standard bulbs click here  |
PATTERN LUCAS INDICATORS
|
These are reproductions of the Lucas indicators fitted to 1970s BSA, Triumph and Nortons. They are 2 5/8" in dia. The mounting threads as the originals are 7/16 UNF Fitted with LEDs £39.95 / pair. 3.0" Stalk Pt.no IND10170LED 6V or 12V Please state which 5.0" Stalk Pt.no IND10171LED 6V or 12V Please state which 6V LED FLASHER UNIT CURRENTLY UNAVAILABLE I can also fit LEDs into the geniune Lucas indicators St./St. Locknuts to suit £1.00 ea. Pt.no INDLN |
INDICATORS WITH LEDS ALREADY FITTED
|
Minature LED indicators. Only 40MM long. Can be wired for either positive or negative earth. Polished chrome finish, clear lens with amber leds. Very bright Pt.no. INDLED13 12V only £49.90 per pair |
 |
|
|
LED indicators. Can be wired for either positive or negative earth. Black finish, clear lens with amber leds. Long or short, long shown 12V only. Very bright Pt.no. INDLED18 - LONG 85MM from base to tip Pt.no. INDLED19 -SHORT 67MM from base to tip On installation the black wire is negative. £29.95 per pair |
 |
LED INDICATOR WARNING LIGHT TWEAKER
|
If all
four of your LED indicators flash together, you need one of these Tweakers
|
 |
Easily wired inside the headlamp shell, takes 5 minutes. Comes with instructions Pt.no.LDTW (Neg or Pos) £9.95 Negative or positive earth, please state which.
|
 |
 |
If you fit a LED bulb in place of a std. warning light bulb it will only work on one side, left or right not both. You need a Tweaker.
Click here for indicator
wiring diagram
INDICATOR SWITCHES
 |
Indicator switch 3 3 position indicator switch is for handlebar mounting and features a 'centre-off' position. Simple & reliable. £11.95 Pt.no IND694997 |
 |
Indicator switch 4 Switch similar to the one above but better quality with a more substantial clamp arrangement £16.95 Pt.no. Pt.no. IND15434
|
|
Choosing this switch
will add £8.00 to the cost of any of the above indicator kits
|
 |
Car indicator switch Unobtrusive 3 position switch, for panel mounting £10.90 Pt.no. SW81702 |
HANDLEBAR MOUNTED LIGHT/INDICATOR SWITCHES
|
|
Compact Multipurpose handlebar switch No. 1 Pt.no. IND694600 Just over 1 1/8"" wide (30MM) Clamps around the standard 7/8" handlebar Headlight: Dip, Main Indicators. Horn. £39.95 The connecting wires are 550MM long Click here |
| This switch is ideal when adding indicators to a classic bike, needing no wiring changes to the light switch, only removal of the existing dip switch/horn button and wiring in the indicators. Existing levers can be used. |
|
Right handlebar switch No. 2 Pt.no. IND694605 Just over 1 1/8"" wide (30MM) Matching right hand switch: Engine run/off Lights on/off Electric start or flasher. £39.95 |
 |
Genuine Lucas warning lights
Fitted with bulbs 6V or 12V, often supplied without bulbs elsewhere
 |
 |
|
||||||||||
| £5.95 each. |
|
A 1/2" hole
is required for mounting
|
Genuine Lucas Diamond warning lights
 |
 |
|
||||||||
|
1/2" mounting
hole required.
|
£8.95 each. |
LED warning light bulbs to suit the Lucas warning lights
 |
These LEDs fit the Lucas warning light shown (all colours) and many others, also some magnetic speedo lights, C15 etc. They are 7MM in diameter & have 'shoulders' rather than locating pins. They are much brighter than the std. bulbs but are only available in white, so make the warning light appear a little milky. 12v are available in either Positive earth or negative earth. 12V Pt.no. LDBA7VP & LDBA7N 6V Pt.no. LDBA7-6V (dual polarity 6V only) £3.00 each. |
| As in many other areas, technology has overtaken law making, therefore some LEDs may not comply with all current legislation, European or US, particularly when fitted to more modern vehicles. |
