LED Daytime Running Lights

LEDs must be fed from a battery supply. Direct from a generator they won't work or will have a short life.

NEW Individual Daytime Running Lights



These are our latest & brightest individual LEDs for cars or motorbikes.

They are intended for panel mounting using the 10MM x 24MM thread, or they can fitted into existing sidelights or headlights - but for maximum effect should be horizontal. They consume only 1.5W

12V + or - earth. Can be used with 6V but won't be as bright.

Outside dia. is 22MM and from the flat back to the front of the lens is only 11MM

They are sold in pairs.

Pt.no. DRL01 £9.95 per pair

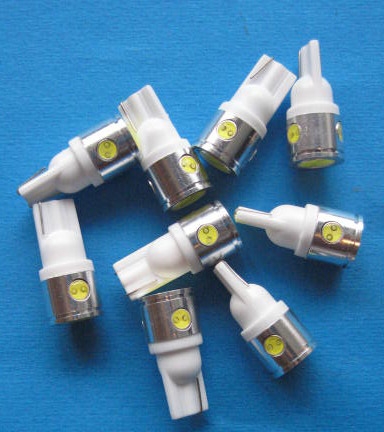

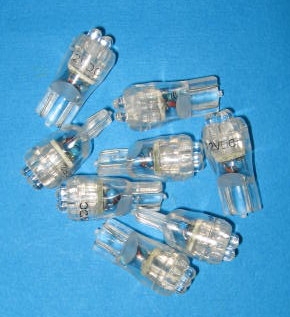

Very bright T10 10MM Capless (Wedge)

To be fitted as pilot lights inside the headlight reflector, Royal Enfield Caskette lights and car sidelights



These can be used for + or - earth systems by simply rotating in the bulbholder





This is our latest LED for daytime riding/driving. Very bright. Can be used for positive or negative earth.

Ideal for fitting onto the headlight reflector instead of the pilot light. Great for speedos 6V or 12V versions

It comes complete with a rubber holder to fit into 14 - 16MM dia. holes in the reflector though can be adapted for many other locations.

They consume only 1.5W

Pt.no. With holder LDT10DWH £6.50

Pt.no. With holder LDT10DWH6V £6.50

Pt.no. Without holder LDT10DW £4.00

Pt.no. Without holder LDT10DW6V £4.00




Now also available in yellow to make your bike even more visable in a sea of white lights. 12V only

Pt.no. With holder LDT10DYH £6.50

Pt.no. Without holder LDT10DY £4.00



Very bright BA9s White Pilot light LEDs

This is our new LED for motorcycle/car headlamp pilot lights. 6V & 12V versions. They have a special diffuser that shines light in all directions to light the headlamp bowl evenly much like a std. bulb. 29MM x 12MM dia. They consume only 1.5W

Positive earth Pt.no. LDBA9DWPOS £4.00 each. Please state 6V or 12V

Negatove earth Pt.no. LDBA9DWneg £4.00 each. Please state 6V or 12V

Also great for speedo lights

These fit the HL13124 bulbholder as shown above £4.95 & the Chronometric speedo bulbholder SP13119 £4.95

NEW

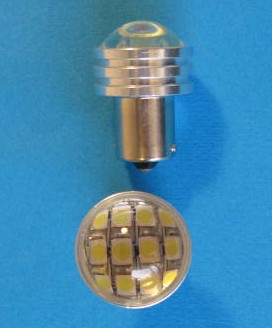

Very bright BA15s White Sidelight LEDs



This is our new LED for motorcycle/car side lights. They are our brightest yet. They have a special diffuser that shines light in all directions to light evenly much like a std. bulb. 12V - earth only. 42MM long x 18MM dia

Pt.no. LDBA15DW £9.95 each.OUT OF STOCK

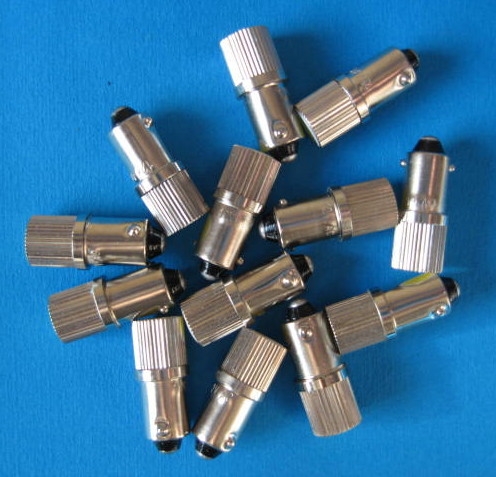

Smaller BA9s 9MM bayonet cap

To be fitted as pilot lights inside the headlight reflector, Royal Enfield Caskette lights and car sidelights





Suits most motorcycle pilot lights from early 1950s on.

Many 1960s/1970s cars can also use these as pilot lights or seperate sidelights.

These new 12V LEDs produce a bright light through a full180 degrees

Can also be used for instrument lights



BA9s 9MM bayonet £5.95

11MM dia x 26MM

Pt.no.LD18BA9 12V

+ OR - earth

Very good for bike speedos





BA9s Bulbholder to suit. These isolate the LED so they can be wired + or - earth. They fit a14-16MM hole and suit the std. & pattern Lucas headlights.

BA9s Pt.no.HL13121 £2.50

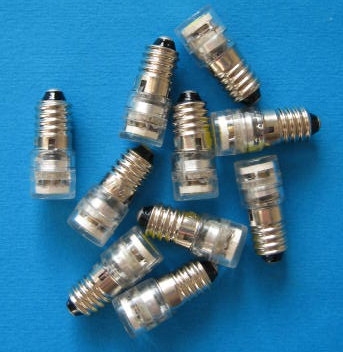

MES 10MM Edison screw

Suits + or - earth

Pt.no. LD18MES £5.95



Be careful when fitting these, it's easy to damage the locating pins.

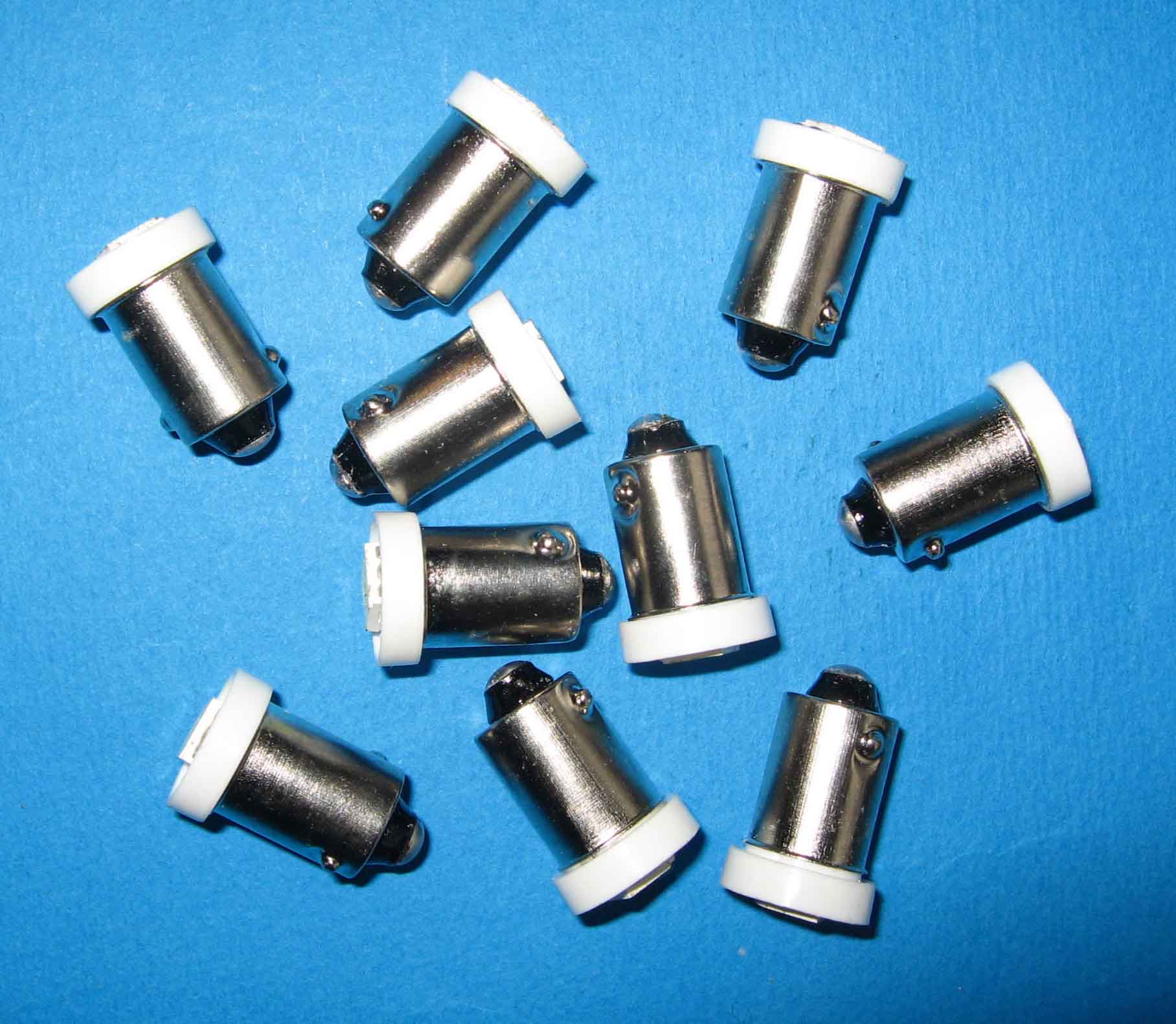

NEW 6V BA9s LEDs

As with the LEDs above these have 180 degree light output making them suitable for instrument & pilot lights



BA9s 9MM Bayonet Cap

Suits 6V- earth Can be used positive earth with the bulbholder shown above

Ideal for pilot lights & instrument lights

Pt.no. LD6BA9 £3.95

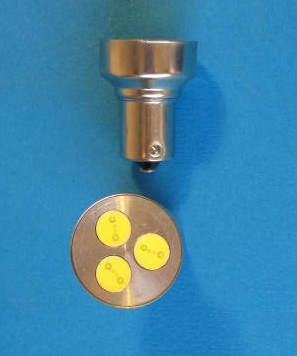

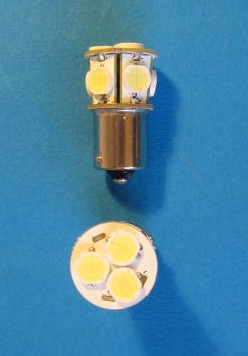

BA15s 15MM bayonet cap

To be fitted as pilot lights inside the headlamp, mainly before the early 1950s to cars/motorbikes. Also seperate car sidelights 12V - earth only



Stop/tail Lightboard

This is a new, more robust & brighter version of our original stop/tail Lightboard.

This takes 16 red LEDS for the stop/tail light and 2 white 'Surface Mount' LEDs for the white numberplate light.

Installation is straightforward:

The lightboard is only 1 7/16" in diameter (38MM) and mounts on 2 pillars with 3MM female threads. Only 2 small holes need to be drilled in the rearlight to mount it. The original bulb can be refitted later if required. The existing contact is removed and the wiring exits as normal. Full fitting instructions are supplied with each unit.



The Mk.2 Lightboard can be fitted to either Positive or Negative earthed vehicles, 6V & 12V versions are available.

Very low current draw, 0.035A

Voltage Part Number Price
6V LB6 £23.95, £46.00 for 2
12V LB12 £23.95, £46.00 for 2





Vincent/Velocette style LED Rearlight



Miller pattern rearlight as fitted to Vincents & Velocettes supplied with 29 high output LEDs giving stop/tail & numberplate light. Very bright.

Only available in 12V negative earth.

Pt.no.Pt.no. RLED255-057 £39.95

Festoon LEDs

LED festoons in white

42MM point to point.

Very bright. 12V Pos. or neg. earth

Pt.no. LDF42W



£4.95 each

Stop/Tail bulb replacements

Most stop/tail LEDs for car and motorbike use that you will see only feature rearward facing LEDs. These only give off light in one direction. The first of our LEDs shown below feature radially mounted white LEDs that give white numberplate light and also light up the whole of the lens surround. This is particularly important for most motorbikes and older cars such as MGBs, XK120s, Anglias etc that have rearlights not mounted flush with the rear panel.



BAY15d (1157). 15MM dia. bayonet Offset pin. Replace 21/5W & 23/8W etc.

12V Negative earth (See below for positive earth)

Name

Dimension Description Price

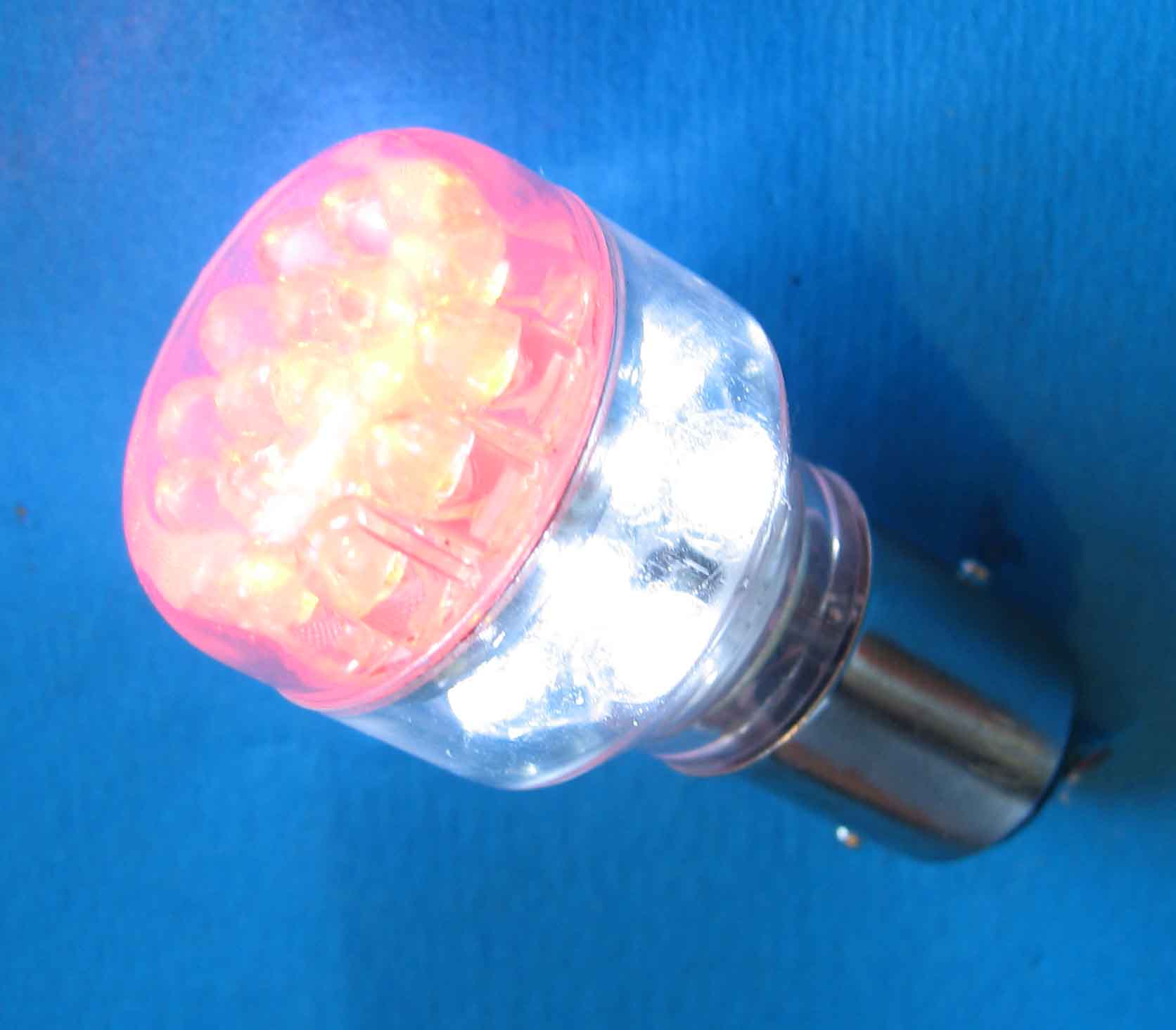

LEDACE

25RST

Pt.no.LD25RST



26MM x 44MM 19 red LEDs facing rearward and 6 radially mounted white that give white numberplate lighting and / or light up the whole of the lens £9.95

LEDACE

24RST

Pt.No. LD24RST

26MM x 42MM 18 red LEDs facing rearward and 6 radially mounted red that light up the whole of the lens

£12.95



WHITE

LEDACE

24WST

Pt.no. LD24WST

26MM x 42MM 18 WHITE LEDs facing rearward and 6 radially mounted that light up the whole of the lens

£13.95



LEDACE

9RST

Pt.no. LD9RST

19MM x 34MM 9 rearward facing LEDs for use where space is limited £9.95



BAY15d (1157). 15MM dia. bayonet. Offset pin. Replace 21/5W & 23/8W etc.

12V Positive earth

Name

Dimension Description Price

LEDOPTO

25RST

Pt.no.LO25RST

26MM x 44MM

19 red LEDs facing rearward and 6 radially mounted whites that give numberplate lighting and light up the whole of the lens

£12.95





LED replacements for single contact bulbs

ie seperate stop and tail bulbs and indicators.

BA15s (1156). 15MM dia. bayonet. Paralell pin. Replace 5W,10W & 21W etc.

12V Negative earth

Name

Application Dimension Description Price

RED

LEDACE 24RS

Pt.no. LD24RS

Red Tail/Stoplight

26MM x 42MM

18 red LEDs facing rearward and 6 radially mounted red that light up the whole of the lens

£12.95



WHITE

LEDACE

9WS

Pt.no LD9WS

BA15s

19MM x 34MM

9 forward facing LEDs. These replace 5W car sidelight bulbs but are about as bright as a 10W std. bulb £9.95

RED

LEDACE 9RT

Pt.no.LD9RT

Red

Tailight

19MM x 34MM

9 rearward facing LEDs for use where space is limited £9.95

AMBER

LEDACE 24A

Pt.no.LD24A



Amber Indicator

BA15s (1156)

26MM x 39MM

18 amber LEDs facing rearward and 6 radially mounted that light up the whole of the lens

£9.95





12V Flasher units are available to suit LED indicators in 2 pin and 3 pin layouts £12.95

2 pin £12.95 Pt.no. INDWRELED01 2 pin

3 pin £12.95 Pt.no. INDWRLED02 3 pin

3 Pin wiring: B=Bulb, L= Live & E=Earth



LED indicators

12V only

Minature LED indicators. Only 40MM long. Can be wired for either positive or negative earth. Polished chrome finish, clear lens with amber leds.

Pt.no. INDLED13

£39.90 per pair



LED indicators. Can be wired for either positive or negative earth. Black finish, clear lens with amber leds. Long or short, long shown

Pt.no. INDLED18 - LONG

Pt.no. INDLED19 -SHORT

£19.95 per pair



Amber LED bulb replacement. This replaces the standard 12V 21W indicator bulb so can be fitted into the Lucas type indicators above but in 12V negative earth only. LEDACE24A £9.95 each

Pt.no. LD24A



A standard flasher unit won't work with LEDs so a LED compatible flasher is available.

2 pin £12.95 Pt.no. INDWRELED01 2 pin

3 pin £12.95 Pt.no. INDWRLED02 3 pin

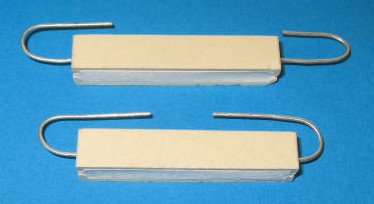

Or, in most cases resistors can be wired in parallel with the LEDs to enable the std. flasher unit to be used. £2.50/pair. Usually 1 pair is sufficient.

Smaller than they appear in the photograph

Pt.no. INDRES01





LED replacements for instrument bulbs

Name

Volts Sizes Description Price

12V Positive or negative earth

LD18MES



12V only

10MM MES

10MM x 25MM

1 x super bright LED giving 180 degrees light output £5.95

12V Negative earth only

LEDACE INSTRUMENT



Pt.no. LDINST

12V white only

11MM x 25MM These replace the BA9s bulbs used for instrument and dashboard lighting. They feature a diffuser so the light shines in all directions.

£1.00





The LEDs supplied may vary in appearance from the items shown on this page, but if different, the performance will be as good or better than those shown.

As in many other areas, technology has overtaken lawmaking, therefore LEDs may not comply with all current legislation European or US particularly when fitted to more modern vehicles.
