Motorcycle &
Vintage Car Indicators Motorcycle &
Vintage Car Indicators
Indicator Switches & Flasher Units
How to order
|
|
Add £4.95 carriage up to £25.00 £25.00 - £50.00 add £6.95, £50.00 - £100.00 add £7.95, Over £100.00 add £12.95 If in doubt E mail for a price norbsa02@aol.com Overseas bulb & LED orders add £6.00. Overseas orders for other products E mail for carriage costs. If in doubt E mail for a price norbsa02@aol.com Overseas bulb & LED orders add £5.00. Overseas orders for other products E mail for carriage costs.
|
All the indicators on this page have standard bulbs.
CLICK HERE FOR LED INDICATORS
MINI INDICATORS
12V only
|
|
 |
 |
|
Chrome body amber lens Pt.no. IND35023 All types £12.95 per pair |

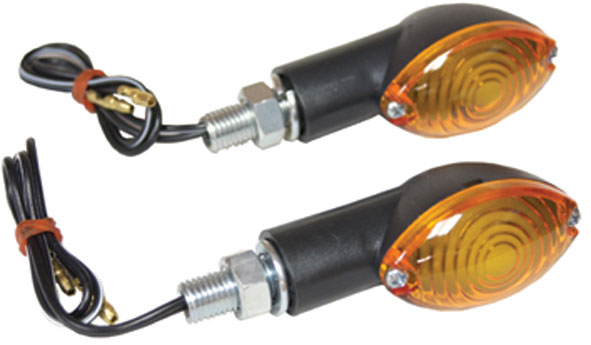

| Black body amber lens Pt.no. IND35022 |

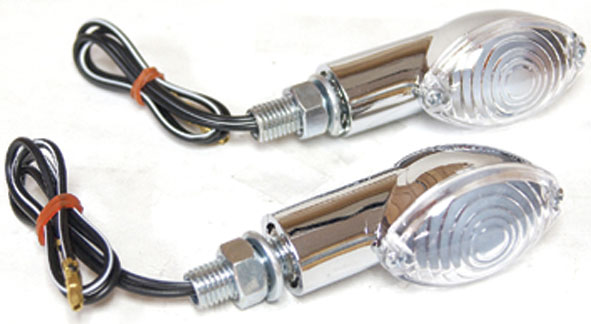

| Chrome body clear lens Pt.no. IND35029 |
| 2 x pairs Mini Indicators, 1 x flasher unit, 1 x handlebar switch, wiring diag. £45.95 Pt.nos. INDMINIA for chrome, INDMINIB for black INDMINIC for clear lenses |
Measuring 2 1/2" (64MM) with a lens 1 7/8" (47MM) these mini indicators look smart and unobtrusive.
Mounting thread M10 x 20MM long
Fitted with a 12V 23W bulb they are very bright.
Indicator switch Pt.no. IND694997 £9.95 Flasher unit INDWRE06 £6.95
|

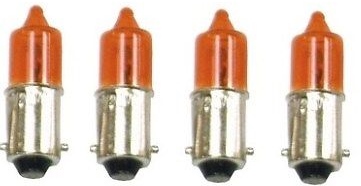

Spare Bulbs for the above, 9MM (BA9s) Clear Pt.no. BLB03 £1.50 each Amber Pt.no. BLB07 £1.50 each These are BA9s with a 9MM dia. bayonet with equal pins. Minimum order 4 if ordering alone |
 |
Measuring 2 1/2" (64MM) with a lens 1 7/8" (47MM) these mini indicators look smart and unobtrusive.
Mounting thread M10 x 20MM long
UNIVERSAL INDICATORS
|

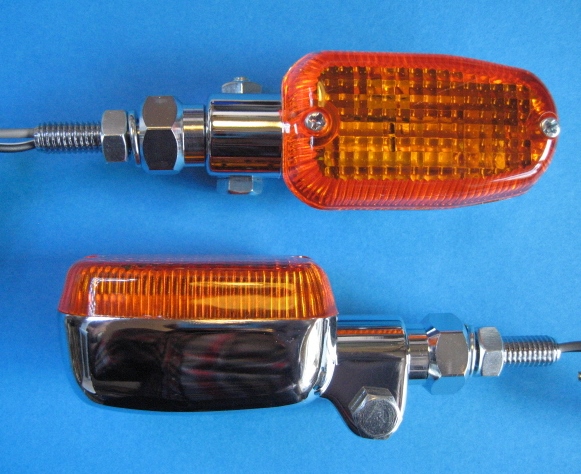

Universal chromed alloy indicators. They look particularly good on Cafe Racers and customs, and not out of place on classics. 6 or 12V
|
|

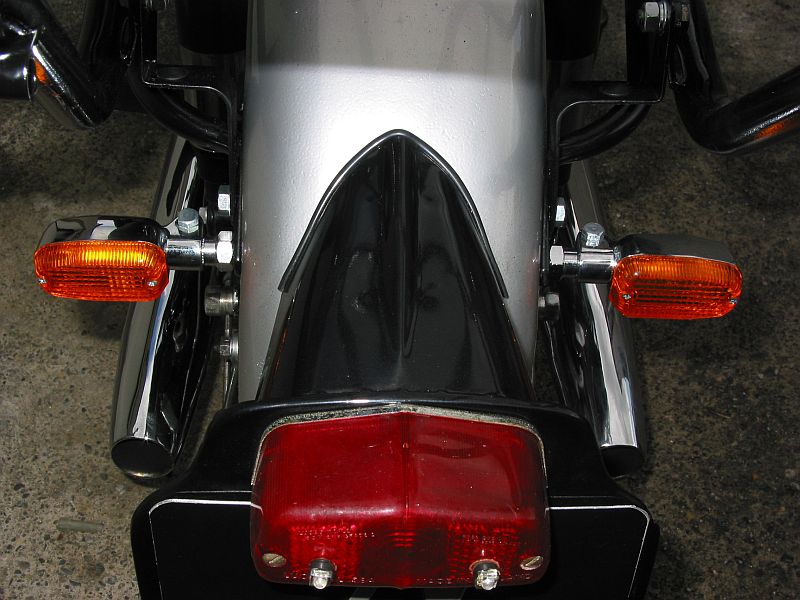

The mounting stud is 8MM x 25MM so the indicators cam be used to mount the headlamp, & on many bikes A10s, Dommies etc can be used insted of the rear mudguard mounting bolts. They are priced at £29.95 / Pr. Indicator switch £9.95 Flasher unit 6V WRE05 or 12V WRE06 £7.95 The lens is 2 1/2" long and 1 1/8" at its widest Pt.no.INDCADJ + 6V OR 12V |
 |
|
Spare bulbs 6V Pt.no. 307 £1.50. 12V 382/1 £1.00 The black/white wire is earth |
All indicators are supplied with 12V bulbs fitted, if ordering 6V
indicators the 6V bulbs are supplied seperately
|
|
|

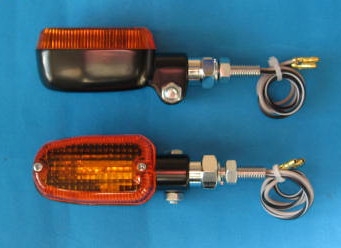

The Universal indicators are also available in black with chrome mountings Pt.no INDUADJBLK + 6V or 12V They are priced at £29.95 / Pr. Indicator switch £9.95 Pt.no. IND694997 Flasher unit £7.95 Pt.no. 6V WRE05 or 12V WRE06 The lens is 2 1/2" long and 1 1/8" at its widest The thread is M8 & 25MM long & comes with a locknut. |
 |
|
THE FULL SET INC. WIRING DIAGRAM. 4 x Universal Ind., 1 x flasher unit, 1 x handlebar switch + wiring diag. £79.00 + P&P Pt.nos. INDUNIKITC Chrome or INDUNIKITB black + 6V or 12V
|
 |
 |
 |

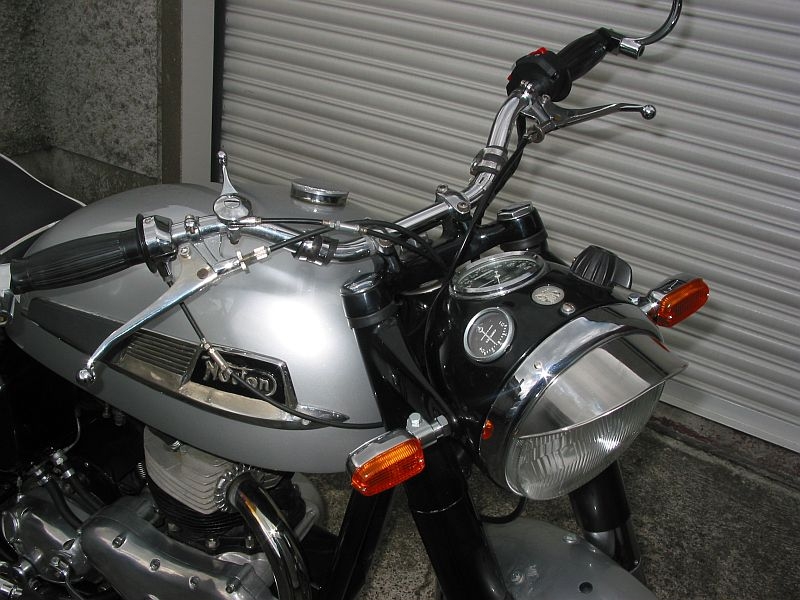

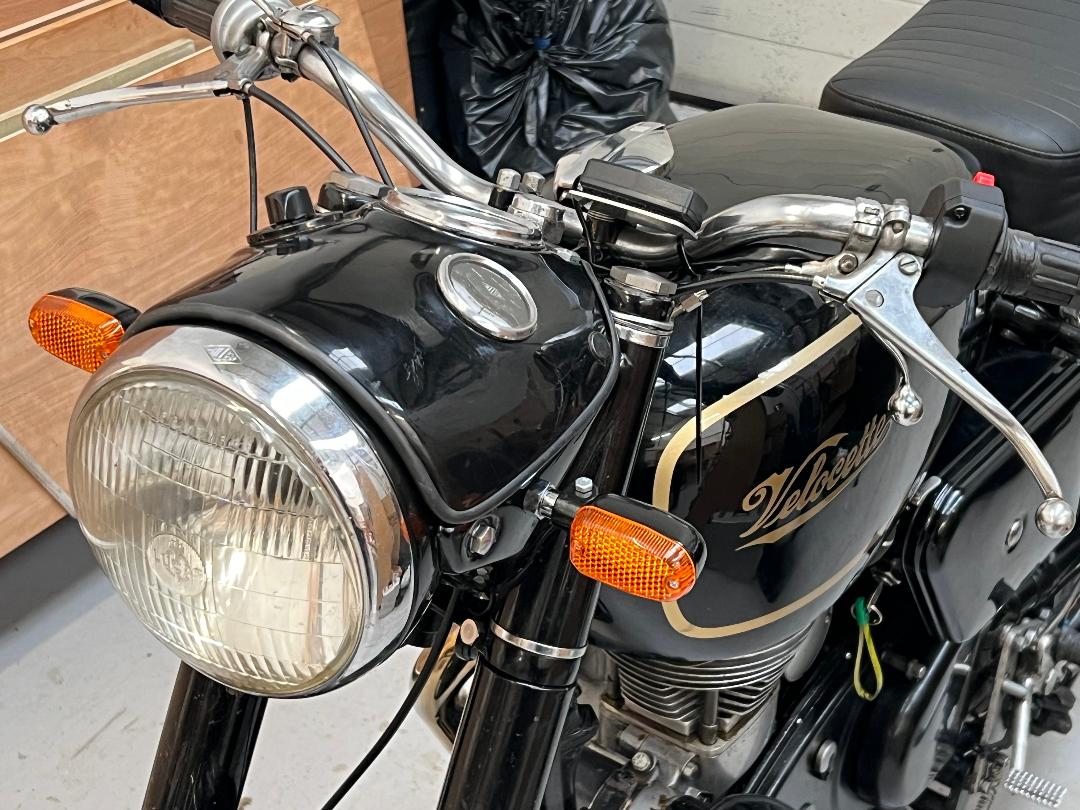

| Universal indicators and the compact handlebar switch (see below) fitted to customers 650SS & Velo |
|
All
indicators are supplied with 12V bulbs fitted, if ordering 6V indicators
the bulbs are supplied seperately
|
TRADITIONAL ROUND INDICATORS
 |

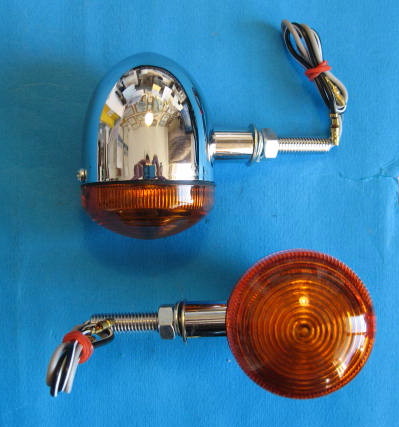

Good quality metal bodied indicators, 6V & 12V these feature a rubber seal between the body & lens to keep moisture out. The M8 mounting thread is over 30MM long so can be used to mount the headlamp at the front & mudguard at the rear. 49MM dia. & 65MM long. Don't look out of place on Austin 7s etc. & can be supplied with a panel mounting toggle switch. Pt.nos. INDCBU 6V or INDCBU 12V £29.95 PER PAIR On installation the black/white wire is earth Spare bulbs 6V Pt.no. 307 £1.50. 12V 382/1 £1.00 each |
|
THE FULL KIT INC. WIRING DIAGRAM. 4 x indicators, 1 x flasher unit, 1 x handlebar switch £79.00 + P&P Pt.nos. INDCBUCKIT C 6V or 12V
|
|
|

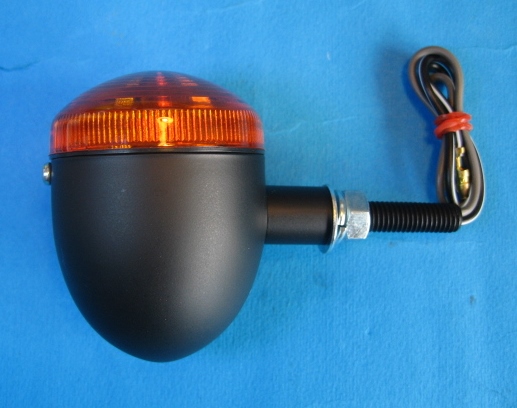

Black finish metal bodied indicators. 6V & 12V Pt.nos. INDC015 6V or INDC015 12V £29.95 PER PAIR 49MM dia. & 65MM long On installation the black/white wire is earth Spare bulbs 6V Pt.no. 307 £1.50. 12V 382/1 £1.00 each |
|
THE FULL KIT INC. WIRING DIAGRAM. 4 x indicators., 1 x flasher unit, 1 x handlebar switch £79.00 + P&P Pt.nos. INDC015KIT B 6V or 12V |
|
All
indicators are supplied with 12V bulbs fitted, if ordering 6V indicators
the bulbs are supplied seperately
|
GENUINE LUCAS INDICATORS
 |

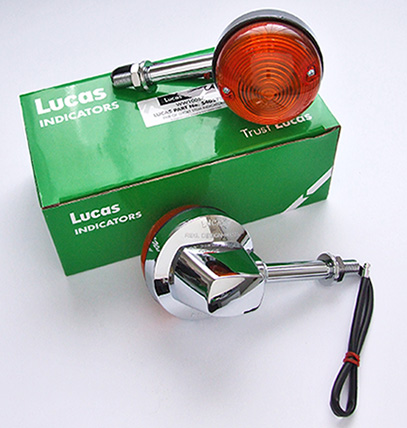

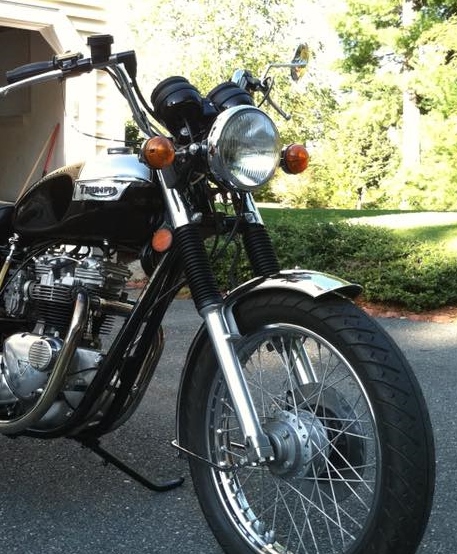

As fitted to Norton/BSA/Triumphs 1971 on, these have the Lucas and SAE part numbers as the originals Long 5.0" Pt.no. IND10151 £44.95/PR. Short 3.0" Pt.no. IND10057 £44.95/PR. ONLY SOLD IN PAIRS St./St. Locknuts to suit £1.00 ea. Pt.no INDLN |
|
 |

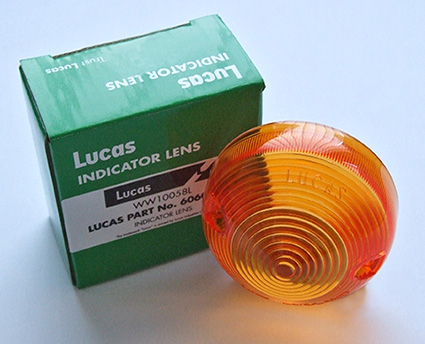

Genuine Lucas spare lens with all the correct Lucas part nos. etc. Our Pt.no. IND10058L £4.95 each These also fit the pattern Lucas indicators |
|
All
indicators are supplied with 12V bulbs fitted, if ordering 6V indicators
the bulbs are supplied seperately
|
LUCAS PATTERN INDICATORS
|

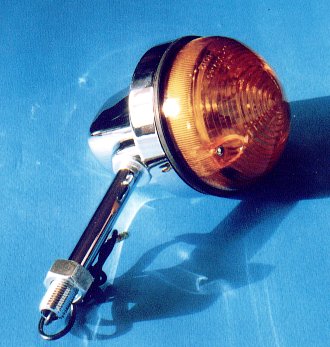

These are reproductions of the Lucas indicators fitted to 1970s BSA, Triumph and Nortons. They are 2 5/8" in dia. The mounting thread as the originals are 7/16 UNF These are £11.95 each, £23.90 / pair. 3.0" Stalks Pt.no IND10170 + 6V or 12V 5.0" Stalks Pt.no. IND10171 + 6V or 12V Indicator switch £9.95 Pt.no IND694997 Flasher unit £7.95 Pt.no. WRE05 6V or WRE06 12V Spare bulbs 6V Pt.no. 311 £1.50. 12V 382 £1.00 each St./St. Locknuts to suit £1.00 ea. Pt.no INDLN |
|
4 x indicators., 1 x
flasher unit, 1 x handlebar switch + wiring diag. £59.90 Pt.no.
INDLU30 or INDLU50 + 6V or 12V
|
|
All
indicators are supplied with 12V bulbs fitted, if ordering 6V indicators
the bulbs are supplied seperately
|

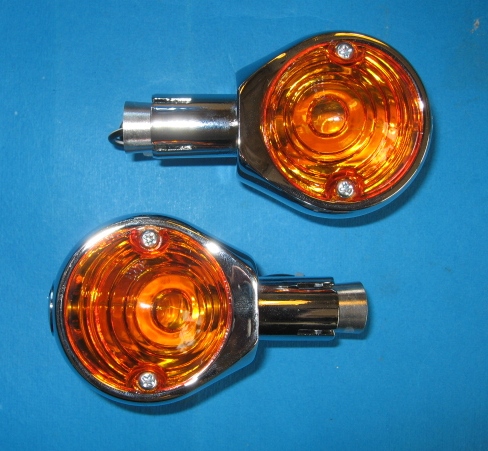

BAR END INDICATORS
 |

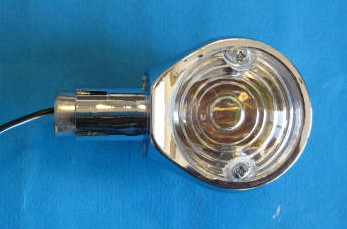

Can be fitted to any bike without ruining the appearance Particularly suited to classics, these are reproductions of the Hella units fitted to 1960s BMWs and the Norton Electra. 12V only Pt.no. INDCB22 12V £34.95 / pair Indicator switch £8.95 Pt.no IND694997 Flasher unit £5.95 Pt.nos. WRE06
|
|
12V set: 2 x Bar End Indicators, 1 x flasher unit, 1 x handlebar switch + wiring diag. £51.85 Pt.no.INDBAR12V |
|
Spare
bulbs 12V Pt.no. 273 £1.50 each. 6V Pt.no. 253 £1.50
each
|
Click here for indicator
wiring diagram

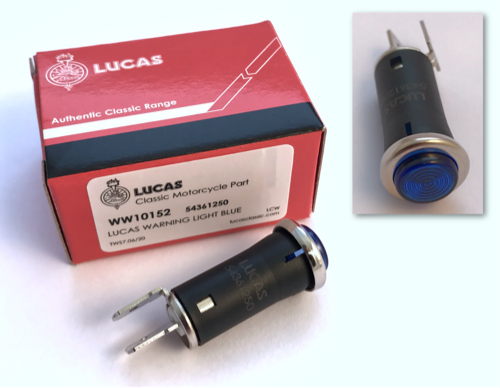

Genuine Lucas warning lights
Fitted with bulbs 6V or 12V, often supplied without bulbs elsewhere
 |
 |
|
||||||||||
| £5.95 each. |
|
1/2" mounting
hole required.
|

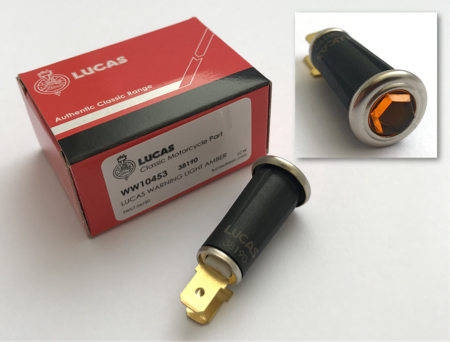

Genuine Lucas Diamond warning lights
 |
 |
|
||||||||
|
1/2" mounting
hole required.
|
£8.95 each. |
FLASHER UNITS, LED & CONVENTIONAL
|
12V LED compatible Flasher unit Pt.no. WRELED01 2 pin £9.95 Pt.no. WRELED02 3 pin £9.95
|
 |
3 Pin connections: B= Bulbs, L= Live & E= Earth. For pos. earth swap B & L |
| 10W max. load so LEDs only. If you want one LED & one 21W bulb per side the WRE06 below will work |
|
Genuine Lucas LED compatible 12V motorcycle flasher unit Adjustable flash rate Suitable for both negative and positive ground systems Can also be used with conventional bulbs Pt.no. IND10059LED £15.95
|
 |
For negative ground connection - terminal B to live, terminal L to bulbs For positive ground connection - terminal B to bulbs, terminal L to live |
CONVENTIONAL FLASHER UNIT
.jpg) |

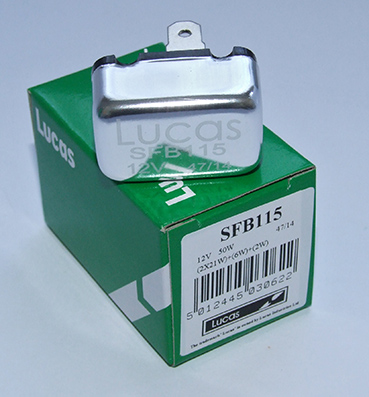

Genuine Lucas flasher unit 35048 as fitted to Triumph, BSA & Norton from the 1970s Pt.no. IND10059L £9.95 |
 |

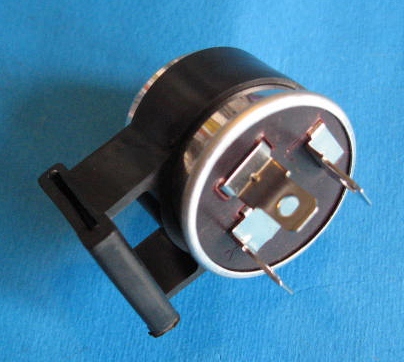

This flasher unit is available in either 6V or 12V. It will operate 2 x 9W to 2 x 23W bulbs. It is a 3 pin device, if you want a 2 pin it will work, just don't use the centre terminal. It is very forgiving of a low battery Voltage and will still flash when most flasher units just leave the indicators on permenantly. Comes with a wiring diagram. 34MM dia (+ rubber mount) x 18MM (+ terminals) standard 1/4" terminals £7.95 + £3.95 P&P Pt.nos. WRE05 6V or WRE06 12V |
|
 |

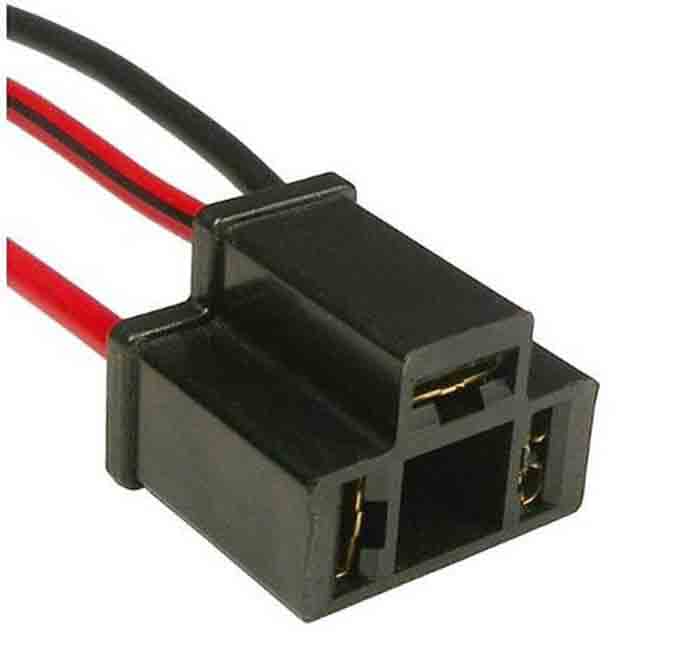

These sockets suit the WRE05 & WRE06 above Pt.no. HL13125 £3.50 |
Click here for indicator
wiring diagram
INDICATOR SWITCHES
 |
Indicator switch 3 3 position indicator switch is for handlebar mounting and features a 'centre-off' position. Simple & reliable. £11.95 Pt.no IND694997 |
 |
Indicator switch 4 Switch similar to the one above but better quality with a more substantial clamp arrangement £16.95 Pt.no. Pt.no. IND15434
|
|
Choosing this switch will
add £8.00 to the cost of any of the above indicator kits
|
 |

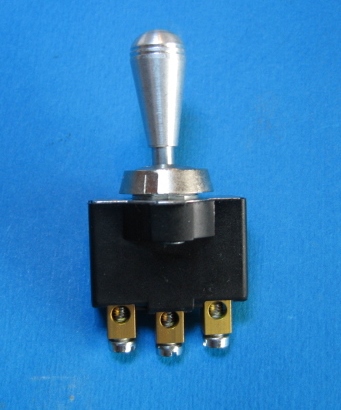

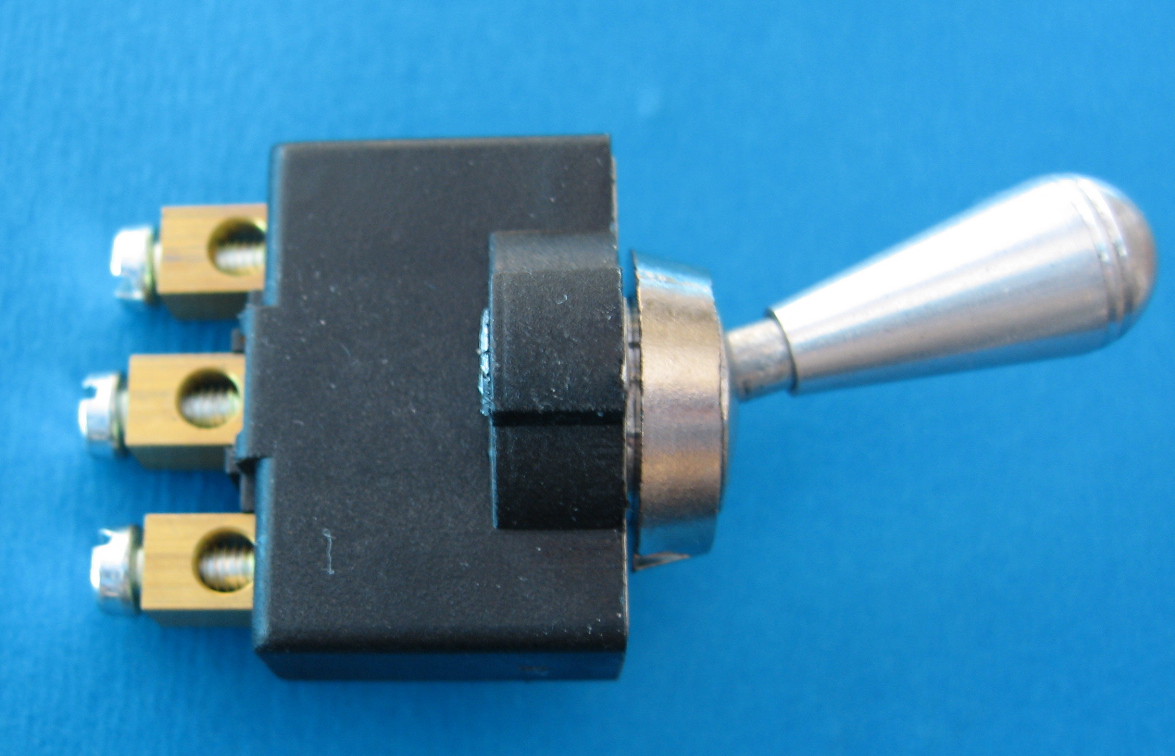

Car indicator switch Unobtrusive 3 position switch, for panel mounting £12.95 Pt.no. SW81702 |
HANDLEBAR MOUNTED LIGHT/INDICATOR SWITCHES
|
|

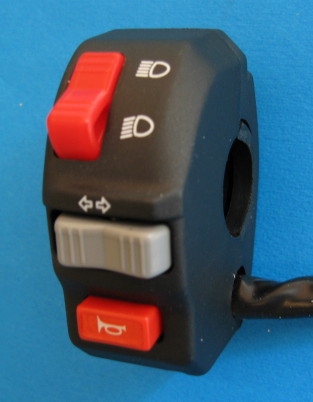

Compact Multipurpose handlebar switch No. 1 Pt.no. IND694600 Just over 1 1/8"" wide (30MM) Clamps around the standard 7/8" handlebar Headlight: Dip, Main Indicators. Horn. £39.95 The connecting wires are 550MM long Click here |
| This switch is ideal when adding indicators to a classic bike, needing no wiring changes to the light switch, only removal of the existing dip switch/horn button and wiring in the indicators. Existing levers can be used. |
|
Right handlebar switch No. 2 Pt.no. IND694605 Just over 1 1/8"" wide (30MM) Matching right hand switch: Engine run/off Lights on/off Electric start or flasher. £39.95 |
 |
|
