Replica Girling
Replica Girling
|
Paypal users add £1.00 for orders over £20.00 |
Rear shock absorbers |
How to order
|

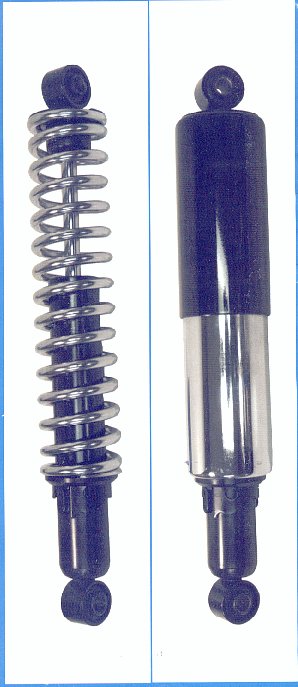

These
are replicas of the original Girling units fitted to many British bikes
from the early 1950s to the 1970s.
|
|
A wide range is available to suit most BSA, Norton,Triumph & Ariels etc. They are stocked in 11.9",12.4", 12.9" and 13.4" All length shocks have the ramp type pre-load adjustment as per original Girlings. The dia. of the upper shrouds is 60MM x 125MM long. The opening in the top for the mounting clip is 38MM. On chrome spring models the O.D. of the spring is 50 MM (2.0") Most lengths are offered with chromed springs or shrouded Chrome spring shocks cost £94.95 pr + £9.95 P&P UK Shrouded shocks cost £99.95 pr + £9.95 P&P UK E mail for overseas carriage costs The steel mounting sleeve is rubber bushed and accepts a mounting bolt sized as per the originals. There is a 12 month guarantee with this product. I've still never had to replace a set, these are a quality product. I've listed all the rear suspension parts that I stock, so if you don't see it I can't supply it. No, not even that odd part from your Dot trials bike that you can't get anywhere. |
 |
|

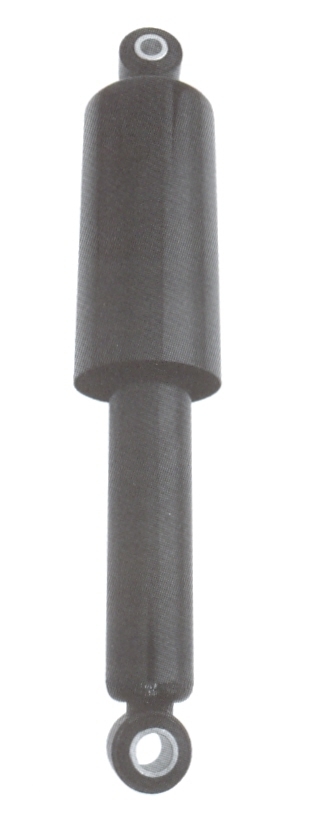

Lightweight shocks Bantam, Cub, Francis Barnet, Excelsior etc. See complete list below Pt.no. S60094 £74.95 + £6.50 P&P UK |
 |

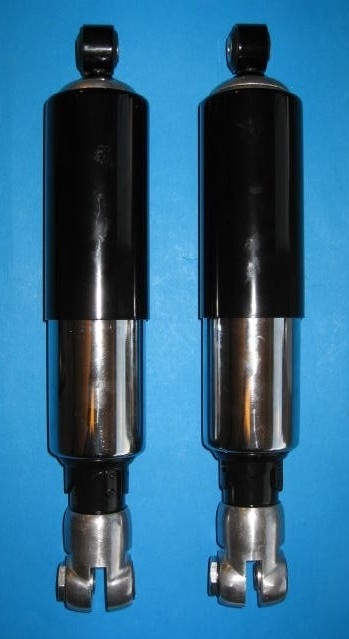

AMC type shocks with the aluminium clevis fastning on the bottom mount supplied, and the split aluminium collets securing the top shroud as per the originals. Only available in 12.2" centres as original Pt.no.S60092 £149.95 + £6.50 P&P UK Out of stock
|
 |
Shock absorber parts
|

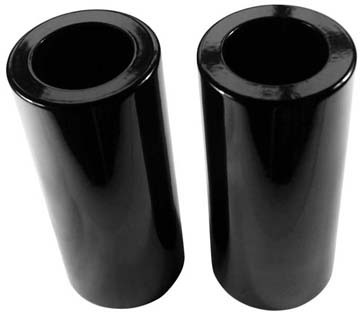

Powder coated top covers Pt.no. SH33355 £19.95/pr |
 |
Length 125MM Dia. 58MM The hole in the top 38MM dia. |
||
|
Chrome plated lower covers Pt.no. SH33356 £19.95/pr |
 |
Dia. at bulge at the top 55.5MM Dia. of hole in the bottom 37MM |
 |
Girling type bonded shock bushes OUT OF STOCK ID : 3/8" (10mm) OD : 7/8" (22mm) Width :24.4mm Pt.no. SH33358 £7.50 each |
| AMC |
| Pt.no. | Model | Year | Length inches | Spring Weight LB. | Style | Top bush inch | Lower bush inch |
| S60092 | Heavyweight twins & singles, With alloy clevis | 1967-62 | 12.2 | 110 | Shrouded | 3/8 | N/A |
| S60096 | Model 16 / G3 | 1962 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60096 | Model 18/ G80 | 1962 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60096 | Model 20 / G9 | 1962 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60096 | Model 31/ G12 | 1962 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60083 | Model 16 / G3 | 1963 on | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60090 | Model 18CS/G80CS | 1962 | 12.4 | 145 | Shrouded | 3/8 | 3/8 |
| S60083 | Model 18 / G80 | 1963 on | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60083 | Model 31/31CSR G12/G12CSR | 1963 on | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60085 | G15CS | 1965 on | 13.4 | 110 | Shrouded | 3/8 | 3/8 |
| S60083 | G12CSR | 1965 on | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60090 | Model 31CSR / G12CSR | 1962 | 12.4 | 145 | Shrouded | 3/8 | 3/8 |
| Ariel |
| S60096 | NH/VH Hunter single | 1952 - 59 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60096 | KH Hunter twin | 1952 - 55 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60096 | KH Fieldmaster twin | 1956 - 57 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60096 | VB sidevalve | 1952 - 59 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60096 | FH Huntmaster twin | 1952 - 59 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| BSA |
| S60094 | Bantam | 1956 - 71 | 11.4 | 100 | Shrouded | 3/8 | 1/2 |
| S60094 | C12 (10.9" std. length not available) | 1956 - 58 | 11.4 | 100 | Shrouded | 3/8 | 1/2 |
| S60095 | C15 star | 1958 - 67 | 11.9 | 90 | Shrouded | 3/8 | 1/2 |
| S60077 | C15 star (Exposed spring option) | 1958 - 67 | 11.9 | 90 | Chrome springs | 3/8 | 1/2 |
| S60056 | C25 / B25 / B44 | 1967 - 69 | 12.9 | 100 | Chrome springs | 3/8 | 1/2 |
| S60095 | B40 | 1962 - 67 | 11.9 | 90 | Shrouded | 3/8 | 1/2 |
| S60077 | B40 (Exposed spring option) | 1962 - 67 | 11.9 | 90 | Chrome springs | 3/8 | 1/2 |
| S60056 | B40 late model & WD | 1967 on | 12.9 | 100 | Chrome springs | 3/8 | 1/2 |
| S60083 | B31 / B32 | 1954 - 58 | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60084 | B31 / B32 (Exposed spring option) | 1954 - 58 | 12.9 | 110 | Chrome springs | 3/8 | 3/8 |
| S60083 | A7 / A10 | 1954 - 62 | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60084 | A7 / A10 (Exposed spring option) | 1954 - 58 | 12.9 | 110 | Chrome springs | 3/8 | 3/8 |
| S60085 | A 50 | 1963 - 69 | 13.4 | 110 | Shrouded | 3/8 | 3/8 |
| S60093 | A 50 (Exposed spring option) | 1963 - 69 | 13.4 | 110 | Chrome springs | 3/8 | 3/8 |
| S60098 | A50 | 1970 - 71 | 12.9 | 100 | Chrome Springs | 3/8 | 3/8 |
| S60083 | B33/34 | 1954 - 62 | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60084 | B33/34 (Exposed spring option) | 1954 - 62 | 12.9 | 110 | Chrome Spring | 3/8 | 3/8 |
| S60098 | B50 | 1971 - 72 | 12.9 | 100 | Chrome springs | 3/8 | 3/8 |
| S60085 | A65 | 1962 - 69 | 13.4 | 110 | Shrouded | 3/8 | 3/8 |
| S60093 | A65 (Exposed spring option) | 1962 - 69 | 13.4 | 110 | Chrome Springs | 3/8 | 3/8 |
| S60098 | A65 | 1970 - 71 | 12.9 | 100 | Chrome springs | 3/8 | 3/8 |
| S60079 | A75 Rocket 3 | 1969 - 73 | 13.4 | 126 | Chrome springs | 3/8 | 3/8 |
| Excelsior The shocks listed have pre-load adjusters unlike the originals |
| S60097 | C3 Courier 148CC | 1953 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | R4/R5 Roadmaster 197CC | 1953 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | R6 Roadmaster 197CC | 1953 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | A9 Autocrat 197CC | 1953 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | TT2 / STT2 Talisman 244CC | 1953 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | STT4 Sports twin 244CC | 1953 - 59 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | U9 Universal 147 | 1959 on | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | TT4 Talisman 244CC | 1959 on | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | S8/S9 Talisman 244CC | 1959 on | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| Greeves The shocks listed have pre-load adjusters unlike the originals |
| S60097 | 20R3 / 20D Fleetstar 197 | 1955 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | 20T Trials/ 20S Scrambles | 1955 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | 20D Fleetwing 242 | 1955 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | 25R Sidecar 242 CC | 1955 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | 32D Fleetmaster 322CC | 1955 - 57 | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| Norton |
| S60097 | Jubilee | 1959 0n | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60097 | Navigator | 1959 0n | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60083 | Early Widelines & some Manx | 1950 on | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60099 | Early Widelines & some Manx (exposed spring) | 1950 on | 12.9 | 110 | Chrome spring | 3/8 | 3/8 |
| S60046 | Model 50 Wideline | 1957 - 60 | 12.9 | 110 | Shrouded | 5/16 | 5/16 |
| S60099 | Model 50 Wideline (exposed Spring) | 1957 - 60 | 12.9 | 110 | Chrome springs | 5/16 | 5/16 |
| S60086 | Model 50 Slimline | 1961 on | 11.9 | 110 | Shrouded | 3/8 | 5/16 |
| S60097 | Electra | 1965 on | 11.9 | 90 | Shrouded | 3/8 | 3/8 |
| S60046 | ES2 Wideline | 1957 - 60 | 12.9 | 110 | Shrouded | 5/16 | 5/16 |
| S60099 | ES2 Wideline (Exposed spring) | 1957 - 60 | 12.9 | 110 | Chrome springs | 5/16 | 5/16 |
| S60086 | ES2 Slimline | 1961 on | 11.9 | 110 | Shrouded | 3/8 | 5/16 |
| S60046 | 88 / 99 Dominator | 1957 - 60 | 12.9 | 110 | Shrouded | 5/16 | 5/16 |
| S60099 | 88 / 99 Dominator (Exposed spring) | 1957 - 60 | 12.9 | 110 | Chrome springs | 5/16 | 5/16 |
| S60086 | 88 / 99 / 650SS / Mercury Slimline | 1961 on | 11.9 | 110 | Shrouded | 3/8 | 5/16 |
| S60045 | Slimline (Exposed spring) | 1961 on | 11.9 | 110 | Chrome springs | 3/8 | 5/16 |
| S60045 | Atlas | 1965 on | 11.9 | 110 | Chrome springs | 3/8 | 5/16 |
| S60062 | Commando 750 / 850 | 1968 - 76 | 12.9 | 126 | Chrome springs | 3/8 | 3/8 |
| Triumph |
| S60094 | Tiger Cub (No chrome lower shroud, as Bantam) | 1957 - 68 | 11.4 | 100 | Shrouded | 3/8 | 1/2 |
| S60056 | TR25W Trophy 250 | 1968 - 70 | 12.9 | 100 | Chrome springs | 3/8 | 1/2 |
| S60088 | 3TA / T21 / T90 | 1957 - 69 | 11.9 | 135 | Shrouded | 3/8 | 3/8 |
| S60087 | 3TA / T21 / T90 (Exposed spring) | 1957 - 69 | 11.9 | 135 | Chrome springs | 3/8 | 3/8 |
| S60096 | 3TA/T21 (Lighter weight spring) | 1957 - 68 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60083 | T100 / TR5 Pre-unit | 1955 - 59 | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60084 | T100 / TR5 Pre-unit (Exposed spring) | 1955 - 59 | 12.9 | 110 | Chrome springs | 3/8 | 3/8 |
| S60088 | 5TA / T100 | 1957 - 68 | 11.9 | 135 | Shrouded | 3/8 | 3/8 |
| S60096 | 5TA / T100 (Lighter weight spring) | 1957 - 68 | 11.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60087 | 5TA / T100 (Exposed spring) | 1957 - 68 | 11.9 | 135 | Chrome springs | 3/8 | 3/8 |
| S60098 | T100R / T100C / TR5 Daytona | 1969 - 74 | 12.9 | 100 | Chrome springs | 3/8 | 3/8 |
| S60089 | T100SS / T11T Daytona / Tiger | 1969 on | 12.4 | 145 | Chrome springs | 3/8 | 3/8 |
| S60083 | T110 / 6T / TR6 Pre-unit | 1955 - 62 | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60084 | T110 / 6T / TR6 Pre-unit (Exposed spring) | 1955 - 62 | 12.9 | 110 | Chrome springs | 3/8 | 3/8 |
| S60083 | T110 / 6T unit | 1063 - 69 | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60084 | T110 / 6T unit (Exposed spring) | 1063 - 69 | 12.9 | 110 | Chrome springs | 3/8 | 3/8 |
| S60089 | T120 / TR6 unit | 1963 - 69 | 12.4 | 145 | Chrome springs | 3/8 | 3/8 |
| S60090 | T120 / TR6 unit (Shrouded) | 1963 - 69 | 12.4 | 145 | Shrouded | 3/8 | 3/8 |
| S60084 | T120 / TR6 | 1969 - 72 | 12.9 | 110 | Chrome springs | 3/8 | 3/8 |
| S60083 | T120 / TR6 (Shrouded) | 1063 - 69 | 12.9 | 110 | Shrouded | 3/8 | 3/8 |
| S60091 | T140 / TR7 | 1973 - 83 | 12.4 | 100 | Chrome springs | 3/8 | 3/8 |
| S60079 | T150 / T160 | 1969 - 1976 | 13.4 | 126 | Chrome springs | 3/8 | 3/8 |
| S60079 | X75 | 1971-73 | 13.4 | 126 | Chrome springs | 3/8 | 3/8 |
