Modern Lighting for Older Vehicles

Click here for the development history of the quartz halogen bulb

Click here for diagrams of the standard bulb types available

How do I know which headlamp bulb for my old bike

How to order

Quartz Halogen bulbs give approximatly twice the light output of the older Tungsten filament type, as well as a "whiter" light. We stock Quartz Halogen replacement bulbs for most applications on motorbikes and cars. All these bulbs fit the original holders.



Paypal users add £1.00 for orders over £20.00



Add £1.50 carriage up to £10. £10 - £20 add £2.00,

£20.00 - £50.00 add £3.00 Over £50.00 add £6.00

Overseas bulb & LED orders add £1.00. Other overseas orders E mail for carriage costs.



All these bulbs fit straight into the existing mounting with no modifications or adapters needed.



QUARTZ HALOGEN PILOT / SIDE LIGHTS

Daytime riding lights & indicators

6 & 12V Quartz Halogen pilot light bulb BA9s and BA15s. Bright enough to be noticed without straining your charging circuit. Direct replacement, needs no wiring or switch changes. These replace the bulbs in illustrations 25, 26 & 39 in the diagrams of standard bulbs.

The BA9s is usually found as a pilot light inside a headlamp reflector, whereas the BA15s is often fitted by itself as a side light. Miller headlamps sometimes use the BA15s as a Pilot bulb.

These can also be used for brighter indicators.

The BA9s 6V 10W or 20W and 12V 23W are ideal as daytime running lights.

These will fit British bikes 1920s to date and most other cars and bikes

On older British bikes the pilot bulb is turned off when the headlight is on

On more modern bikes the pilot bulb is not turned off. Because of heat this limits the pilot bulb to 10W.



Click here for diagrams of standard bulb types available



NEW 12V 5W QH Capless ( aka wedge) £3.20 each.

Pt.no B125CAPQH £4.00 each





NEW 6V 35W BA15dQH Parallel pin, twin contact, single filamant. £4.20 each



Cap Type
Voltage
Wattage
Part.no.
Price
Capless
12
5
B125CAPQH
£3.20
BA9s
6
5
B65BA9QH
£4.00
BA9s
6
10
B610BA9QH
£4.00
BA9s
6
20
B620BA9QH
£4.00
BA9s
12
10
B1210BA9QH
£4.00
BA9s
12
23
B1223B9QH
£4.00
BA9s AMBER
12
23
B1223BA9QHA
£4.00
BA15s
6
5
B6BA15QH
£4.00
BA15s
6
10
B610BA15QH
£4.00
BA15s
6
20
B620BA15QH
£4.00
BA15s
12
5
B125BA9QH
£4.00
BA15s
12
10
B1210BA15QH
£4.00
BA15s
12
20
B1220BA15QH
£4.00
BA15d
6
35
B635BA15DQH
£4.00



BAU9s are 9MM bayonet bulbs with the pins staggered at 15%



Cap Type
Voltage
Wattage
Part.no.
Price
BAU9s 6V 10W B610BAU9QH £2.00
BAU9s 6V 20W B620BAU9QH £2.00
BAU9s 12V 6W B126BAU9QH £2.00
BAU9s 12V 10W B1210BAU9QH £2.00



Click here for the diagrams of standard bulbs



QUARTZ HALOGEN STOP/TAIL LAMP BULBS

Powerful quartz halogen bulbs for the standard BAY15d stop/tail lamp. Available in 6V 5/23W and 12V 5/35W these replace the bulbs shown in illustration 24 in the diagram of standard bulbs. They have been long term tested in the Lucas L564 plastic rearlight lens as fitted to British motorbikes from the mid 50s to early 60s and can be seen for miles. These are £9.95 ea.

These fit almost everything with a combined stop/tail bulb, excepting some vintage cars which had parallel pins.

Click here for the diagrams of standard bulbs

Offset pins

Pt.no. 12V B535BAY15QH

Pt.no. 6V B623BAY15QH

NEW CHEAPER Q.H. STOP/TAIL LAMP BULBS

The same bright light but in a slightly longer envelope, making the total length 55MM, std. is 49MM. They will fit into most motorcycle and car rear lights

Only available in 6V at 6/23W and 6V 5/35W they are available for £4.00 each while stocks last. These have the BAY15d base with offset pins.

They can also be used for headlights in vintage cars where the 5W and 6W is the pilot. No part no. In stock

There are no 12V versions of this cheaper version



QUARTZ HALOGEN REPLACEMENT HEADLAMP AND

SPOTLAMP BULBS

We have had specially made powerful Quartz Halogen bulbs with fittings to suit the earlier British Pre-Focus type of headlamp fitted to bikes from post war to the 1970s and cars up until the introduction of the sealed beam unit.

*Amongst orthers these replace 414s and Mazda 457*

The bulbs these replace are shown as illustrations 4 & 12 in the diagram of standard bulbs

Click here for the diagrams of standard bulbs

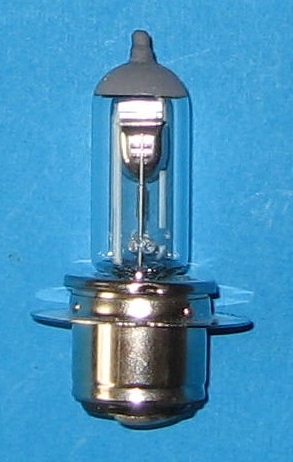

British Pre-Focus

P36d (P22d)



This can be used on a bike with an E3L dynamo converted to 12V, and any bike fitted with a Lucas alternator and will give a very good headlight without putting strain on the system.



Voltage
Wattage
Part.no.
Price
6
25/25
B625BPFQH
£8.25
6
35/35
B635BPFQH
£8.25
12
35/35
B1235BPFQH
£8.25
12
45/40
B1245BPFQH
£8.25
12
60/55
B1260BPFQH
£8.25

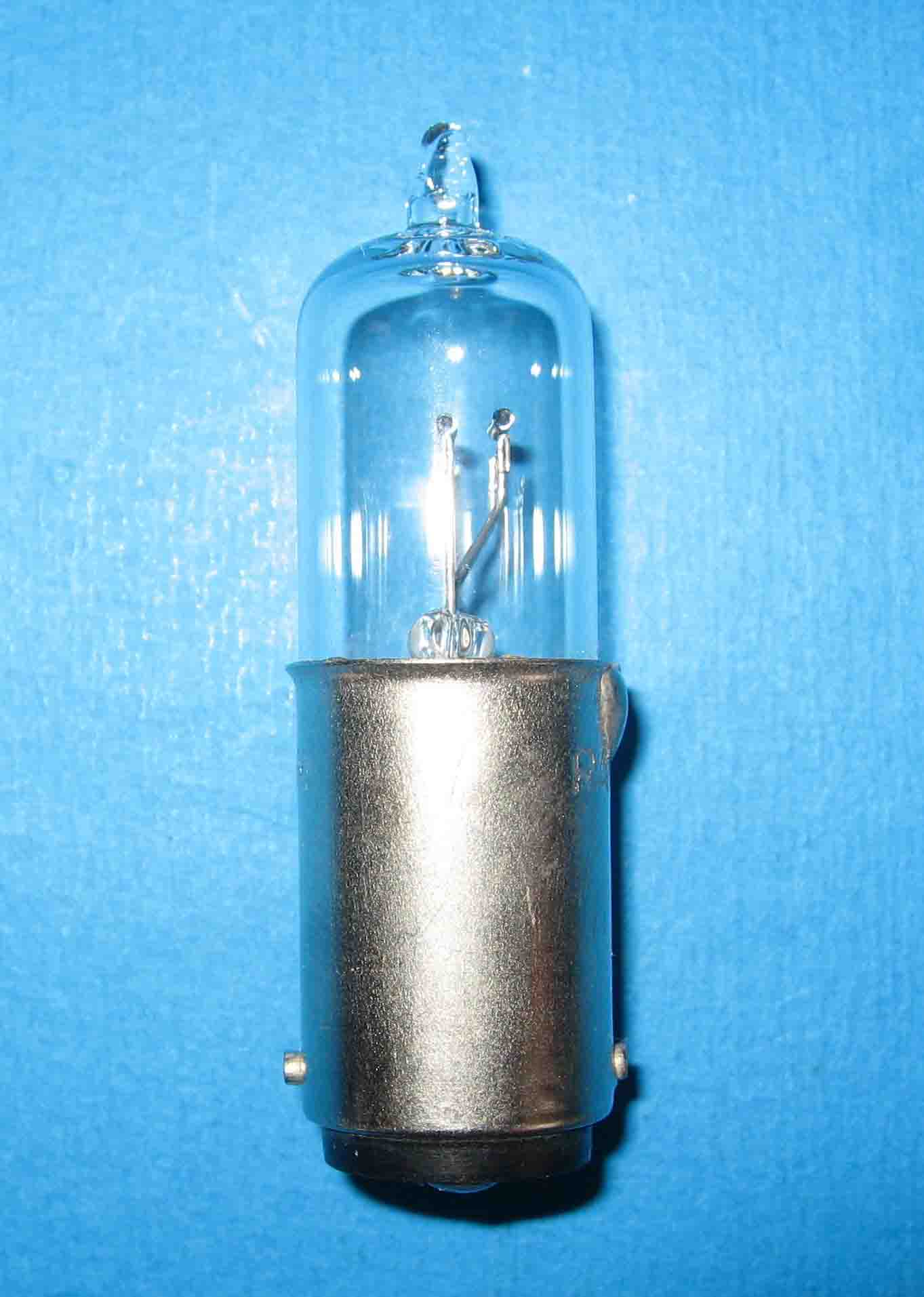

BA15d Bayonet cap replacement bulbs are now available in Quartz Halogen. These fit most British and some American pre 1951 headlights. They are 15MM in dia with a parallel pin bayonet fitting. The bulbs these replace are shown as illustrations 14 & 15 in the diagram of standard bulbs The original bulbs had a much larger glass envelope, quartz halogen bulbs are much smaller.

Fitted to everything British and some American, 1920s to 1950s

6V 25/25W and 35/35W also available with offset pins BAY15d £8.95





Base type
Voltage
Wattage
Part.no.
Price
BA15d
6
25/25
B625BA15QH
£7.95
BA15d
6
35/35
B635BA15QH
£14.95
BAY15d
6
25/25
B625BAY15QH
£7.95
BA15d
12
35/35
B1235BA15QH
£7.95
BA15d
12
45/40
B1245BA15QH
£7.95
BA15s
12 Single filament
50
B1250BA15QH
£9.95
BA15s
12 Single filament
55
B1255BA15QH
£2.50
BA15s
6 Single filament
35
B1235BA15SQH
£12.20



BA20d Bosch type Halogen replacement bulbs are also available. These are 20MM in dia. with pressed out paralell pins. They are available in 6/12V 25/25W at £8.25 & 6/12V 35/35W £8.25 or 12V 60/55W at £8.25 ea. The bulb these replace is shown as illustration 5 in the diagram of standard bulbs.

Everything German and many other european 1960s and some Japanese including the Honda 400 four.



Click here for the diagrams of standard bulbs



Bosch BA20d

Minature Pre-Focus P15D25.1 Single lug. Halogen replacement bulbs are available in 6V 30/30W £12.00,12V 25/25W £8.25 and 12V 35/35W £8.25

The bulb these replace is shown as illustration 19 in the diagram of standard bulbs.

Small Jap bikes

Click here for the diagrams of standard bulbs



Minature Pre-Focus Single lug

Minature Pre-Focus P15D25.3 3 lugs. Halogen replacement bulbs are available in 6V 25/25W £8.25 & 12V & 35/35W £12.50 The bulb these replace is shown as illustration 16 in the diagram of standard bulbs.

Small Jap bikes

Click here for the diagrams of standard bulbs



Minature Pre-Focus 3 lug

American Pre-Focus Halogen replacement bulbs are now only available in 12V 50/50W & 6V 35/35W. The bulb these replace is shown as illustration 17 in the diagram of standard bulbs. £12.50 ea. Out of stock

Also 12V 50W single contact as used in francis searchlights £17.50

Click here for the diagrams of standard bulbs



American Pre-Focus

Marchal BA21d 3 pin Halogen replacement bulbs are available in 6V 35/35W £12.95, and 12V 45/40W £12.95

Fitted to everything French 50s/60s and retrofitted to many English 'classics' in the 60s

Click here for the diagrams of standard bulbs



Marchal



Base type
Voltage
Wattage
Part.no.
Price
BA20D
6
25/25
B625BA20QH
£8.25
BA20D
6
35/35
B635BA20QH
£8.25
BA20D
12
25/25
B1225BA20QH
£8.25
BA20D
12
35/35
B1235BA20QH
£8.25
BA20D
12
60/55
B1260BA20QH
£8.25
P15D25.1
12
25/25
B1225MPF1QH
£8.25
P15D25.1
12
35/35
B1235MPF1QH
£8.25
P15D25.3
6
25/25
B625MPF3QH
£8.25
P15D25.3
12
25/25
B1225MPF3QH
£8.25
P15D25.3
12
35/35
B1235MPF3QH
£8.25
APF
6
35/35
B635APFQH
£12.50
APF
12
50/50
B1250APFQH
£12.50
APFS
12
50
B1250SAPFQH
£12.50
BA21d
6
35/35
B635BA21QH
£12.95
BA21d
12
35/35
B1245BA21QH
£12.95



In the late 1970s Lucas introduced the P36t 463. This was a 'half way house' between the British Pre-Focus bulbs and the later P45 & P43t. These had the British Pre-Focus fitting but with a H4 Halogen envelope in 12V 60/55W and the 3 spade push on connection. These are £9.95 Pt.no B1260463



P36t 463



The BPF type bulbs as above were superceded in many European and British export models with the P45t type base as in this diagram but shown with a Quartz Halogen envelope. Fitted to Kawasaki Z1s and Fintail Mercedes.

Priced at 6V 60/55W, 12V 60/55W & 45/40W £9.95 inc.

The bulb these replace is shown as illustration 3 in the diagram of standard bulbs.

Click here for the diagrams of standard bulbs







P45t

An adapter can be fitted to these headlamps allowing P43t bulbs to be fitted to a P45t headlamp £3.50

Pt.no. BP4543AD







Base type
Voltage
Wattage
Part.no.
Price
P45T
6
60/55
B660P45TQH
£9.95
P45T
12
45/40
B1245P45TQH
£9.95
P45T
12
60/55
B1260P45TQH
£9.95



QUARTZ HALOGEN & XENON H4 TYPE BULBS

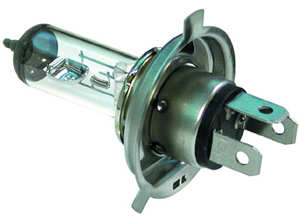

The most common type of headlamp bulb now fitted to cars and bikes is the P43t H4

This is a Quartz halogen bulb, but can be replaced with brighter Xenon filled versions.





The latest high output H4 is the Osram Nightbreaker with a claimed 90% more light which is 10% whiter.

I've put one of these into my Triumph Thunderbird & the difference is very noticeable.

H1 & H4 at £10.00 each £20.00 / pr.





12V 45/45 P43t H4. If your system can't cope with the 60/55W but you think the 35/35W won't be bright enough, we can offer a 45/45W version at £9.95 each.

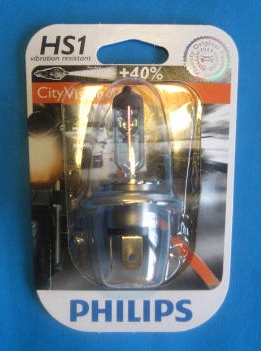

NEW PHILIPS H4 & H7 BULBS DESIGNED ESPECIALLY FOR MOTORCYCLES



  Designed especially to make motorcycles more visable, the new Philips MotoVision bulbs give the rider a clear white light, but the oncoming driver or pedestrian will see an orange tint. This will set the bike apart from the sea of white and blue lights from cars and trucks.


The Motovision bulb also gives 40% more bright white light and a 10-20 M. longer beam than Quartz Halogen bulbs fitted as standard to modern bikes.

H4 60/55 £9.95





NEW 12V 35/35W Motovision H4 £9.95 Pt.no. B1235MOH4

This is the only low Wattage high output H4 available, ideal for smaller bikes with a small generator.

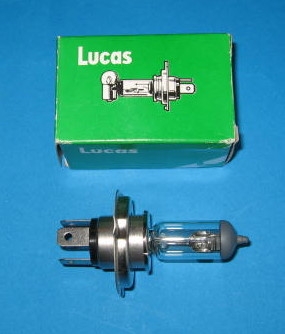

We stock a range of standard Quartz Halogen as well as cheaper Xenon bulbs



Voltage
Wattage
Type
Part no.
Price
6V
35/35W
P43t H4 Halogen
B635P43
£9.95
6V
60/55W
P45t Halogen
B660P45
£9.95
6V
60/55W
P43t H4 Halogen
B660P43
£10.95
12V
35/35W
P43t H4 Philips Motovision brighter
B1235MOH4
£9.95
12V
35/35W
P43t H4 Halogen
B1235P43
£9.95
12V
45/45W
P43t H4 Halogen
B1245P43
£9.95
12V
45/40W
P45t Halogen
B1245P43
£9.95
12V
60/55W
P45t Halogen
B1260P45
£9.95
12V
60/55W
P43t H4 Halogen
B1260P43
£4.50
12V
60/55W
P43t H4 Philips Motovision
B12MOTOH4
£9.95
12V
60/55W
P43t H4 Blue tinted Xenon
B1260P43B
£2.50
12V
60/55W
P43t H4 G/Electric Xenon 60% brighter
B12GEH4
£8.50
12V
60/55W
P43t H4 Philips Xtreme 80% brighter
B12PHH4
£9.95
12V
60/55W
P43t H4 Os. Nightbreaker 90% brighter
P12OSH4
£10.00
12V
100/80W
P43t H4 Halogen
B12100P43
£9.00
12V
130/90W
P43t H4 Halogen
B12130P43
£9.00

SPARE BULB KIT



Contains rear, indicator, 2 x types of pilot and a H4 60/55W headlamp bulb as well as 2 fuses.

Carrying one of these is compulsory in Europe and always a good idea here. It fits under the seat on most bikes.

Special offer

£3.50 + £1.50 P&P Pt.no.BLBKIT01



BATTERY CHARGERS



Selectable 6/12V plug-in socket mounting charger. Especially designed for motorbikes. £12.00 + £2.00 P&P

Pt.no.BCH3PIN

Comes with extra eyeletted leads and quick release plug/socket for easy connection







Spare leads are available allowing more than one bike to be quickly connected to suit both chhargers

£2.95 Pt.no.BCHON01

Now also to suit Optimate & Accumate chargers

BCHON03 £2.95
