FORK UPGRADE & OVERHAUL KIT

& OTHER A10 PARTS

How to order

Paypal users add £1.00 for orders over £20.00



Add £3.50 carriage up to £15. £15 - £25 add £3.95,

£25.00 - £50.00 add £4.95, £50.00 - £100.00 add

£8.25, Over £100.00 add £10.50

Overseas bulb & LED orders add £1.50. Other overseas orders E mail for carriage costs.

This kit has been specially developed for BSA A/B series (Inc. Gold Star) models up to 1967. Not for unit singles

Comprising Eddie Dow style damper units in Dural and St./St. made on a CNC lathe then polished and assembled, multi-rate springs, fork bush and seal set, this kit provides everything needed to transform the front suspension.

Made in England

These damper units give full 2-way damping which reduce dive, pitch and wallowing, particularly at speed. The multi-rate springs combine to tighten up the handling and roadholding, as well as giving a more comfortable ride. New bushes and seals ensure that everything is working properly. For road & track.



Multi-rate fork springs alone 49.00

Pt.no. FMRS

Sprgs. 11" length, 1.84" (46MM) OD & 1.41" (36MM) ID

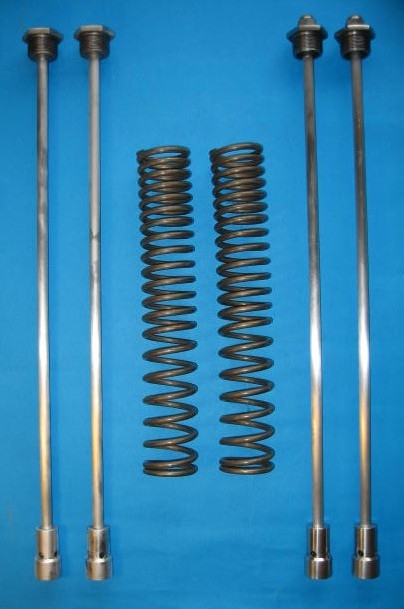

Upgrade kit 1

Consisting of Multi-rate fork springs and the damper rods £118.50 Pt.no. FSD1

Upgrade kit 2

Consisting of Multi-rate fork springs and the damper rods with domed nuts £124.50 Pt.no. FSD2

The Complete Overhaul & Upgrade Kit

As in the picture £172.50 Pt.no. FUOK001

With domed nuts £187.50 Pt.no. FUOK002




When fitting the multi-rate springs, the closer coils should be at the top. Less unsprung weight for 'the racers edge'



Damper Rods with plain topnuts £69.50 Pt.no. FDR1




Made in England

Damper Rods with dome topnuts £75.50 Pt.no. FDR2



The Topnuts are available plain as fitted by BSA or with St./St. dome nuts as per the Eddie Dow damper rods as shown here.



A pair of these rods were used by Rob Stokes on his racing Gold Star.

GSOC & CRMC 350 champ. 2001, 2002, 2007

GSOC & CRMC 500 champ. 2004, 2005, 2007

Damper rods should be used with SAE20 fork oil on the road, std. amount.



Carriage on springs £6.95, Damper rods £6.95, Springs and damper rods £9.95, Upgrade & Overhaul kit £13.95

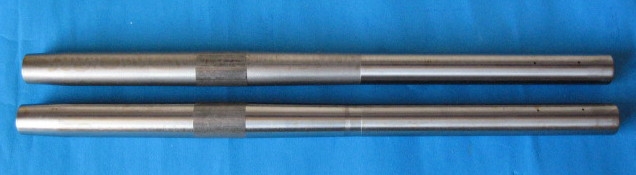

BSA FORK STANCHIONS

Gold Star stanchions fully chromed with seals, & bushes machined to suit £156.00/set + £15.95 P&P Part. no. F42 5027

These also fit the A7/10s, B31/33s, early A65s etc. Overall length without the bottom bush 22.5"

(I know the top bush is fitted the wrong way round in the photo)

Made in England

BSA FORK SEAL HOLDERS

Gold Stars Chrome fork seal holders Pt. no. F26216 £49.95

These also fit the A7/10s, B31/33s, early A65s etc.

Fork Oil Seals Pt.no. F26247 Pr. £6.50

Made in England

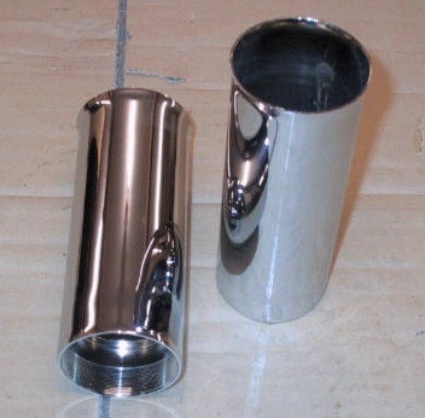

St./St. BSA FORK SEAL HOLDERS

Now also available in St./St.

Pt.no. F26216S

£110.00 per pair

Fork Oil Seals Pt.no. F26247 Pr. £6.50

Made in England

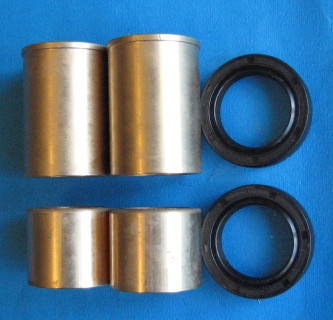

BSA FORK BUSH & SEAL KIT

Top quality fork bush & seal kit.

You can buy cheaper and waste your time but these are the correct size & tolerance and providing that your stanchions are OK will make your forks work like new

Pt.no. FPS147 £64.00

Fits A7/10, B31/33, G/Star, M20/21 etc & A65 up to 1967

Made in England



HEADRACE BEARINGS

Full set of cups, cones & bearings all A/B/M group

A7/10, B31/33, G/Star, M20/21 etc & A65 up to 1967.

Pt.no. F26344 £41.00





STAINLESS STEEL FORK TOP NUTS



Hollow A10 type Pt.no F27252SS £28.95 / pair

Solid type threaded 5/16 BSC (65-69 A65 B25 etc) Pt.no FA65SS £34.80 / pair

A10 type drilled 3/8" central hole for Eddie Dow type damper rod

Pt.no. F27252DH £29.95 /pair

Made in England

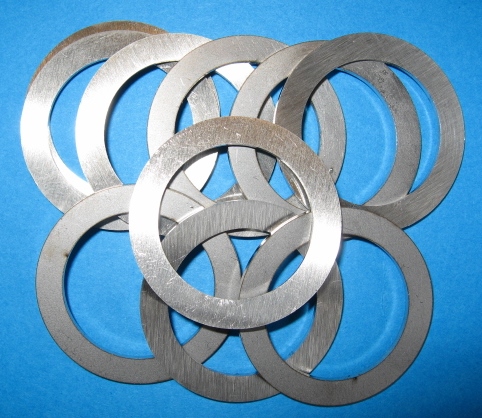

STAINLESS STEEL FORK TOP WASHERS



St./St washers to suit the fork top nuts above & the damper rods, slightly thicker than std. 1.5MM

Pt.no. F27253

£4.95 / pr.

Made in England



GOLDSTAR SPEEDO BRACKETS

Top yolk mounting bracket Pt.no. F29032 £14.50

'Tee' brackets Pt.no. F29034 £9.50 each

To fit Chronometric Speedo

These fit the A10/M21/B33 width yolks, but I've seen them used as a basis for clock mountings on a Norton cafe racer.





Click here for Girling pattern shocks

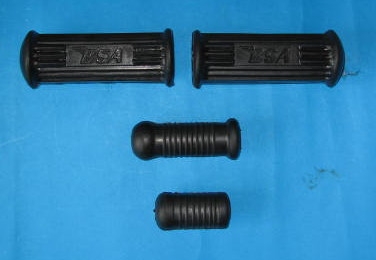

RUBBER GOODS



BSA A10 footrest rubbers £6.25/pr. Pt. no. FA10/27288

A10 Pillion footrest rubbers (not shown) £6.25 / pr.

Pt. no. FA10/71028

A10 Kickstart rubber £3.75

Part. no. FA10/71050

A10 gearchange rubber £3.75

Part. no. FA10/71006

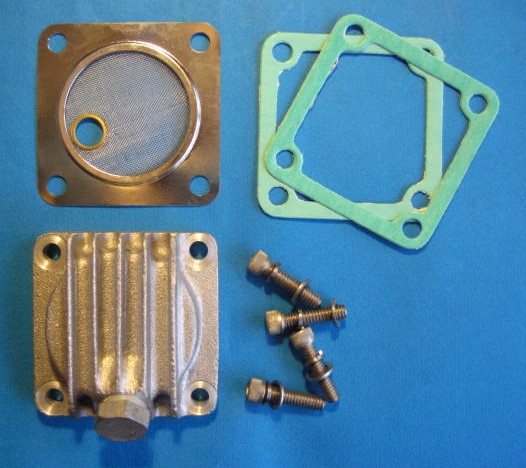

BSA MAGNETIC SUMP PLATE & ST./ST. STRAINER KIT A7/10, B25/44, A50/65



BSA sump plate kit comprising a cast & machined aluminium housing, a magnetic sump plug, St./St. gauze strainer, gaskets & St./St. caphead screws & washers.

This is a very good addition to the lubrication system of the BSA twins using a magnet to attract microscopic ferrous particles that otherwise circulate in the oil causing wear.

This is made from a finned aluminium casting as the rough surface & the fins helps to cool the oil as it passes over.

The addition of a sump plug means that the oil can be easily & quickly drained after the bike has been left standing for some time & has drained into the sump

Also fits A50/A65s B25/44s & C15Gs

£39.95 Pt.no. A10SPK

The parts are available seperately:

Finned ally. sump plate Pt.no. A1061221 £27.95 Also fits A50/A65s B25/44s

St./St. sumplate filter for BSA A7/10, A50/65 Pt.no. A1097058 £9.50



A sump plate milled from solid is also now available Pt.no. A1061221B £35.95

This can be supplied with the filter, gaskets & St./St bolts & washers as above

Pt.no. A10SPKB £47.95



BSA A7/A10 Air Filter

For swinging arm A7 & A10, this is a good quality pattern air filter assy. complete with element.

BSA no. 42-4582

Pt.no. A1090637

£44.95





A7/A10 Rocker feed (Eddie Dow replica)

A7/A10 rocker feed, machined from solid aluminium. Based on the Eddie Dow RGS version of the 1960s

Pt.no. A1027248B

£34.95





A7/A10 Armoured Oil Feed Pipes



Armoured Oil Pipes as original A7/A10 BSA no. 428346/7 Good quality

Pt.no. A1027551

£42.95



BSA Numberplate Brackets

BSA Boxed Type Rear number plate with Reflector Provision. Fits A10 etc.

Supplied in Gloss black finish

Pt.no. NP35045 £43.75

  .

BSA Open Type rear number plate With Reflector Provision.

Supplied in Gloss black finish

Pt.no. NP35048 £43.75



Universal Front numberplate

Pt.no. NP35052

£11.95



BSA A7/10 Engine sprockets

Teeth BSA Pt.no. Our Pt.no.
17 65-2537 SP61066
18T (A7std)

67-1132

SP61067
19T

45-2776

SP61068
20T 65-2538 SP61069
21T (A10std) 67-1133 SP61023
22T 45-2774 SP61070
23T 65-2541 SP61024
24T 452775 SP61071
All priced at £24.95



BSA A7/10 S/Arm battery strap set



Complete battery strap set for the swinging arm BSA A7/A10.

This accommodates the original battery or the dummy battery case see Motorcycle Batteries & chargers

Hooks onto battery tray below

Pt.no. A10/27567

£19.95

Swinging arm A7/10 battery tray

Pt.no. A10/61056

£21.95



Pillion footrests



Swinging arm pillion footrests (pr.)

Very similar to Swinging arm A7/A10

These have a long 3/8" dia. mounting so can be used on many other models

Pt.no. A10/70004

£22.95
