Classic lighting

Many of these parts are suitable for older cars

How to order



Add £4.95 carriage up to £25.00

£25.00 - £50.00 add £5.95, £50.00 - £100.00 add

£7.95, Over £100.00 add £12.95

If in doubt E mail for a price norbsa02@aol.com

Overseas bulb & LED orders add £5.00. Overseas orders for other products E mail for carriage costs.

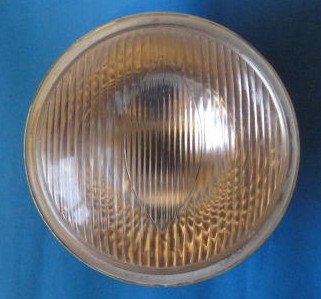

HEADLIGHTS

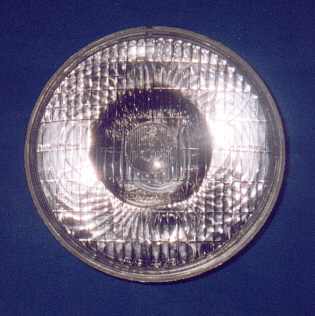

GENUINE LUCAS

700 Series

British Pre-Focus 1950s/60s

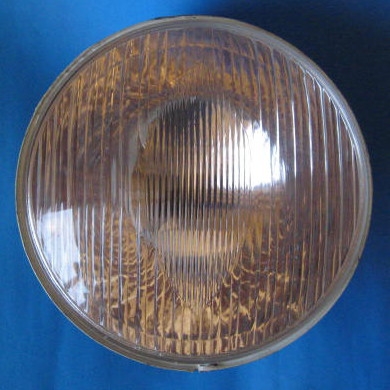

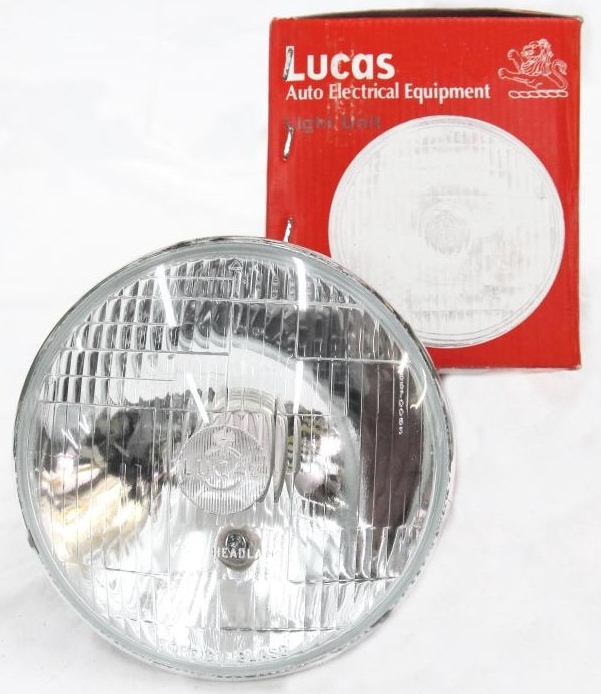

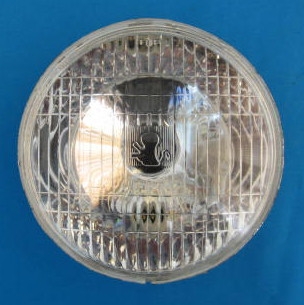

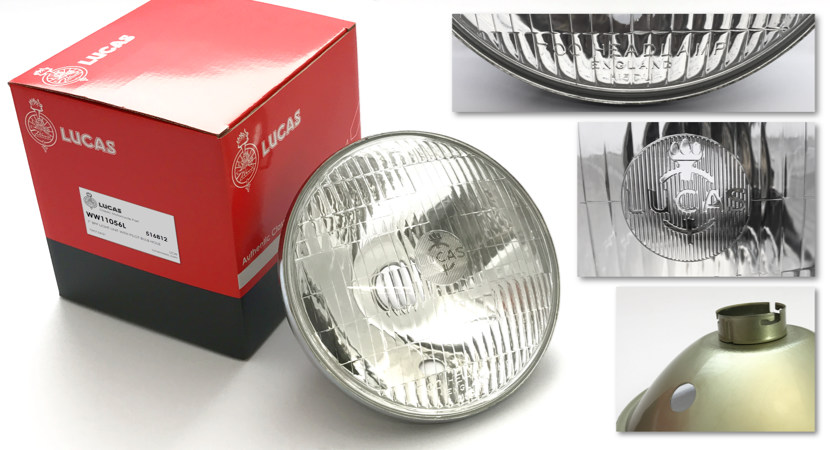

7 INCH HEADLIGHT UNITS Pt.no. HL11056



The part of the lens which protrudes through the rim is 169MM



Right Hand Drive (UK) only



With no bulbholders these cost £44.95



Back in stock



Also without a pilot bulbholder hole Pt.no. HL11051 £44.95



Headlight without pilot bulb/holder aperture Pt.no. HL11051 £44.95
These are a new version of the Lucas 700 series headlamp made on new tooling & are superb quality. The bottom of the lens reads '700 HEADLAMP ENGLAND' NB there are still poor quality Indian made versions available marked 'Foreign glass'



BULBHOLDERS TO SUIT
Pilot bulbholder Pt.no. HL13121 £4.95

Genuine Lucas pilot bulbholder Pt.no. HL13124 £12.95 Headlight bulbholder Pt.no. HL13120 £7.95 Genuine Lucas headlight bulbholder Pt.no. HL13120L £11.95



SPECIAL OFFER

Supplied with bulb holders and Quartz Halogen pilot and headlight bulbs in 6V 25/25W, 35/35W or 12V 35/35W, 45/40W or 60/55W £59.95 (Parts bought seperately £68.85)

6V/12V 10W QH Pilot bulb

Pt.no. HLBPFOFF & state which headlight bulb you require

See also Special Offer headlights with LEDs supplied

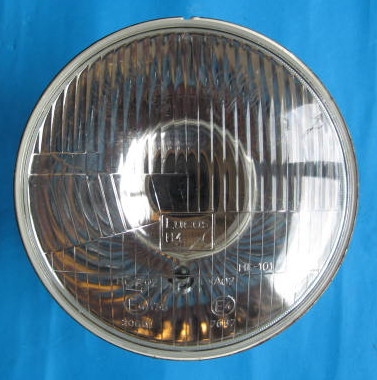

GENUINE LUCAS

P43t H4 1970s on

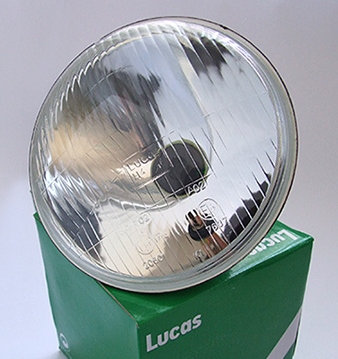

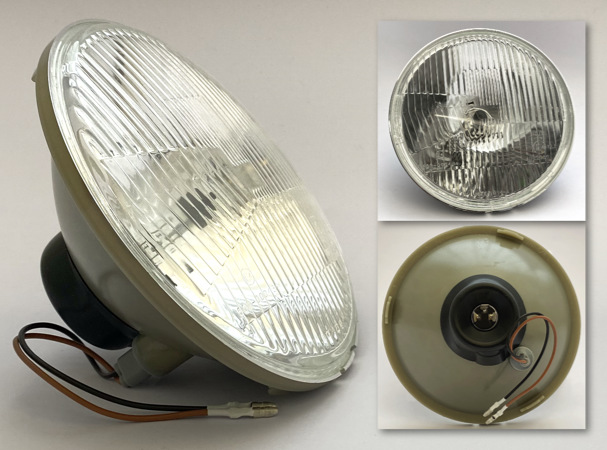

7 INCH H4 HEADLIGHT Pt.no. HLUC383



LAST FEW LEFT, WE'RE NOT SURE WHEN OR IF MORE WILL BE AVAILABLE.



The part of the lens which protrudes through the rim is 169MM

These have the same domed glass as the British Pre-Focus above but with a different pattern & take the current P43t H4 headlamp bulbs & give a much better beam pattern.

Lucas H4 h/lamps are 'E' marked and right hand drive

This fits the Lucas flatback headlamp shell 1971 Tri/BSA

Pt.no. HLUC383

With pilot & headlamp bulb holders these cost £49.95

SPECIAL OFFER 1

Supplied with bulb holders and Quartz Halogen pilot and headlight bulbs in 12V white or yellow 60/55W Pt.no. HLUC12VOFF & state which headlight bulb you require

£59.95





NEW SPECIAL OFFER 2

'DAYLIGHTER'

All our H4 headlights can now be supplied with our 'Daylighter' 12V LED bulbs.

Pt.no. H4LEDLUC4K £87.95

Pt.no. H4LEDLUC5K £92.90





The light is 'whiter' & brighter than a Std. H4 bulb, but more importantly, the beam pattern is correct.

The LEDs are in the same position as the filaments on a std. H4. This ensures a good beam pattern & is often not the case. I have tested many H4 LEDs but have waited until I found a good one before I started selling them. There are plenty of duds out there.

In Lucas & Wipac motorcycle headlights the dip beam is just the same & on main beam it is wider & brighter.

If we say that the light output of a normal H4 is 60/55W, then these are about 70/60, but they only draw 25W from your bikes power supply not 60W

On a total loss system you will still get a good light until the battery is almost dead.

Our 4000LM H4 LED is shown above but these headlights are also available with the 5000LM version

Click here for other LED headlight bulbs & other H4 special offers.

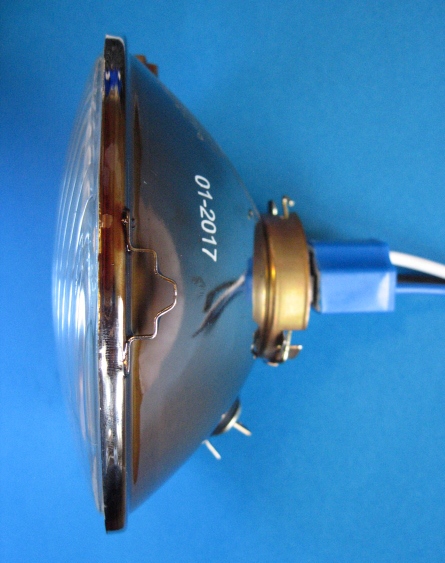

Shallow Wipac 7.0" H4 headlight



These are superb quality headlamps, British made on new tooling for 2020

They are the same diameter as the Lucas headlights above but the reflector is 12MM shallower so are easier to fit into Lucas flat backed headlamp shells & bikes with the speedo in the headlight. I use one in my A10, the bulbholder on the Lucas headlamp fowls the speedo cable.

They also allow more room for the heatsink on some LED H4 bulbs

The part of the lens which protrudes through the rim is 169MM

All our H4 headamps are 'E' marked and left hand drive or right hand drive

Pt.no. HLW4700 £39.95

Also available with no pilot light Pt.no. HLW4696 £39.95

LHD for Europe/USA Pt.no. HLW4701 Ask for price.

SPECIAL OFFERS with bulbs 1 & 2 as Lucas but £5.00 less





Made in England

All the 7.0" H4 headlights above fit into a rim opening of 169 MM dia. & come with pilot bulbholders where applicable.

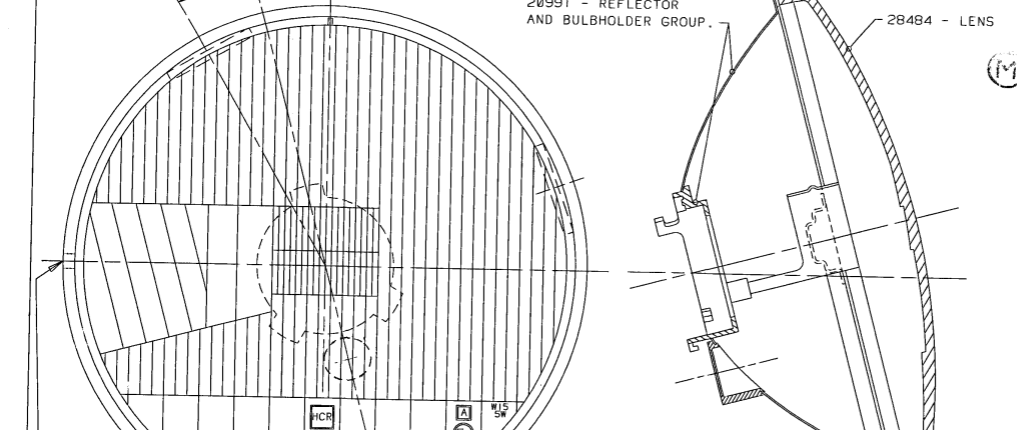

If the Wipac unit is laid face down & a steel rule is laid across where the bulb locates, the dimension between where the headlight locates into the rim & the rule is 59MM, the dome of the glass is 20MM.

Wipac H4
Lucas H4


H4 socket connections.

Looking at the open end.

Right is earth, Left is Main & Centre is Dip



6 1/2" H4 HEADLIGHT



This is a 6 1/2" H4 replacement headlight as used on many Jap bikes in the 70s. Also the 6 1/2" Miller fitted to Series C Vincents & Velos allowing the fitting of H4 headlamp bulbs including the LED Daylighter.

The glass is seperate, sealed by a rubber gasket & held in place by the 'W' clips, so your old glass can be used (Max. dia. 164MM) if required. Comes with the H4 socket & pilot bulb/holder.

Pt.no. HL375537 £34.95 Also fits Honda 250/400N 79-85 & 750F/900F 79-86
SPECIAL OFFER 6 1/2" Headlamp + Osram/Lucas 60/55W H4 bulb + bulbholders £42.90
SPECIAL OFFER 6 1/2" Headlamp + Daylighter H4 LED6V + bulbholders Pt.no. HL375537.6V £67.90
SPECIAL OFFER 6 1/2" Headlamp + Daylighter H4 LED4K + bulbholders Pt.no. HL375537.4K £73.95

SPECIAL OFFER 6 1/2" Headlamp + Daylighter H4 LED5K + bulbholders Pt.no. HL375537.5K £77.95

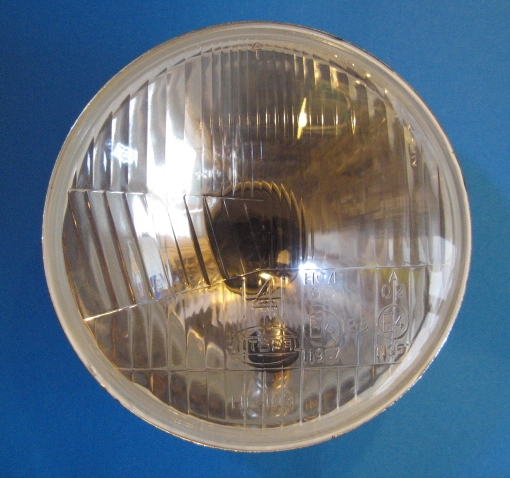

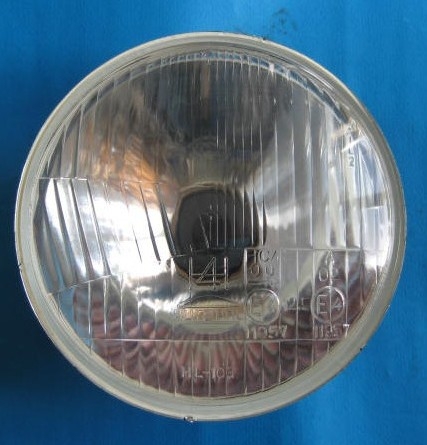

5 3/4" H4 headlights



With bulb holders Pt.no HLUB107 £24.95

LHD for Europe Pt.no. HLUB106 £24.95

Supplied fitted with the a QH pilot light bulb and 12V 60/55W H4 Quartz Halogen bulb £35.00 Pt.no. HLUBH4

This gives the brightest light & best beam pattern available in this size headlight

The section that protrudes through the rim measures 5.0"

From the front edge of the lens where it rests against the rim to the back of the blue socket is 3.25"
5 3/4" headlamps were fitted to Triumph Adventurers, Trail Blazers, 250 Trophies, Sports & Trials Cubs, BSA Firebird Scramblers, Commando Hi Rider & many lightweights.
All our H4 headlamps are 'E' marked and left hand drive or right hand drive

Lucas & Miller pattern British Pre-Focus headlights

Pattern Lucas

8 inch glass/reflector.

Cats-eye pattern C/W pilot bulb holder

Pt.no. HL11054 Fits Series 'B' Vincents £39.95

Special offer. With Quartz Halogen bulbs + all holders £50.00 (normally £58.85)

Pattern Lucas

6 1/2"in. glass/reflector.

Catseye pattern C/W pilot bulb holder.

Pt.no. HL50193 Fits Series 'C' Vincents £29.95

Special offer. With Quartz Halogen bulbs + all holders £46.50 (normally £52.85)

The section that protrudes through the rim measures 7 3/8". From the back of the bulbholder to the edge of the glass is approx. 95MM
Both headlights above look like & replace the earlier Bayonet Cap bulb headlights



The section that protrudes through the rim measures 6.0"

As used on MU42

Pattern Lucas OUT OF STOCK

5 3/4" glass/reflector.

C/W pilot bulb holder. Tiger Cub, C15 etc.

Pt.no. HL10160 £29.95 OUT OF STOCK

Special offer. With Quartz Halogen bulbs + all holders £49.95 (normally £54.95) OUT OF STOCK

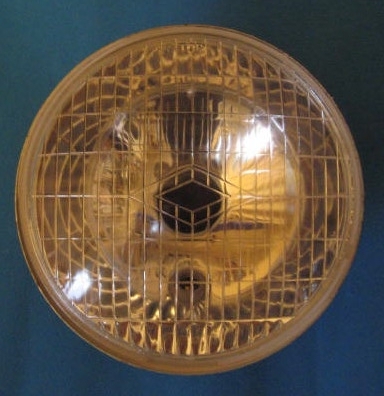

Pattern Miller (Lousy photo, the colour is the same as the Lucas to the left)

5 3/4" glass/reflector.

Diamond pattern.

C/W pilot bulb holder. Pt.no. HL10160M £29.95

Special offer. With Quartz Halogen bulbs + all holders £49.95 (normally £54.85)

The section that protrudes through the rim measures 5.0"
All the headlights above can be fitted with LED bulbs, visit
For Quartz halogen bulbs to suit, visit the bulbs page

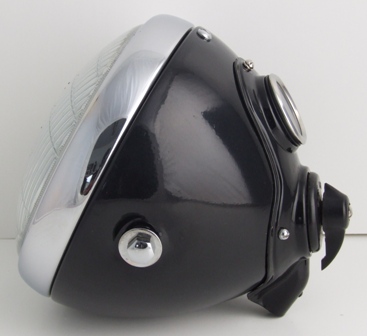

LUCAS STYLE 7.0" HEADLAMP BRITISH PRE-FOCUS

LUCAS SSU700

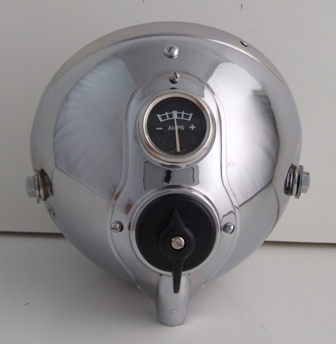

This is a complete 7.0" headlamp with lens/reflector, ammeter, switch,std. bulbs & holders etc. As fitted to many British bikes of the early 1950s. BSA, Norton, Royal Enfield etc.

Black Pt.no. HL10150

Chrome Pt.no.HL10150C

£99.95 each

We can supply QH or LED bulbs to suit

Lucas MU42, 6.5" headlamp assy, also available Pt.no. HL10144 £95.95

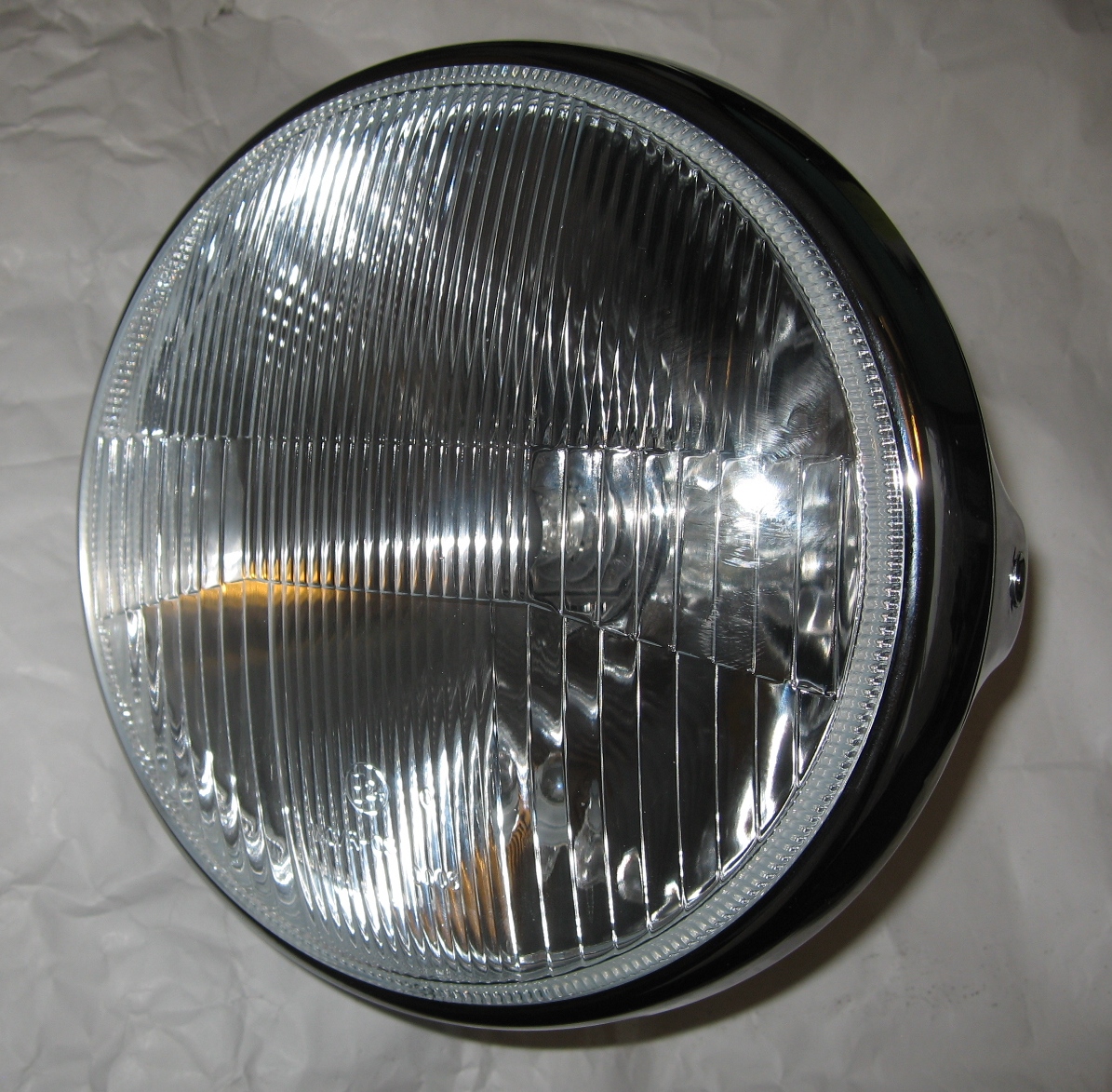

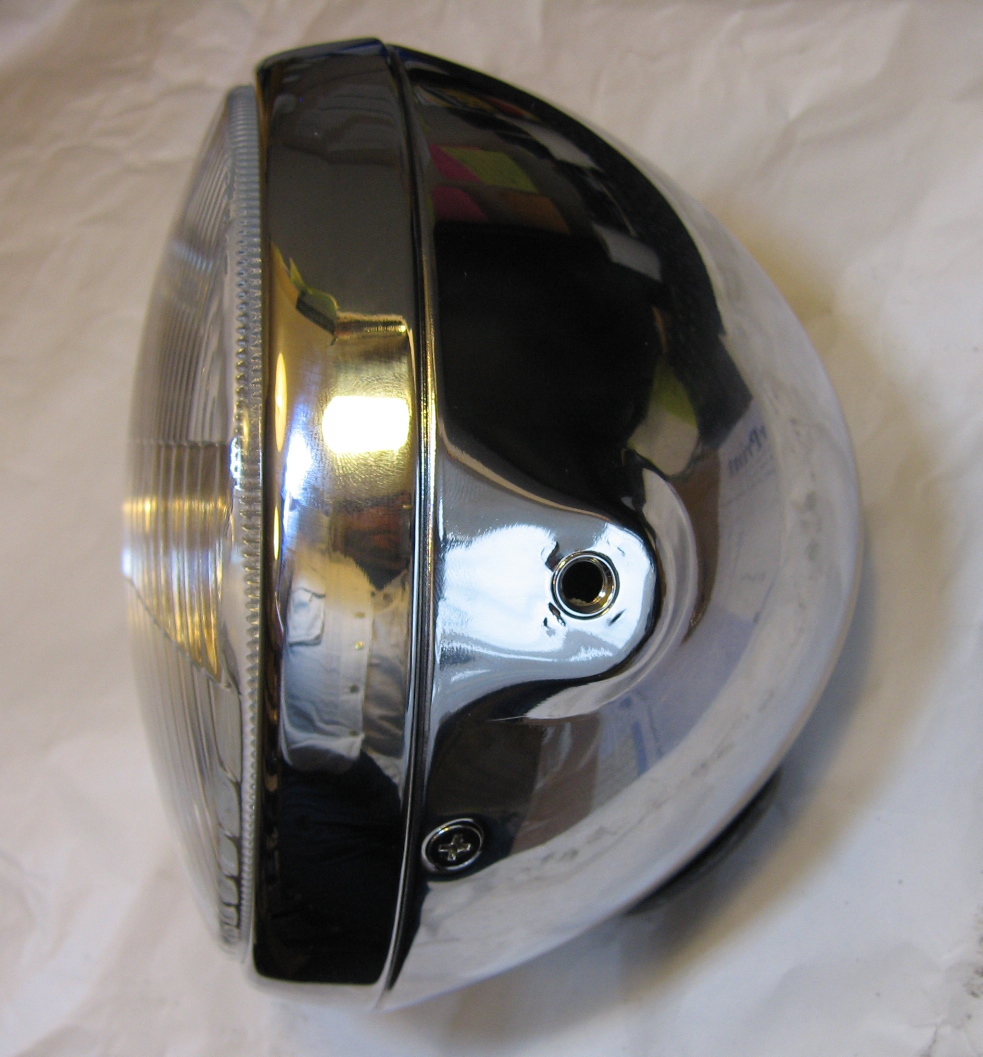

LUCAS STYLE 7.0" H4 HEADLAMP

This is a complete 7.0" headlamp + chrome shell fitted with a 12V 60/55W H4 bulb & a pilot bulb.

It is approx. 25MM shallower at the back than the genuine Lucas shells which can be useful where space is limited.

It takes M8 mounting bolts and is supplied with a Lucas type grommet at the bottom + electrical connectors/bulbholders

Pt.no HL50210 £64.95

Can also be supplied with our 5K Daylighter LED headlight bulb

Pt.no. HL50210LED £99.90 Or with a 6V H4LED £90.90

Also available black with a chrome rim Pt.no HL11067 £64.95

The shell is 120MM deep measured from the rim to the back of the dome resting on a flat surface.

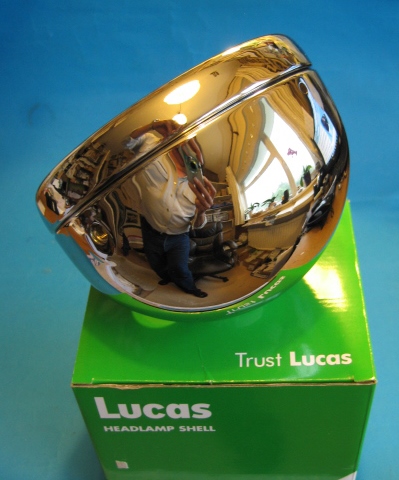

GENUINE LUCAS 7" HEADLAMP SHELLS

ALL £42.95

I've left the old pictures with the green boxes as they give a better view of the important areas

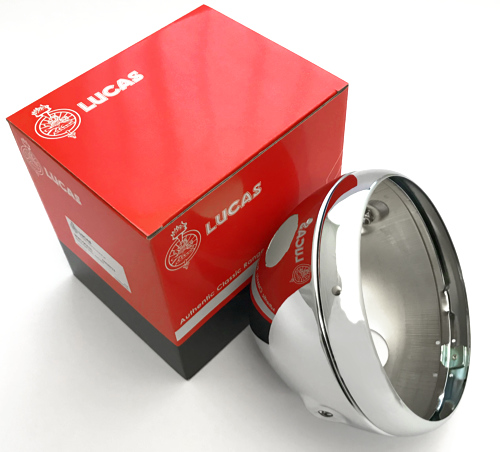

Lucas 54520774. 1 5/8" Ammeter hole only

As fitted to Triumph models (1960-65)

Pt.no.HL10063L

Lucas Pt.no.54520774

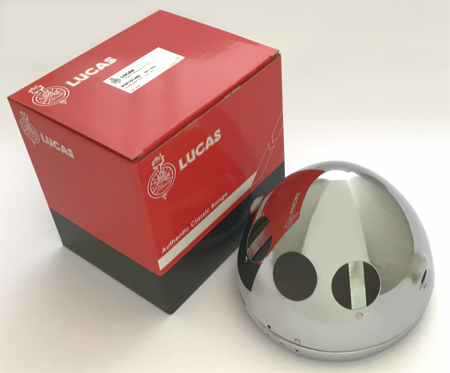

Plain top with 3 lower holes

These accept the Lucas indicators 7/16" UNF mtg. holes

Pt.no.HL10148L

Lucas 5411506

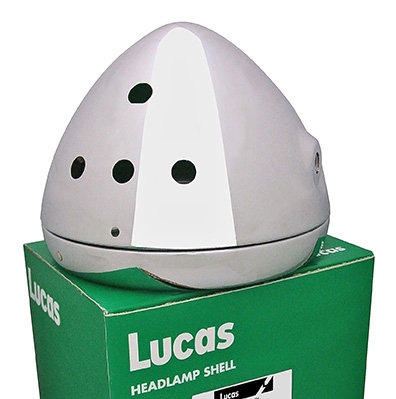

3 Lights, 1 switch 1 lower hole

7/16" UNF mtg. holes

Pt.no.HL10149L

Lucas Pt.no. 5452665

3 lower holes Pt.no. HL10149TL

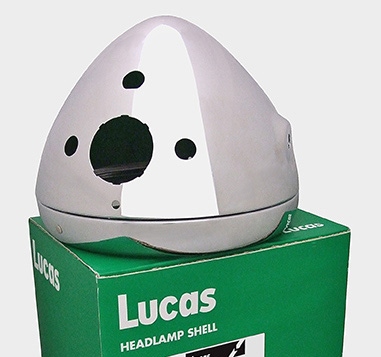

Ammeter top hole , 2 lights, 1 switch

5/16" UNF mtg. holes

Pt.no.HL10158L

Lucas 54523508



Flat back with switch & warning light holes

These accept the Lucas indicators 7/16" UNF mtg. holes

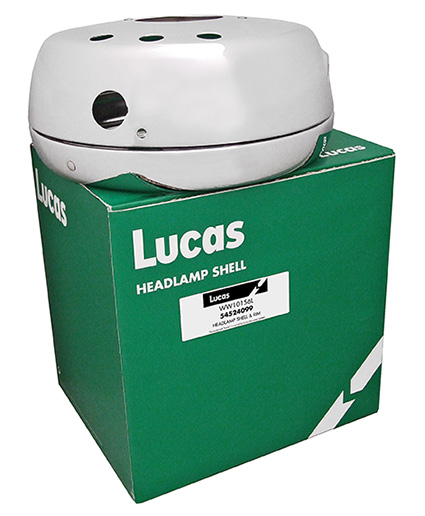

Pt.no.HL10156L

Lucas Pt.no.54524099

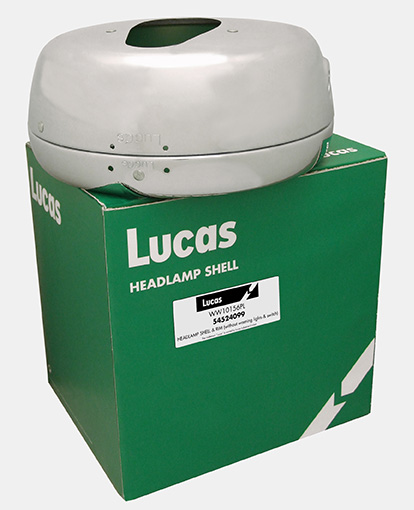

Flat back plain

These accept the Lucas indicators

7/16" UNF mtg. holes

Pt.no. HL10156PL

Lucas Pt.no.54524099

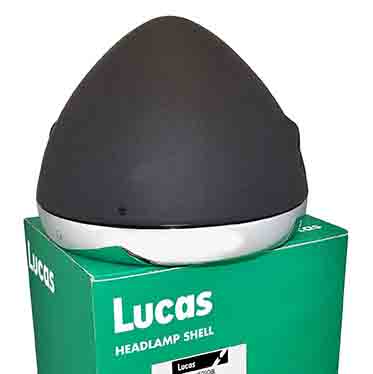

Plain top with 1 lower hole

5/16" UNF mtg. holes

Pt.no. HL50208L

Lucas Pt.no. 5411506UB

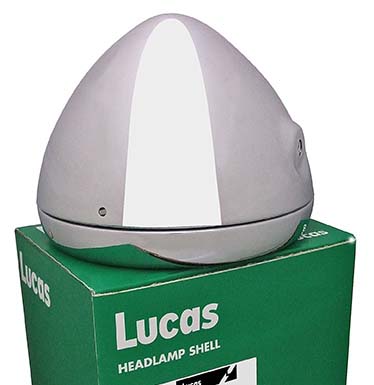

Plain top with 1 lower hole

5/16" UNF mtg. holes

Pt.no. HL50207L

3 lower. holes Pt.no. HL10148L

Lucas Pt.no. 5411506

Aperture for ammeter only. Single Grommet hole.

Lucas 54520774. 1 5/8" ammeter hole.

As fitted to Triumph models (1960-65)

Lousy photo, it's upside down.

Pt.no.HL10063L

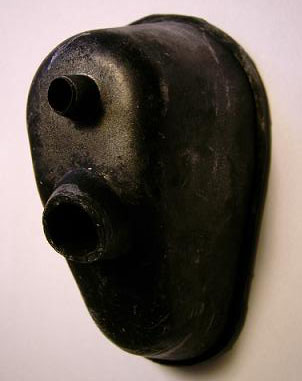

Grommet to suit flatback shells Pt.no.HL28923 £7.95





Lucas H4 headlamps with our 5K LED bulb will fit the flatback headlamps
All the 7.0" shells measure 3.25" from the centre of the bolt holes to the back of the dome & the distance between the outside of the mounting holes is 7.0"

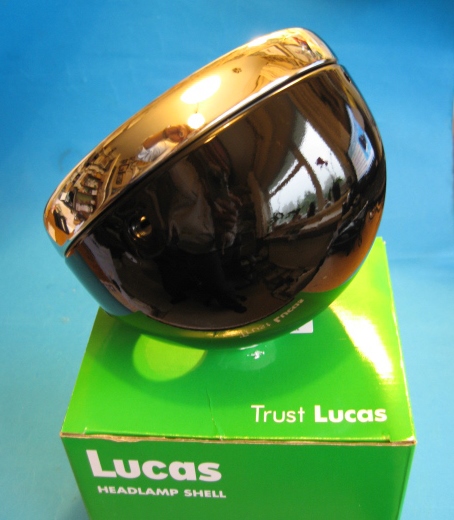

GENUINE LUCAS 5 3/4" HEADLAMP SHELLS

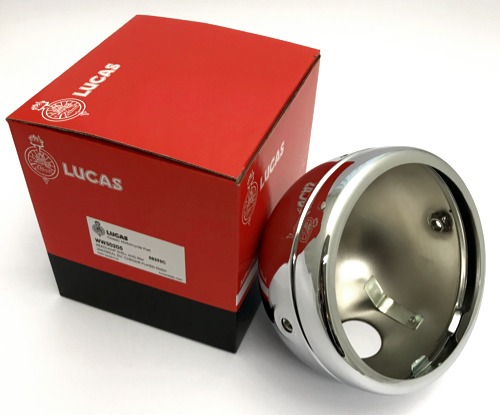

Lucas plain shells in all chrome Pt.no. HL50205 £42 .95

Black with chrome rim Pt.no. HL50206 £42.95

5/16" UNF mtg. holes

5 3/4" headlamps were fitted to Triumph Adventurers, Trail Blazers, 250 Trophies, Sports & Trials Cubs, BSA Firebird Scramblers, Commando Hi Rider and more.


The shells have 5/16" UNF side mounting holes & lower grommet hole.

St./St. Mounting bolts 1 1/4" long £1.00 each Pt.no. HLB516

No shells with holes for warning lights or switches are available.

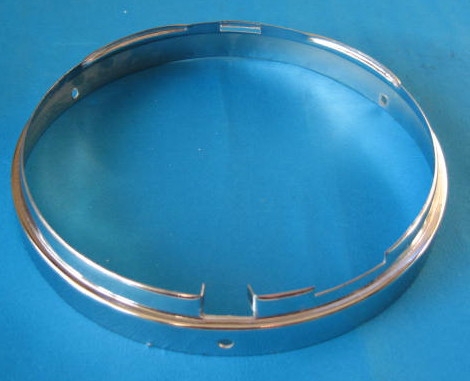

HEADLAMP RIMS





5 3/4" Lucas rim Pt.no. HL19018 £14.50

OEM: LU534343,99-0691

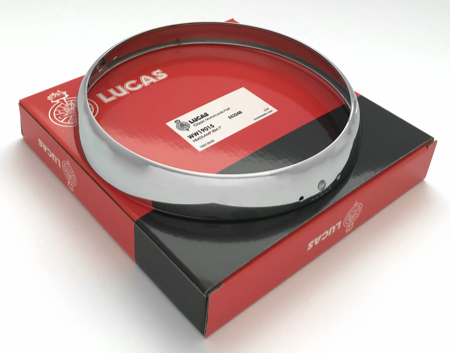

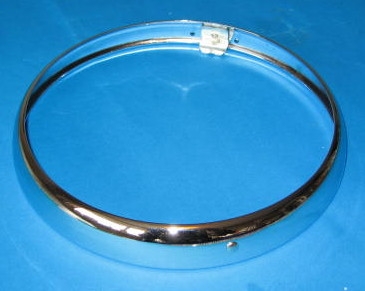

7.0 inch Lucas rim Pt.no.HL19015 £14.95

I.D. of the front opening 169MM

OEM: LU553248,99-0692,19-0701



5 3/4" Lucas patt. £9.95 Pt.no. HL19018R

6 1/2" Lucas patt. £16.50 As used on MU42

Pt.no. HL50111

I.D. at the front 151MM. O.D.at the back 163MM. Depth 29MM

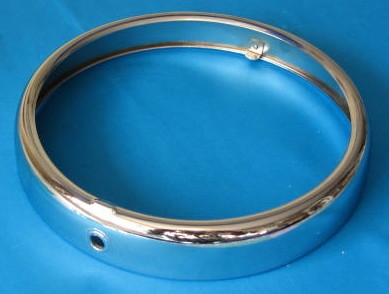

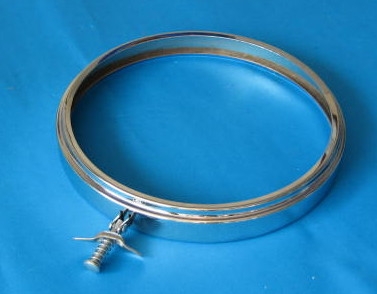

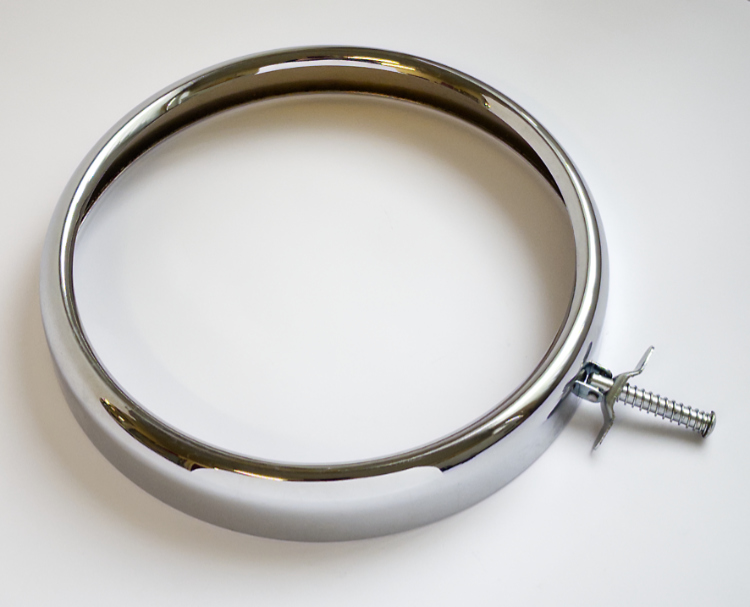

8" Lucas pattern £21.95 Pt.no. HL19022

I.D. at the front 182MM. O.D.at the back 211MM. Depth 34MM

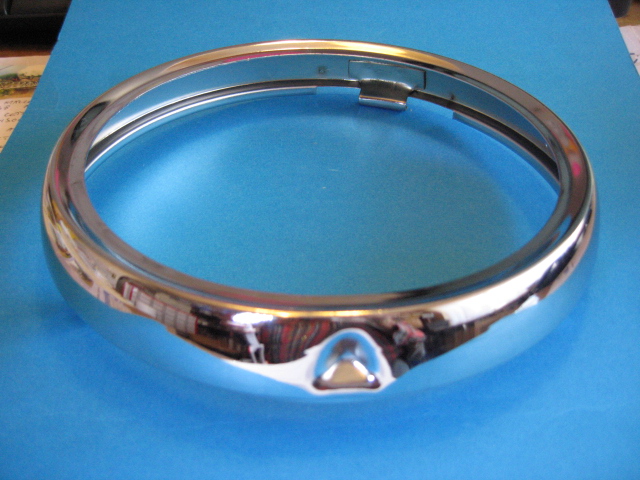

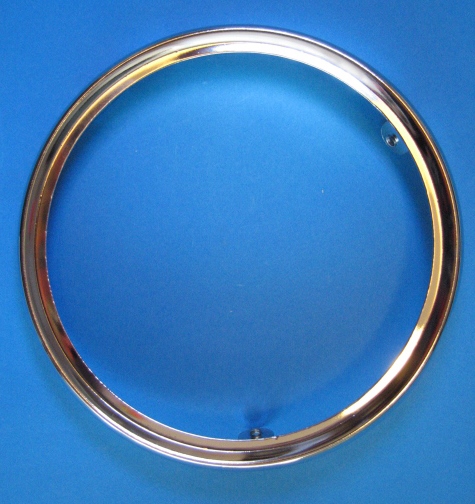

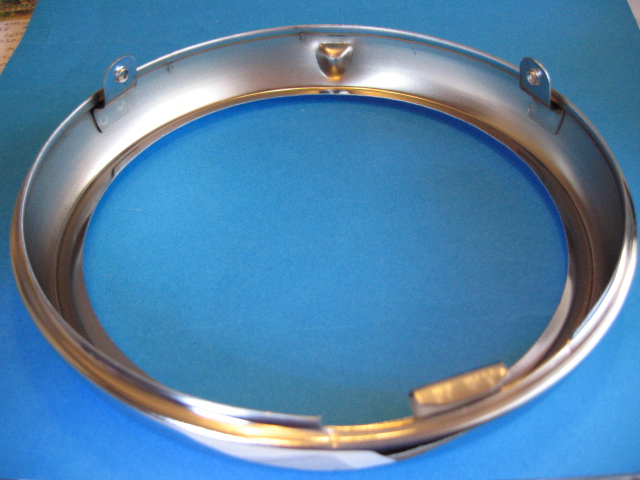

HONDA HEADLAMP RIM



6 1/2" headlamp rim as fitted to Honda 250/400N 79-85 750F/900F 79-86

Pt.no. HL375537R

£7.95

This fits the headlamp Pt.no. HL375537 above



HEADLAMP BRACKETS

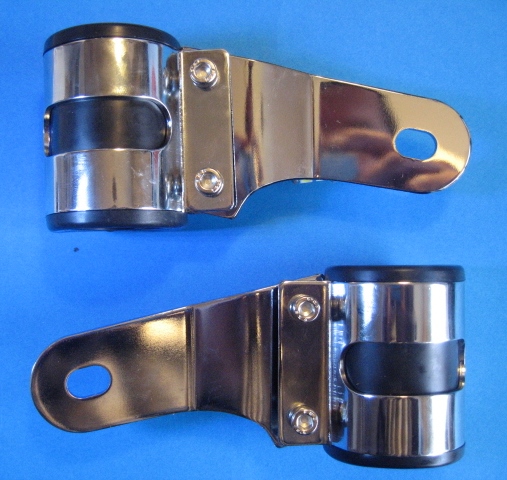

Tomaselli style chrome plated brackets, plated screws & Nyloc nuts with rubber sleeves, fits Stanchions 35/36MM dia. (Norton) etc.

£49.95 per pair

Pt.no. HLBHCHB



Polished aluminium headlamp brackets with shims to suit different dia. stanchions

Fits 35, 39 & 41MM stanchions

Pt.no. HL19067 £36.85

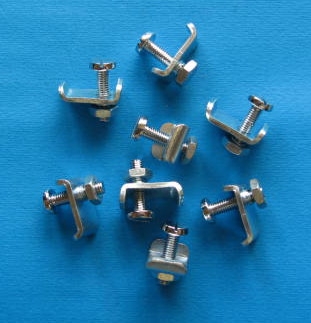

Headlight rim clip & screw.

Pt.no. HL19016 £2.95 each





Chrome handlebar clip Holds the cables neatly against the bars

Pt.no. CL83099

£2.95

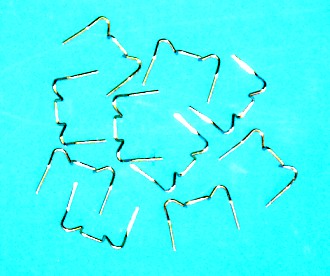

Headlight 'W'clips Pack of 10

Pt. No. HL375000

£3.95



Wiring Grommets to suit headlight shells. These suit holes approx. 1 1/2" in dia. Pt.no. HL10159 £3.25



BULBHOLDERS

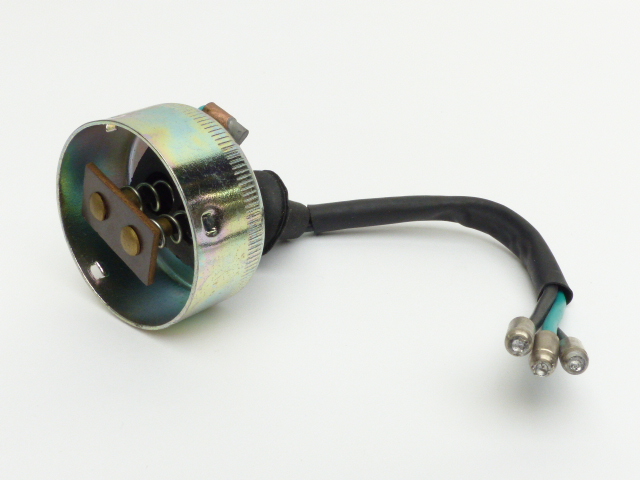

British Pre-Focus headlight bayonet cap.

Most British bikes from the late 1940s till the mid 70s.

Pt.no.HL13120 £7.95

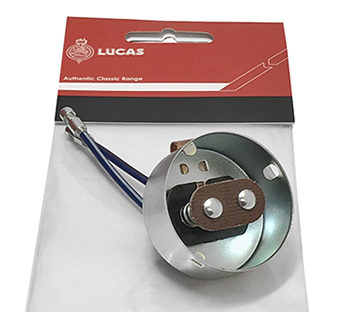

British Pre-Focus headlight bayonet cap

Made on new 2019 tooling, much the same as the above but a bit prettier & with Lucas packaging

P.no. HL13120L £11.95

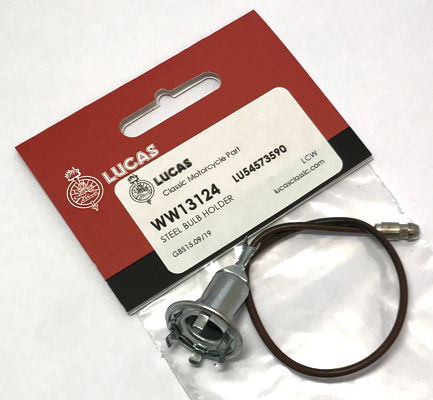

Genuine Lucas claw type BA9s pilot bulb holder. Fits into 16MM dia. hole

Pt.no. HL13124 £12.95



Wipac Pilot bulbholder. Fits the Wipac Quadoptic H4 headlight HLW4700 above. Comes with male/female bullet connectors.

Pt.n. HLW4276

£7.95

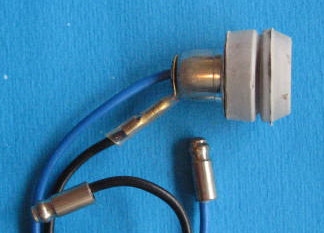

Cheaper pilot bulb holder BA9s type with a rubber grommet fixing. Fits into 15MM dia. hole

Pt.no. HL13121 £4.95



Rubber pilot bulbholder, fits into 13MM hole. Accepts capless bulbs in 6V or 12V or LED T10 capless which can be used in 12V positive or negative earth.

Pt.no.HLBLB34 £4.95

OD 20MM

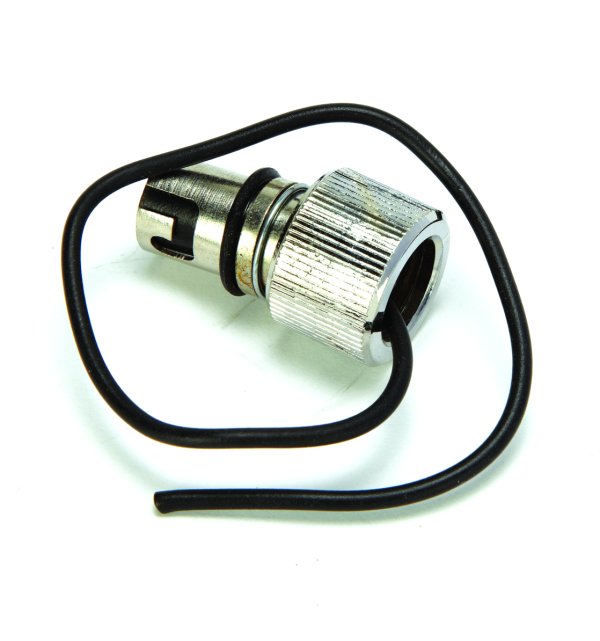

BA9s Bulbholder for chronometric speedos. Screws onto male thread on speedo.

New better quality version, old photo

Pt.no. SP13119

£13.95

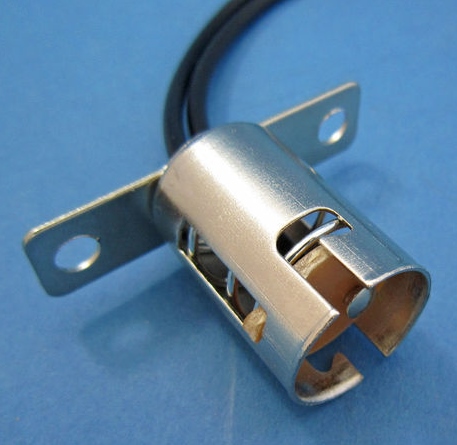

BAY15d Pt.no.HL132036 Offset pins (for stop/tail)

with mounting brackets £7.95





BA15d bayonet cap. Parallel pins (for headlamp) 17MM diameter Pt.no.HL132002 £7.95

BAY15d Pt.no.HL132001 Offset pins (for stop/tail) £7.95.

BA15s bayonet cap single contact Pt.no. HL132003 £7.95 (for pilot or spotlight)





H4 headlamp bulb socket. pushes onto the back of P43t & P45t headlight bulbs.

Also fits many 3 pin flasher units.

Pt.no. HL13125 £3.50 each

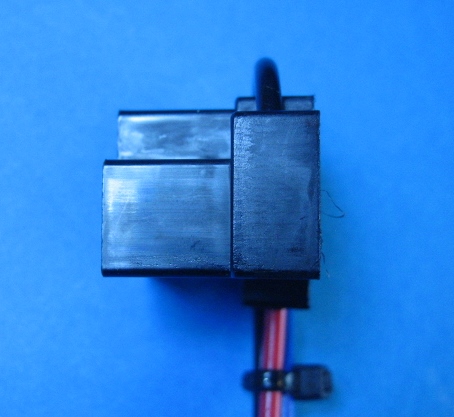

New right angle H4 connector, saves space at the back of the headlamp

Pt.no. HL13125R £3.50 each





H4 headlight bulb socket connections:

Looking at the open end:

Right is earth, Left is Main & Centre is Dip

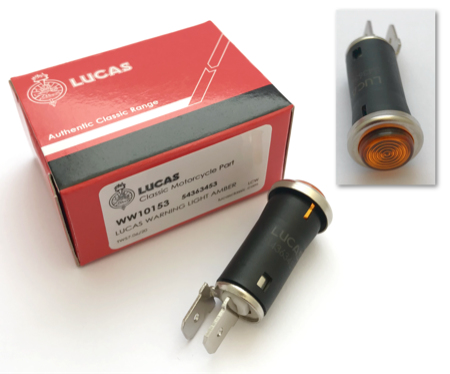

Genuine Lucas warning lights

Fitted with bulbs 6V or 12V, often supplied without bulbs elsewhere

Colour
Part no.
Blue HL10152
Amber HL10153
Red HL10154
Green HL10155
1/2" mounting hole required.
Idiot lights to suit shells above
£5.95 each.

Genuine Lucas Diamond Warning lights

Colour
Part no.
Amber HL10453
Red HL10451
Green HL10452
1/2" mounting hole required.
Idiot lights to suit shells above
£8.95 each.



LED bulbs to fit the warning lights above





These LEDs fit the Lucas warning light shown (all colours) and many others, also some magnetic speedo lights, C15 etc.

They are much brighter than the std. bulbs but are only available in white, so make the warning light appear a little milky.

Available in either Positive earth or negative earth.

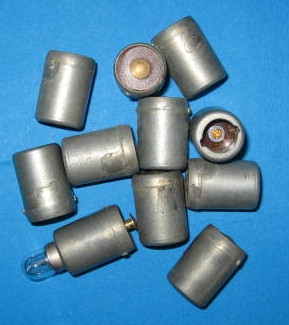

If space is tight in the headlamp, these alloy the bulbholder to be shortened by up to 6MM

Pt.no. LDBA7P & LDBA7N

6V Pt.no. LDBA7-6V (dual polarity 6V only)

£3.00 each.

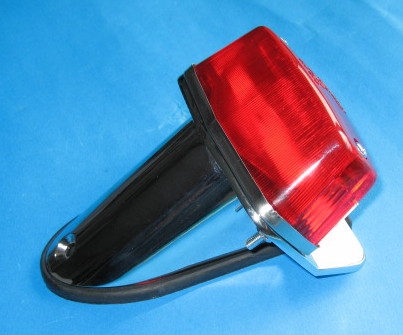

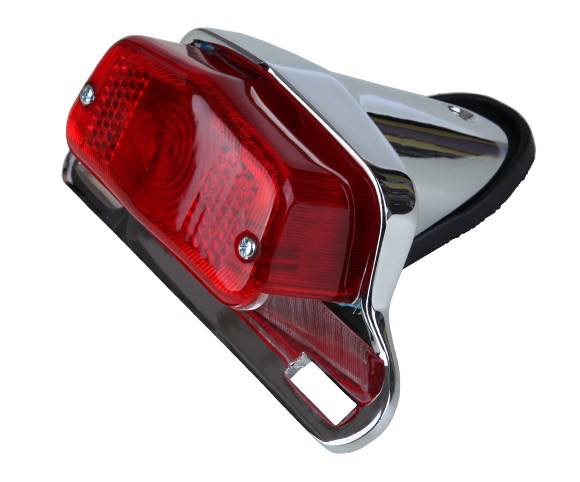

LUCAS L564 STYLE ALUMINIUM REAR LAMP

Chrome plated cast aluminium housing with a traditional Lucas 564 style rear light. Looks great on Cafe racers and customs. Now comes with a black rubber mounting gasket. I fitted one of these to my Thunderbird Sport. Pt.no RL19034 £42.95

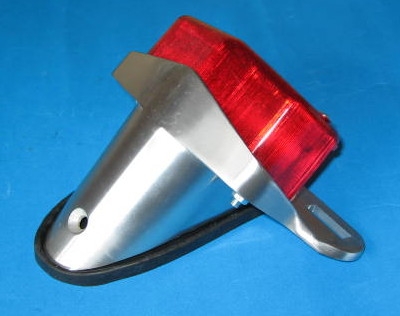

Also available in natural aluminium finish. £42.95

Pt. no. RL364599

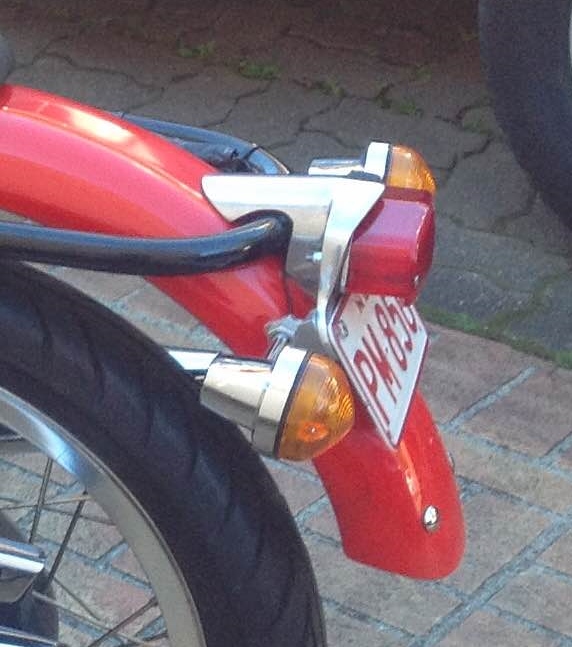

Here's one modified to fit a Commando



LUCAS L525 STYLE ALUMINIUM REAR LAMP

This compact rearlight has a chrome plated cast aluminium housing and features the smaller L525 rearlight. Very neat. Comes with fixing screws numberplate bracket and rubber mounting gasket.

Top quality, E marked. £39.95

Pt.no. RL255924



Tail lights like this were sold as BSA approved accessories in the US mid 1960s. Pt.no. B189 $5.00!

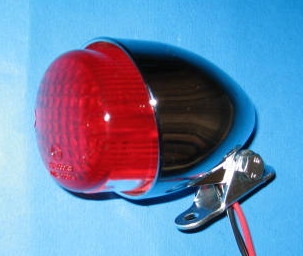

BULLET REARLIGHTS



Bullet rearlights can be mounted at any angle making them particularly suitable for short mudguards where an ordinary rearlight points upwards.

Chrome finish.

Great for cafe racers & customs

Can be fitted with LEDs or QH replacement bulbs.

Dia. of the lens is 49MM

£19.95 Pt.no. RL255982



Now also in black

£19.95 Pt.no. RL255983

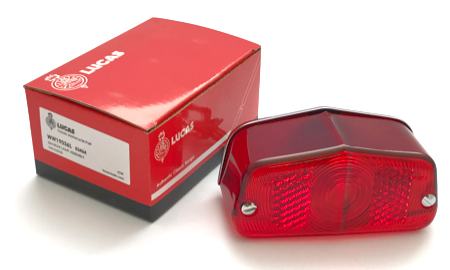

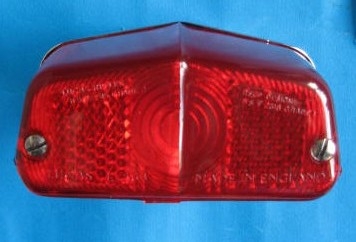

GENUINE LUCAS L564 REARLIGHT





This is a genuine Lucas L564 tailight complete with bulb. Lucas Pt.no. LU53454

It is marked 'LUCAS L564' & 'ENGLAND' Also BS numbers etc.

These use a long captive stud & slotted sleevenut to locate the lens as per the originals, not the long fiddly screw & (poor) captive nut of the pattern versions.

These are as fitted to many British bikes 1955 - 1969

These can be supplied fitted with 6V or 12V bulbs, or LEDs (ask for details of LEDs)

Our Pt.no. RL19036L £39.95

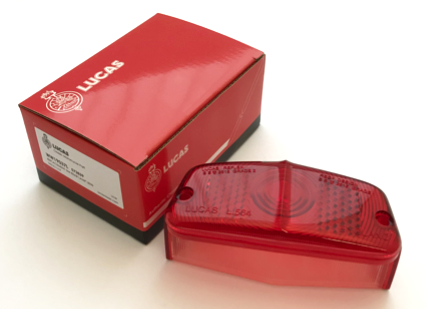

Spare Lenses Pt.no. RL19037L £16.50

Note: These lenses also fit the pattern L564 rearlamp with its own screws

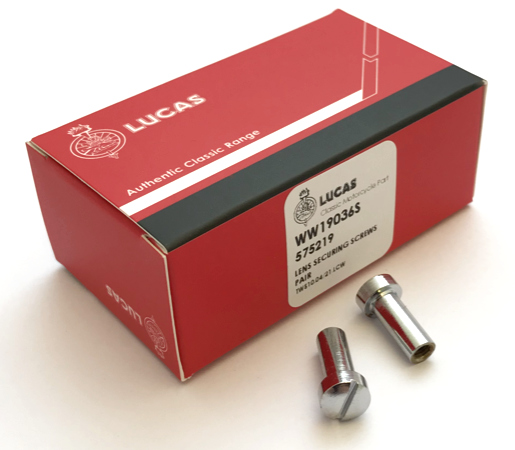

Replacement plated lens screws are available Pt.no. RL19036S

£9.95 per pair.

NB these screws have a different thread from the Lucas L564s from the 1960s

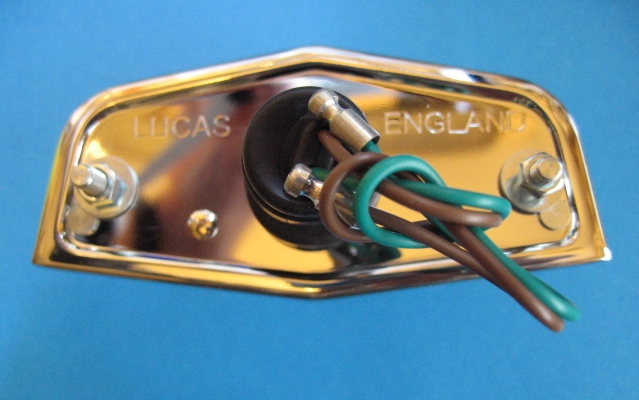

Back marked LUCAS ENGLAND & correct sized connection bullets

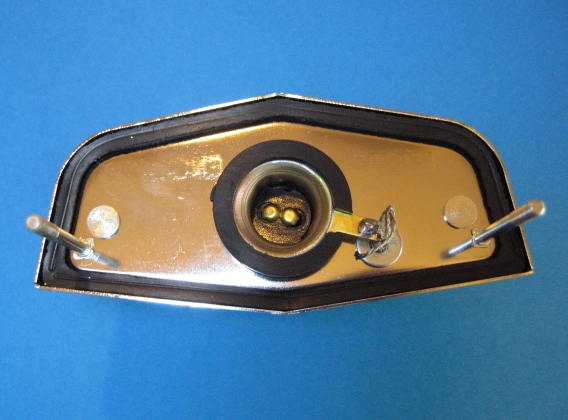

Inside, showing anti-vibration rubber mounted bulbholder, earth connection & rubber seal

GENUINE LUCAS L917 REARLIGHT



This is a new genuine Lucas L917 tailight complete with bulb. Pt.no. RL19044L £42.95

As fitted to 850 Commandos, Tridents & 750 Bonnies 1972/83

It is marked 'LUCAS L917' & 'ENGLAND' Also BS numbers etc.

Lucas Ref. LU56513, L917 ,06-3736, 06-8028, 99-1252

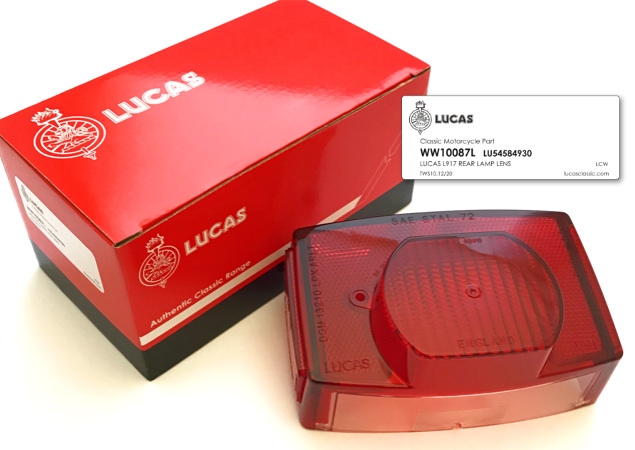

Replacement lenses are available seperately

Pt.no. RL10087L £18.95

Lucas Ref. LU54584930, L917, 06-8058,99-1257

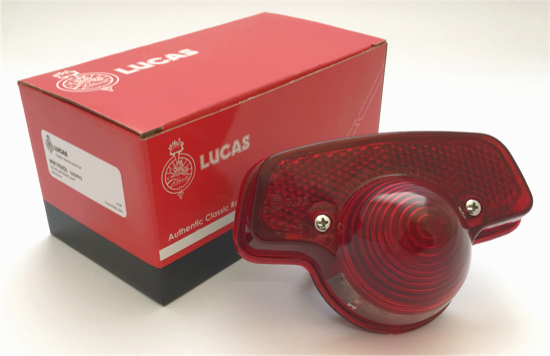

GENUINE LUCAS L679 REARLIGHT



This is a new genuine Lucas L697 tailight complete with bulb. £39.95

As fitted to Triumph, BSA, Norton 1963/72

It is marked 'LUCAS L679' & 'ENGLAND' Also BS numbers etc.

Pt.no. RL19042L

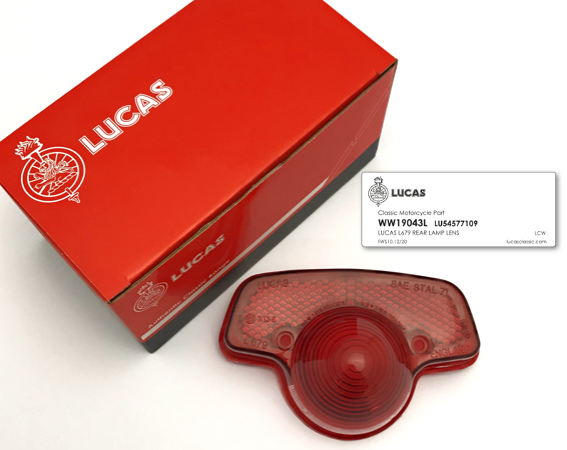

Replacement lenses are available seperately

Lucas Ref. LU54577109, L679

Pt.no. RL19043L £18.95

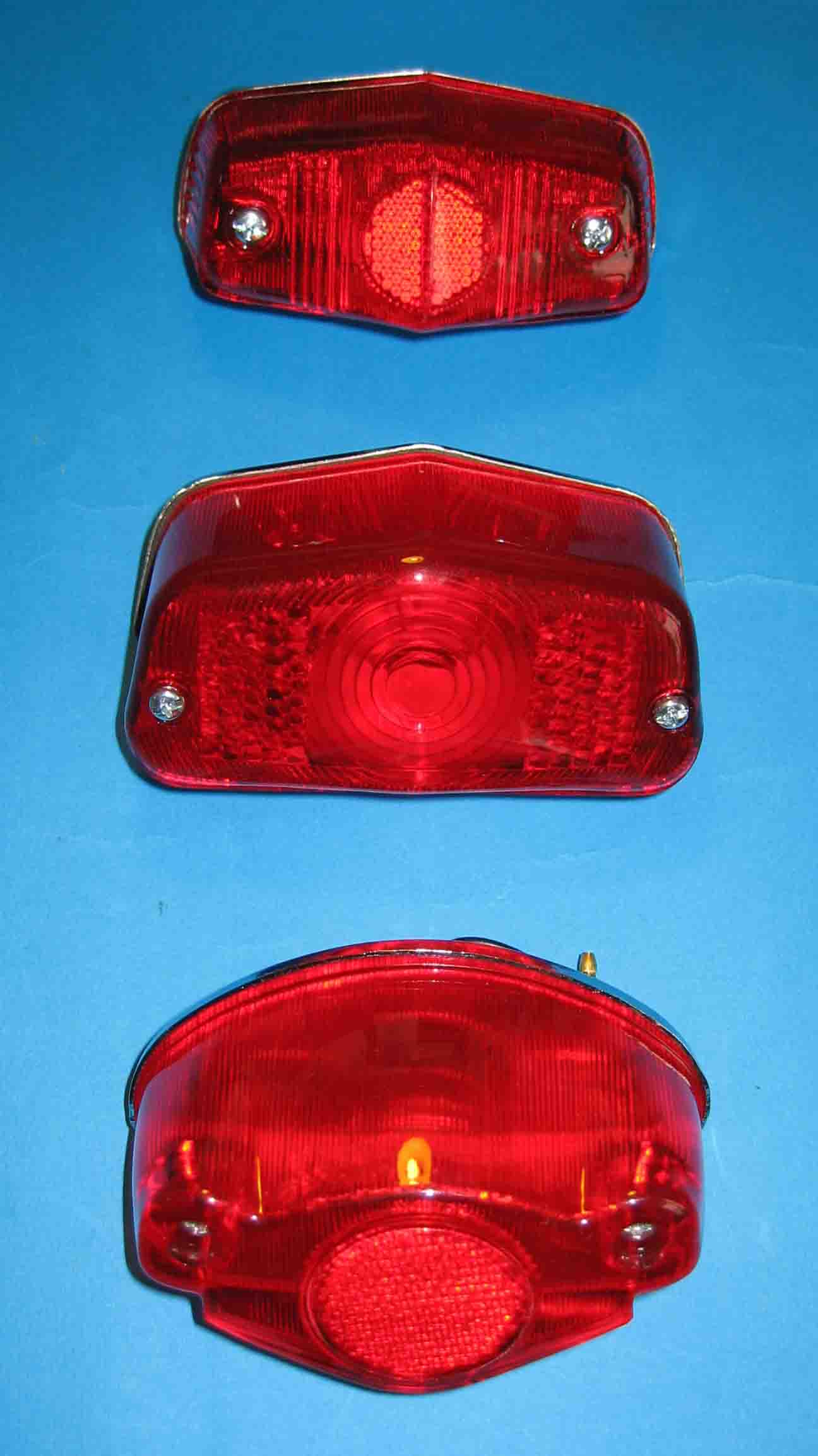

LUCAS AND MILLER PATTERN REARLIGHTS

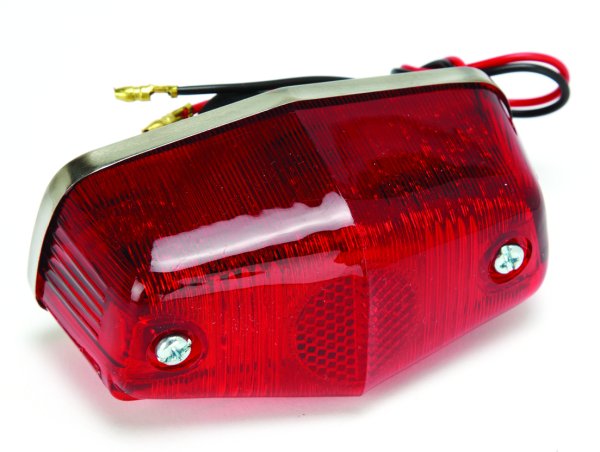

Lucas pattern L525 1953 - 1955 or so. 6V or 12V

Pt.no. RL19033 £15.95

Base size 110 x 50 x 50MM deep though looks smaller as the lens tapers

Also fitted to Triumph cars TR2 & TR3

Spare lens Pt.no. RL19035 £5.95

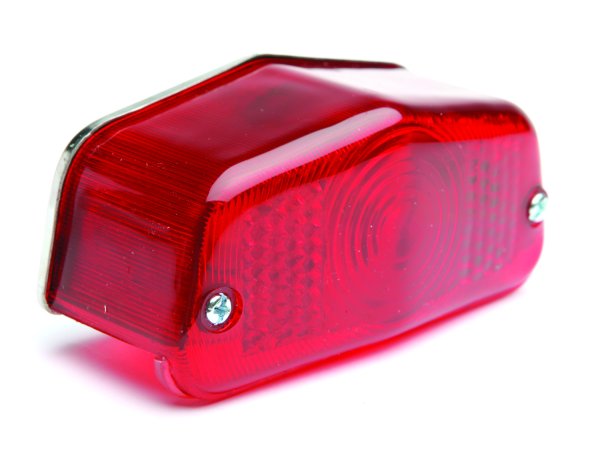

Lucas pattern L564. Many British bikes 1955 - 1969 6V or 12V

Pt.no. RL19036

Base size 110 x 55 x 50MM deep

£10.95

Spare lens Pt.no. RL19037 £5.95

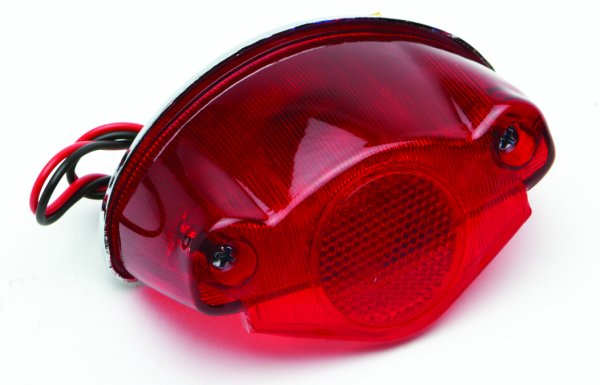

Miller pattern 38ET tail lamp 6V or 12V Pt.no. RL19236 £15.95

Fitted to Velocettes 1950 - 1967


All rear lights come with a 6 or 12V bulb as requested





WIPAC 143b REARLIGHT

This is a top quality copy of the Wipac rearlight fitted to all Bantams D7 on, AMC Lightweights & the C10L. Sometimes known as the Sabrina rearlight after the 1950s actress Norma Jean Sykes

These are not cheap, but you get what you pay for, & these are accurate looking reproductions made on new tooling.

Come with a 6V stop/tail bulb as std. 12V on request.

Pt.No. RL19302 £22.95

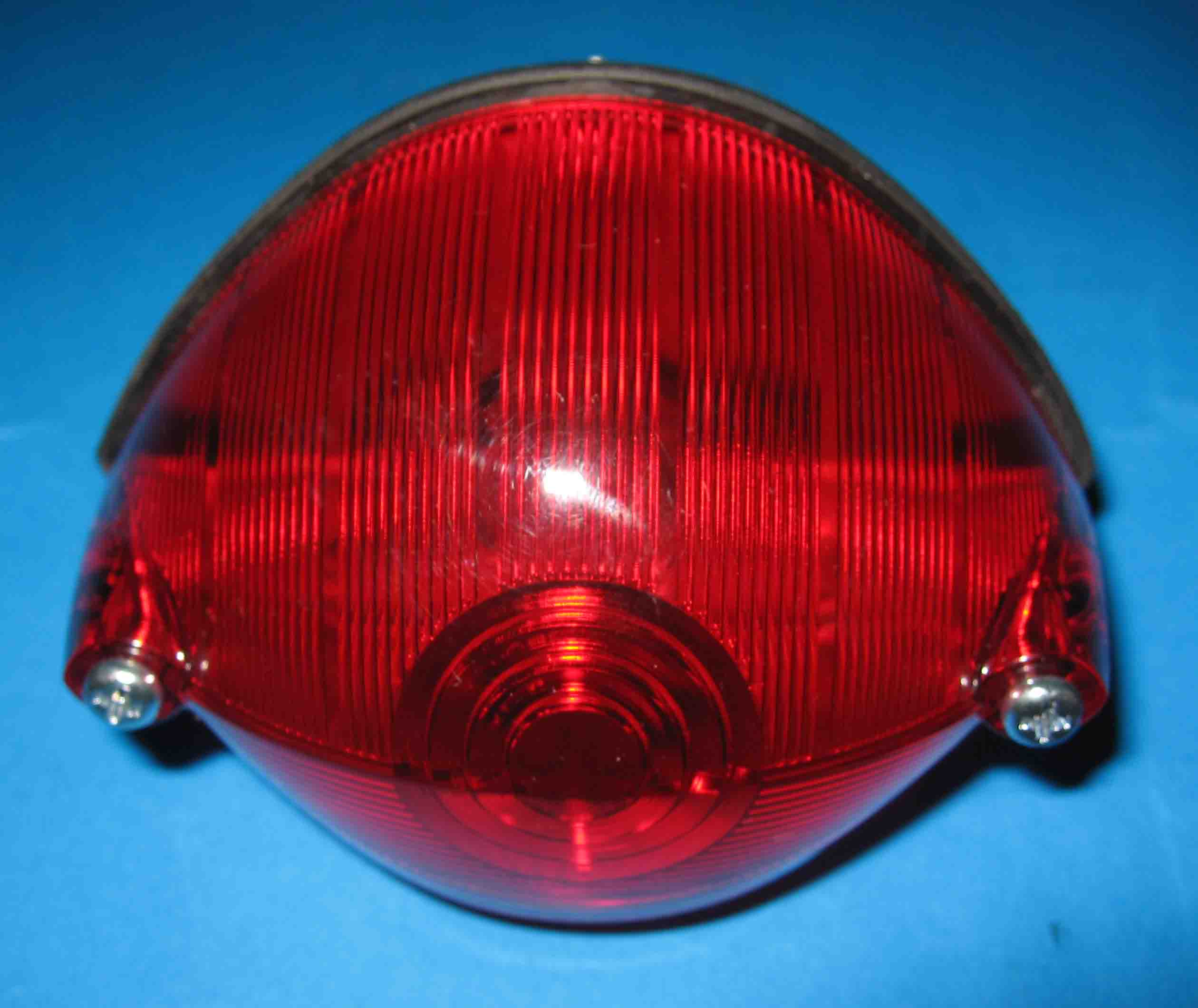

NEW LUCAS PATTERN L529 REARLIGHT



This is a reproduction of the Lucas L529 rearlight as fitted to some Bantams, AJS 350/500, Ariel 350, Enfield 250, Velocette, early Triumph T20 Tiger Cubs/Terriers and Vincent Black Prince & Knights.

This is a top quality product, not to be confused with the very poor (& sometimes expensive) versions previously available.

Comes with 6V bulb as std, fitted with 12V on request.

Pt.no. RL19041 £27.95

Spare lens Pt.no. RL19304 £9.50

Lightweights often only had a single filament tail bulb, and these are catered for. Pt.no. RL19040 £21.95



LUCAS, MILLER & WIPAC PATTERN REARLIGHTS

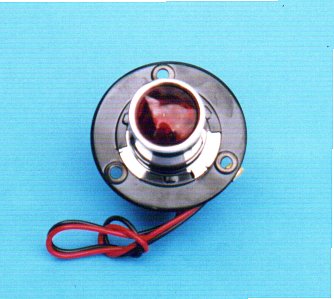

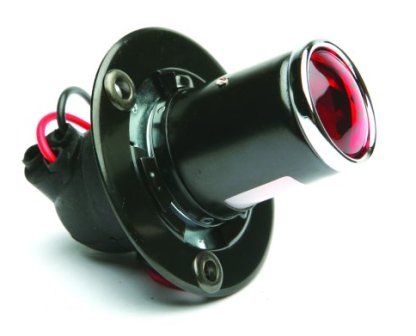

LUCAS PATTERN MT211

body dia. 30MM Front depth 45MM, rear depth 40MM , mtg. hole dia 45MM

Pt.no RL19234

£21.95

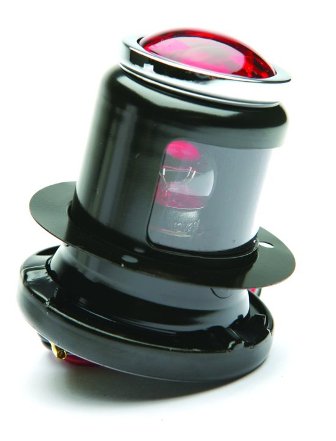

LUCAS PATTERN MT110 (AKA MT480) Body dia. 45MM Front depth 50MM, rear depth 45MM, mtg. hole dia 45MM

Pt.no. RL19301

£22.95

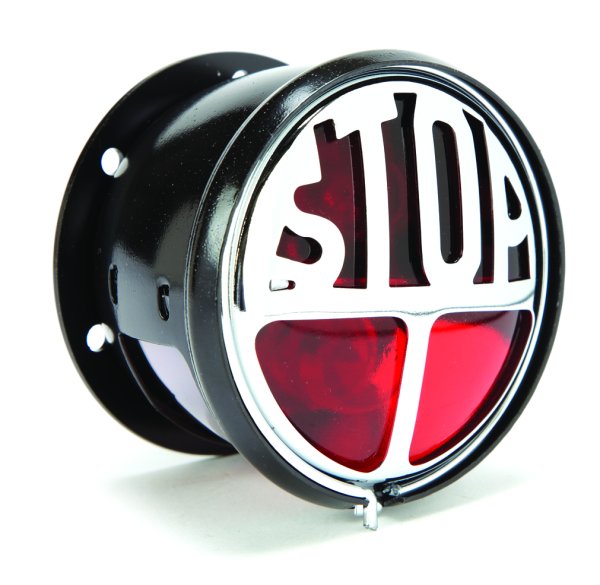

MILLER VINCENT TYPE REARLAMP

Dia.67MM Depth 45MM

Pt.no. RL19233 £28

£28.95

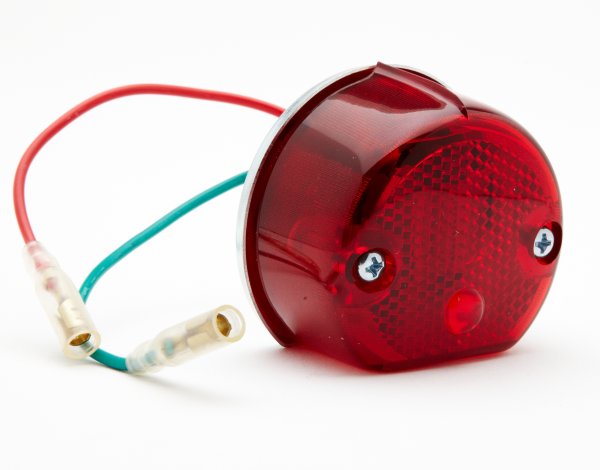

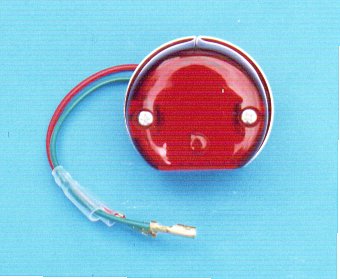

WIPAC S446 PATTERN REARLAMP Dia.55MM Depth 37MM

Same as S156 except the bulb is a stop/tail

Pt.no.RL19031 £23.95

Spare lens Pt.no.RL19030 £6.00 ea.









LUCAS PATTERN 477/1 REARLAMP

Max. O.D.61MM

Pt.no.RL19305

£31.00

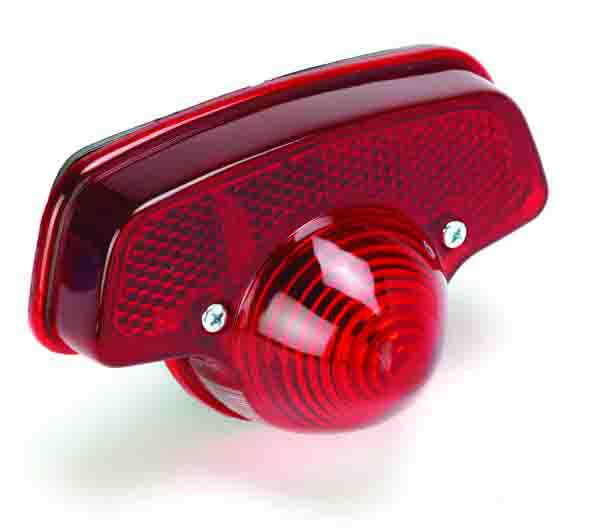

L917 LUCAS PATTERN REARLIGHT

Pt.no. 19044

£18.95

Spare lens Pt.no. RL10087 £8.95



L679 LUCAS PATTERN REARLIGHT

Pt.no. RL19042

£18.95

Spare lens Pt.no. RL19043 £6.95

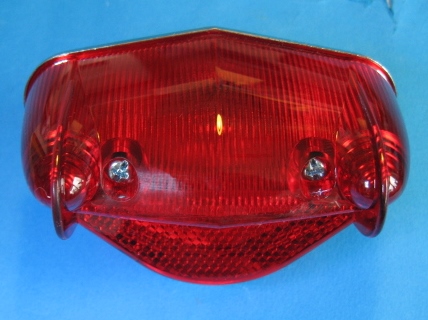

WIPAC PATTERN BANTAM REARLIGHT

Pt.no. RL19302

£23.95



NUMBERPLATE


Pt.no.RL19031 £23.95

Here we have a polished Stainless Steel rear numberplate. It is just big enough for six of the correct size numbers/letters. It incorporates a mounting for the Wipac S446 rearlight. It can also be used as a mount for a larger numberplate.

OUT OF STOCK

Pt.no. NP1 £6.50



LED REARLIGHTS



Miller pattern rearlight as fitted to Vincents & Velocettes supplied with 29 high output LEDs giving stop/tail & numberplate light. Very bright. E marked.

Only available in 12V negative earth.

Pt.no.Pt.no. RLED255-057 £44.95

For 6V & 12V +VE LED Lightboads to fit into std. Miller rearlights click here

Mounting studs on the rear are M3, 30mm apart & they do not have the rear mounting plate like the original Vincent rear lamp. Connections, Black - Negative, Yellow - Tail, Red - Stop



IGNITION AND LIGHT SWITCHES

The Lucas switches all now come in red boxes

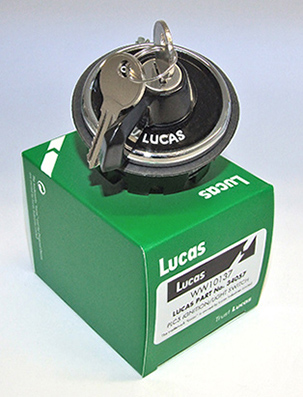

Genuine Lucas PLC5 ignition and lighting switch. As fitted to many motorcycles from 1930's to 1950's, including :- Enfield 500cc twins, Sunbeam S7,S8 500cc models and all Triumph models (1939).

Pt.no. SW10137

£94.95

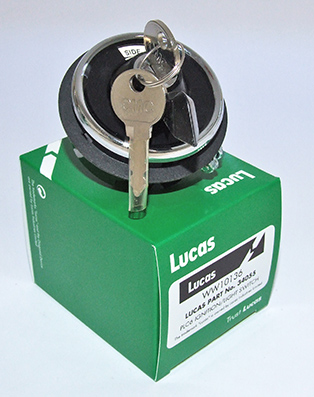

Genuine Lucas PLC6 ignition/switch. OFF-SIDE-HEAD, requires 53mm diameter hole and secures in place with clip. Screw type wire connections, and supplied with 2 keys

Pt.no. SW10136

£94.95

Lucas pattern

U39 31340 For 1 3/4" dia. mounting

Pt. no. SW10114

£37.95

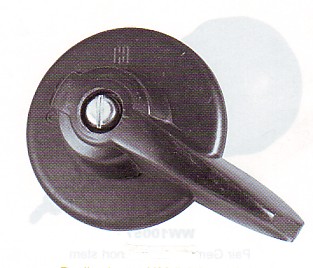

Lucas pattern

U39 31315 with large knob

Pt. no. SW10115 £37.95

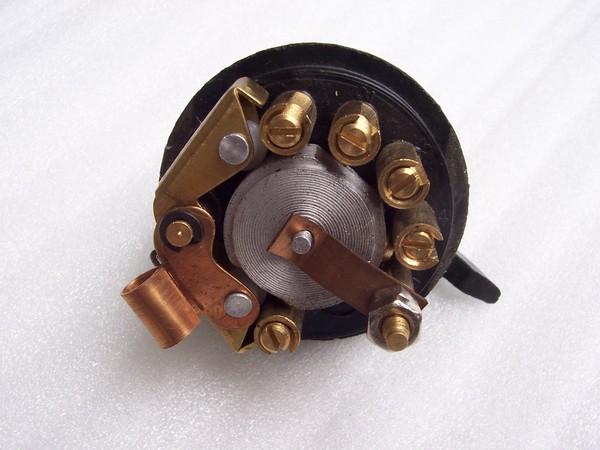

Rear of SW10114 above

Genuine Lucas 88SA 34427B

Pt. no.SW10117

BSA C15, B40, B44 etc, Triumph 3TA, Norton Atlas

£71.95

Socket to suit above Pt.no. SW19223 £23.95

Genuine Lucas 88SA 34289A

Pt. no.SW10118

BSA C15, B40, B44 etc, Triumph 3TA, Norton Atlas

£71.95

Socket to suit above Pt.no. SW19224 £23.95

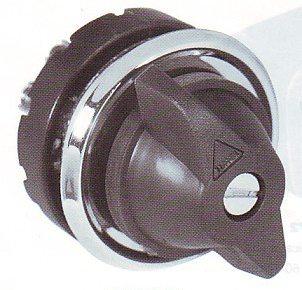

Lucas pattern 41SA 31784 S/Arm BSA A10 etc.

Requires 5/8" Dia. hole with 2 flats

Pt.no. SW10120 £33.70 With chrome bezel as shown Pt.no. SW10120/1 £42.10

Chrome bezel seperately Pt.no.SW10414 £8.40

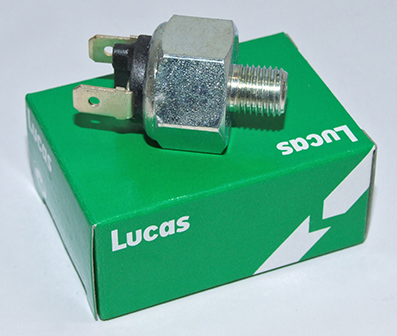

Genuine Lucas Master Cylinder Hydraulic Brake Light Switch. T140,TR7,T150,T160 (1979-) and Norton Commando disc brake models.

Pt.no. SW11032 £9.95

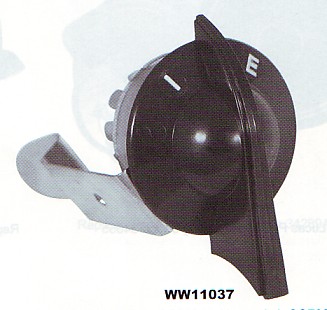

Wipac pattern SO782 Ignition switch Bantam etc.

Pt.no. SW11037

£27.50

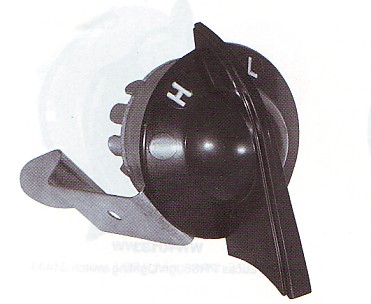

Wipac pattern SO781 Lighting switch Bantam etc.

Pt.no. SW11036

£27.50

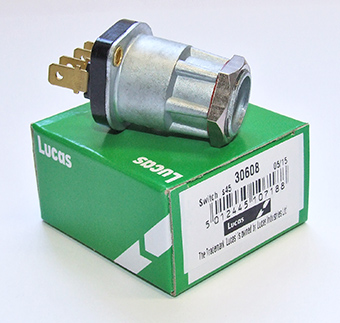

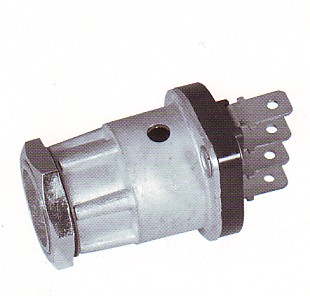

Genuine Lucas ignition switch. 3/4" mounting hole

Pt.no.SW10163L £20.95

With key & lock Pt.no.SW10163/1 £32.95

B25,C25,B44,A65,A75

Atlas, early Commando

T100,TR25W,TR5,TR6,T120

`

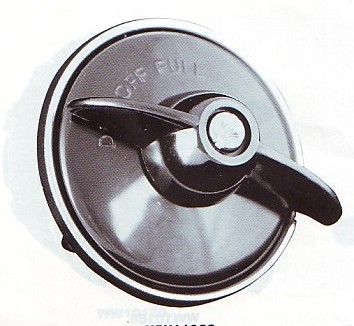

Miller pattern 3 position Headlight switch. These require a 2.0" mounting hole.

Diameter including bezel 2 3/16" (56mm) Number of terminals : 6

Pt.no. SW11060

£64.95

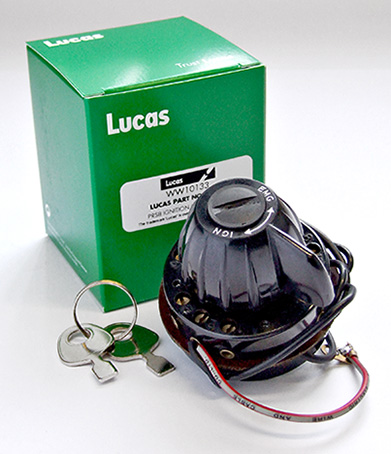

Genuine Lucas PRS8 ignition/lighting switch.

As fitted to many Triumph,BSA and Norton models, including Triumph 3TA,5TA,Pre Units. Supplied with keys.

Pt.no. SW10133L £124.95

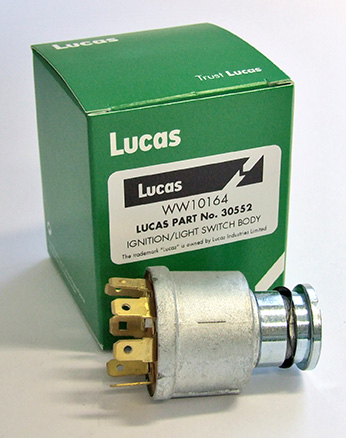

Genuine Lucas ign/lighting switch, as fitted to late Commandos, T160s etc.

Pt.no. SW10164L £42.50

With key & lock Pt.no.SW10164/1 £53.95

Lock and key Pt.no. SW10145 £11.40

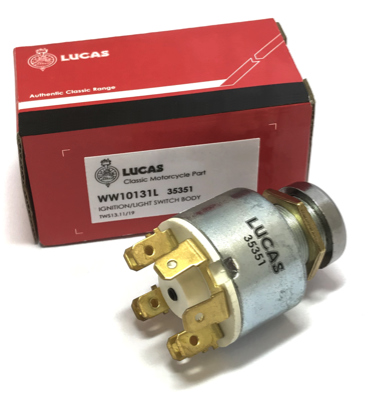

Genuine Lucas 35351 Ignition/Lighting switch

BSA B25,B50,A65,A75 (1971-) Triumph T120,T140

Pt.no SW10131L £20.95

With key & lock Pt.no. SW10131L/1 £29.95

Lock and key Pt.no. SW10145 £9.50

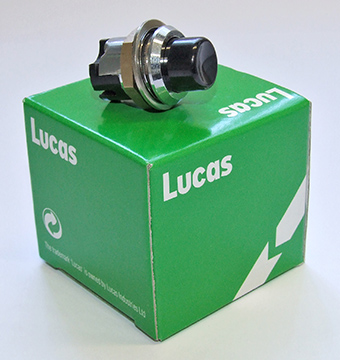

Genuine Lucas

Kill Switch SS5 (31071). Triumph T20 (1964), 6T,T110,T100 (1959-62), T100A,3TA,5TA (1958-63), TR6C,T120TT (1966-67), T100C(1966-67)

Pt.no. SW10116 £18.90

Genuine Lucas

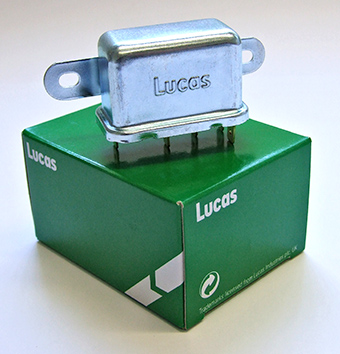

6RA Horn Relay 33188. Normally Open Contacts. T140,T150,T160 & BSA R3 A65 models.

5 Terminal 12V 20A Pt.no. SW 10119 £23.95

Genuine Lucas

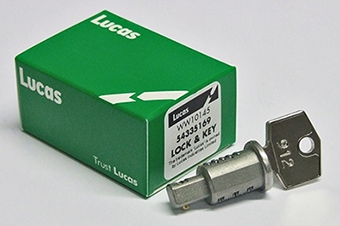

Lock and key for SW10163L SW10164 & SW10131L

Pt.no. SW10145

£11.40

Genuine Lucas

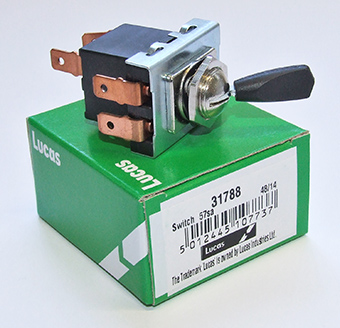

3 Position Toggle Switch 57SA 31788

14MM dia. mtg. hole with one flat

Pt.no. SW10122L £16.95

2 Position toggle switch 57SA 31780. 850 Commando etc.

Pt.no. SW10113L £16.95

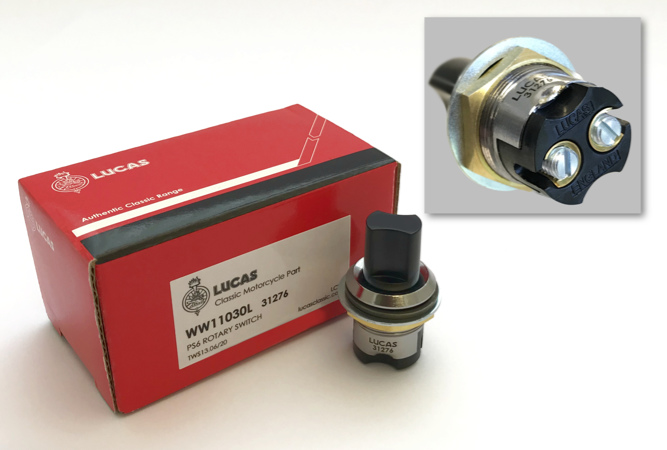

Genuine Lucas

Rotary on/off switch as fitted to BSA/Tri 650 1971/2, C15S/T & Trailblazers etc.

Fits flatback headlamp Pt.no. HL11056L

Pt.no SW11030L

£34.95

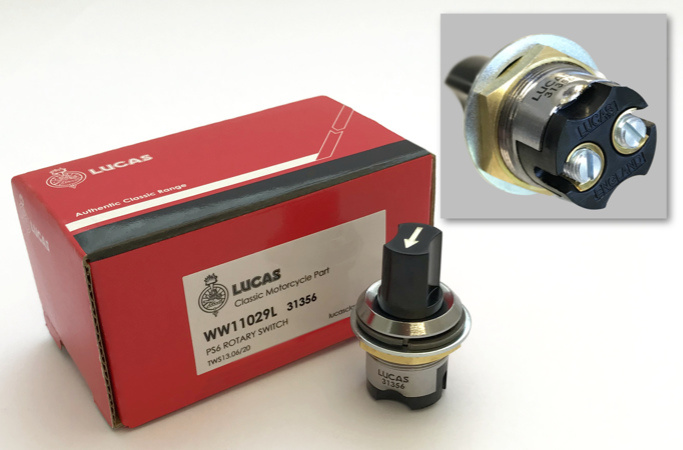

Genuine Lucas PS6 Rotary Headlight Switch (31356) BSA C15T,C15S (1963-) B25SS,B50SS (1971-) BSA B25T,B50T Victor (1971-) BSA A50,A65 (1971-) BSA A50 Cyclone, A65 Hornet (1964-) BSA A75 Rocket 3 (1969-) BSA B44 Victor Enduro Special (1966-67)Triumph 250cc T25T,T25SS (1971) Triumph Tiger Cub T20,T20SS,T20SH (1963-)

Pt.no.SW11029

£34.95

Rubber cover for ign. Switch SW10163L above

Pt.no. SW10169

£6.95

Genuine Lucas

Classic Master Cylinder Hydraulic Brake Light Switch. As fitted to Triumph T140,TR7,T150,T160 (1979-) that were fitted with front brake discs, and Norton Commando disc brake models.

3/8 x 24TPI UNF parallel thread

Pt.no. SW11032

£13.95

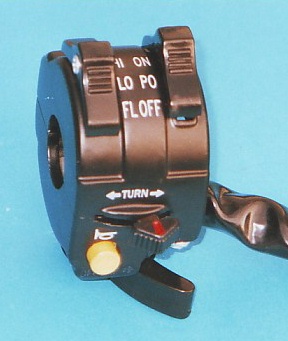

HANDLEBAR MOUNTED LIGHT/INDICATOR SWITCH



Compact Multipurpose handlebar switch No. 1

Just over 1 1/8"" wide (30MM)

Clamps around the standard 7/8" handlebar

Headlight: Dip, Main

Indicators.

Horn.

Pt.no.SW694600 £39.95

Click here for wiring details

This switch is ideal when adding indicators to a classic bike, needing no wiring changes to the light switch, only removal of the existing dip switch/horn button and wiring in the indicators. Existing levers can be used.



Right handlebar switch No. 2

Matching right hand switch:

Just over 1 1/8" wide (30MM)

Engine run/off

Lights on/off

Electric start or flasher.

£39.95 Pt.no. SW694605











Indicator switch 3

3 position indicator switch is for handlebar mounting and features a 'centre-off' position. Simple & reliable. £9.95

Pt.no IND694997



Indicator switch 4

Switch similar to the one above but with a more substantial clamp arrangement

£15.95

Pt.no. SW15434



DIPSWITCH/HORN BUTTONS

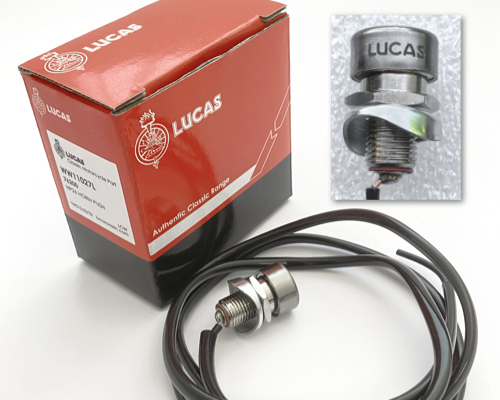

Genuine Lucas Classic HP26 Horn Push Assembly 76200. Screws into Handlebar or can be panel mounted

Pt.no. SW11027L £35.95



Chrome handle-bar button earths the connecting lead and can be used for horns or magneto cut-outs. Lucas pattern

Pt.no. SW16006 £13.95 for 7/8" bars

Pt.no. SW16007 £13.95 for 1.0" bars

Horn button

Classic handle-bar button earths the connecting lead and can be used for horns or magneto cut-outs.

Black Pt.no SW694995 £8.95

Red Pt.no. SWK522 £8.95



Universal dipswitch. Can also be used as an on/off switch. £9.95

Pt.no. SWD008

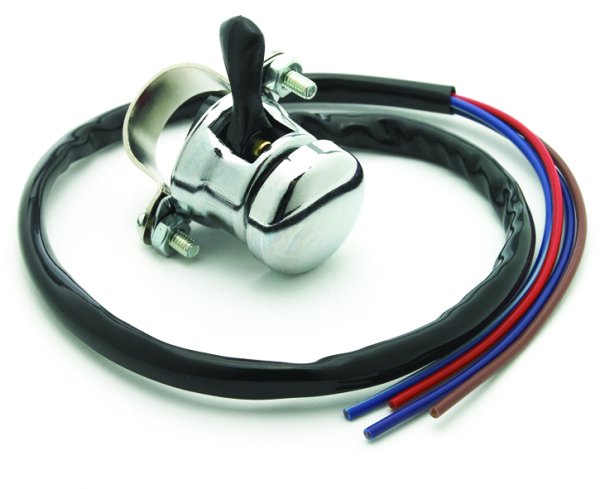

Lucas pattern dipswitch/horn button £28.95

Pt.no SW19231

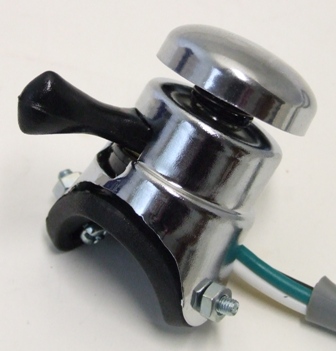

Lucas pattern dipswitch/horn button

Similar to above but screws to the back of one of the levers or handlebars

Pt.no SW19239 £32.95

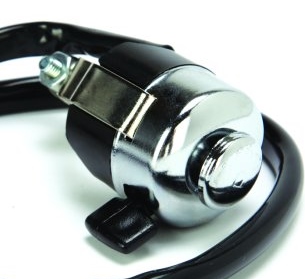

Miller pattern dipswitch/horn button £27.95

Pt. no. SW86004

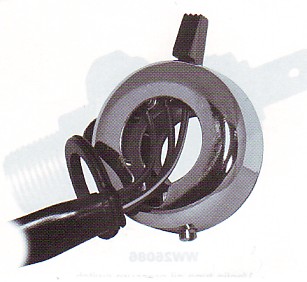

Wipac Ducon pattern S3857 dipswitch/hornbutton £29.95

Pt.no. SW10128

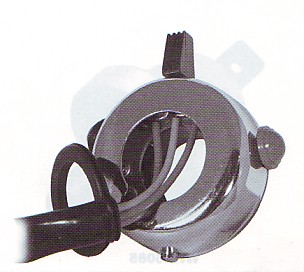

Wipac Tricon pattern S3858 dipswitch/hornbutton/killswitch £29.95

Pt.no. SW10129



Lucas Pattern dipswitch Lucas no. 31549 Gold Star, P/Unit Triumph, Sunbeam S7/8, Pre-war International Norton

Pt.no. SW19232

£26.95



BRAKE LIGHT SWITCHES

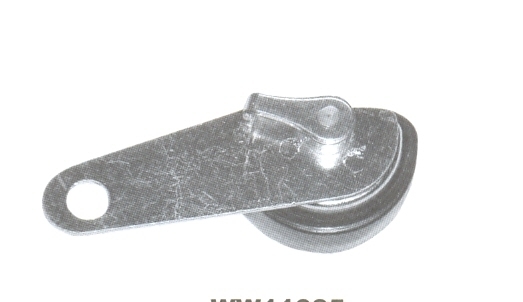

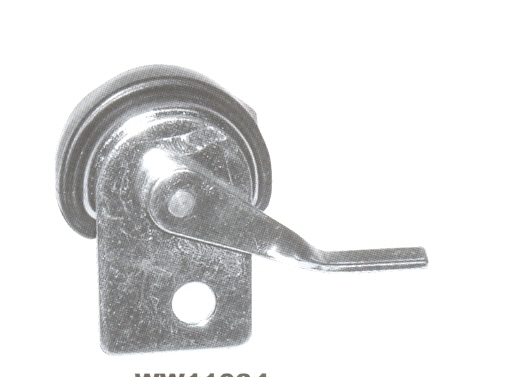

Panel mounting brakelight switch as fitted to Commando, 750 Bonnie, B44 etc.

Pt.no.SW10141 £10.75

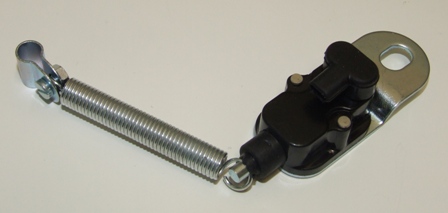

Wipac S2370 pattern brakelight switch as fitted to Bantams & AMC lightweights

Pt.no.SW11044 £31.20

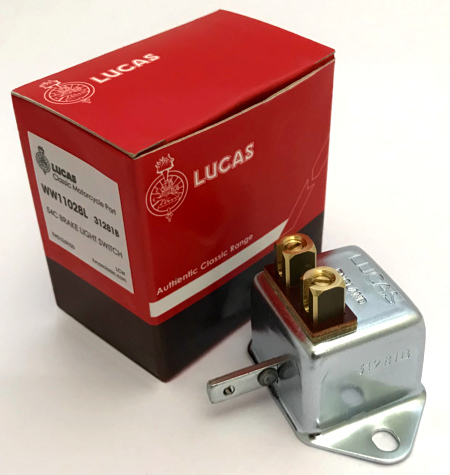

NEW. Commonly known as the 'Vincent brakelight switch' The Lucas 54C 31281B is now available for the first time in many years.

Also fitted to: AJS/Matchless 350,500cc (1953-55) Ariel 350,500,100cc (1952-53) BSA Lucas Bantam (1951-53) BSA C10,C11 (1951-52) BSA B31,B32,B33,B34 (1950-54) BSA M20,M21,M33 Sunbeam S7,S8 (1951-57) BSA A7,A10 Plunger (1951-57) Enfield 350,500cc Bullet (1953) Norton 350,500,600cc (1953) Panther 250,600cc (1955) Triumph 3TA,5TA,6TA,T100 (1951-54) Vincent 500,1000cc (1951-54)

Automotive applications include Aston Martin, Austin, Citroen, Jaguar, Morgan, Rover and Landrover models

Pt.no. SW11028L £38.50

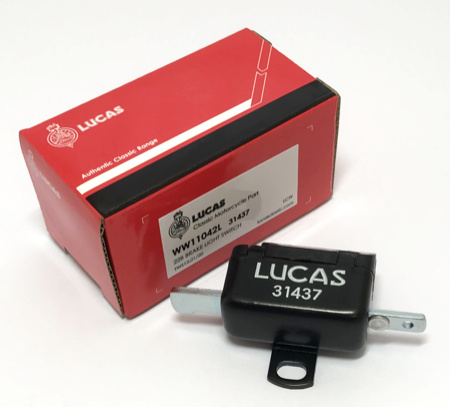

Triumph 350,500,650cc models (1964-74), BSA Pre Unit A7/A10 models (1957-63) Ariel, Royal Enfield, Norton, Panther, Sunbeam, various models from about 1953

These are supplied without the white lettering

Also suits Series D Vincent front brake.

Pt.no. SW11042 £19.95

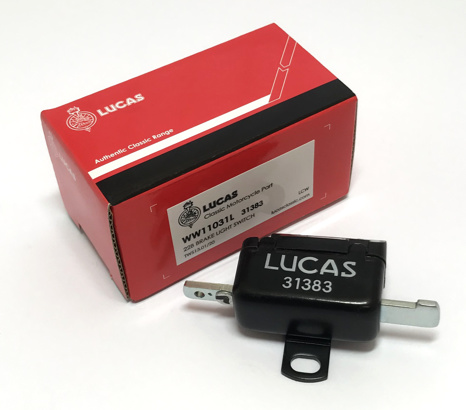

Genuine 22B Lucas slide type brake light switch.

On when relaxed, push against spring to turn off.

As fitted to :- Triumph Pre Unit, early Unit 350/500cc models (-1964), Norton 350,500,600cc (50,ES2,88,19,99) models.

These are supplied without the white lettering

Pt.no. SW11031L £19.95

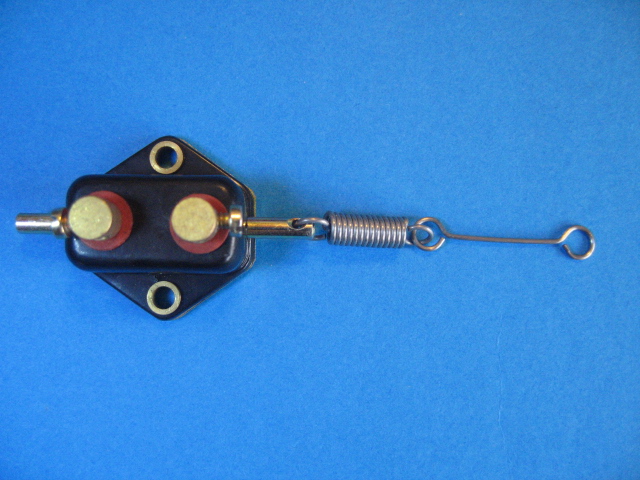

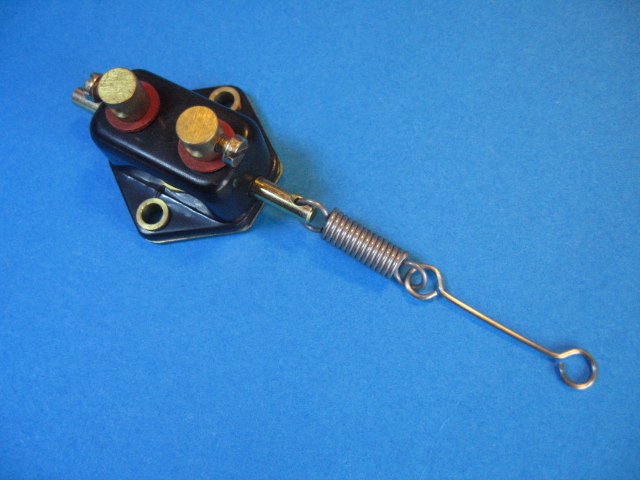

Miller pattern 43E brakelight switch

Pt.no.SW11045 £17.95

Now plated finish

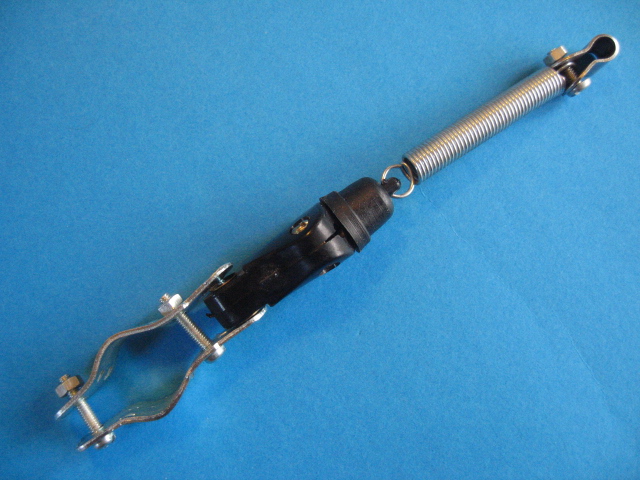

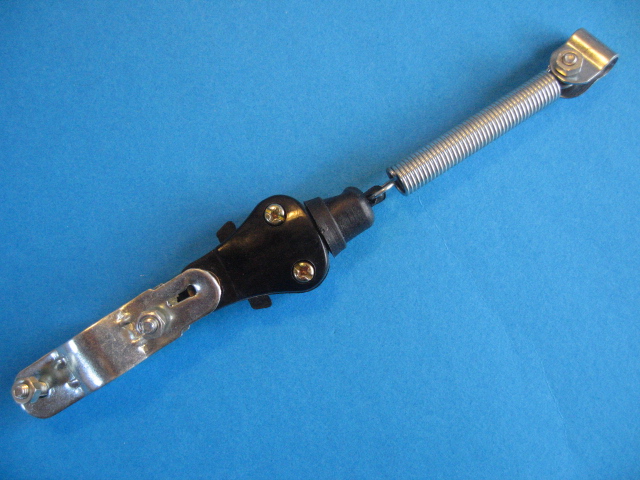

Classic style brakelight switch can be used on just about any drum brake rear wheel.

These are reproductions of brakelight switches sold by Stadium in the late 1950s/60s

Pt.no. SW11043 £9.95

Fitted to 5T, 6T, T110 & T120



REAR/SIDE REFLECTORS

Red reflector 2" overall diameter with the reflector measuring 11/2"

Rear mounted 5MM stud fixing, c/w nut.

Pt.no. RL19102P

£11.40



  What's new page
  How to order
  LED headlight bulbs H4 British Pre-Focus BA15D + BA20d 6V & 12V
  LED Indicators, 6V & 12V
  LED daytime running lights for older cars/motorcycles
  LED bulb replacements for cars/motorcycles
  Brighter Quartz Halogen Headlight & pilot bulbs for older bikes/cars
  Motorcycle indicators
  Motorcycle batteries & battery boxes, sealed AGM Gel
  Motorcycle & Car lighting
  Motorcycle electrics


Pazon Electronic ignitions & Magneto replacements

  Stainless Steel Silencer clamps
  Motorcycle petrol taps and fittings
  Motorcycle Oil Filter Kits
  BSA fork upgrade kit & other A7/10 parts
  Handlebar levers for Classic Bikes
  Girling Replica motorcycle shock absorbers
  Repair service for Lucas Rita ignitions
  Goffys Norbsa 850
  Goffys A10
  Goffys Dommi
  Moto Guzzi 1000S
  One of my old A10s
  Some of my other old bikes
  Homepage




Write to me: 49 Chequers Lane, Prestwood, Bucks. HP16 9DR

Ring me on: 01494 868218

9.00AM - 4.30PM Mon./Thurs.

Please leave a message if I'm out

Don't phone in the evenings, it makes me grumpy

For ordering see How to order

E mail me at: norbsa02@aol.com (use this address for Paypal payments)
