Petrol taps for bikes with BSP threads

Guaranteed Ethanol proof. Viton 'A' grade seals fitted.

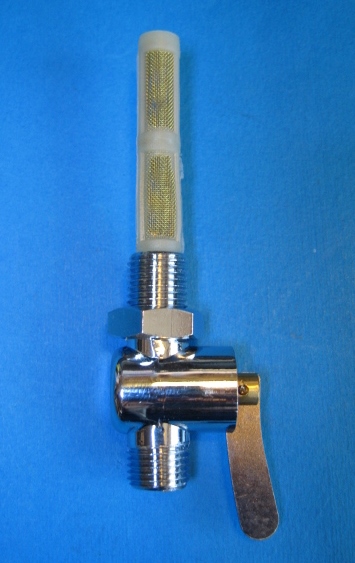

1/4 x 1/4 BSP Flat lever, Chrome plated

Pt. no. PT73091 Main

Pt. no. PT73092 Reserve

£12.95

NB. If ordering one tap, the Reserve tap is the one that empties the tank

Guaranteed Ethanol proof. Viton 'A' grade seals fitted. Chrome plated With indicator plate as Mk111 Commando etc.

1/4 x 1/4 BSP Flat lever, Chrome plated

PT73095 Main

PT73096 Reserve

£13.95

NB. If ordering one tap, the Reserve tap is the one that empties the tank

Guaranteed Ethanol proof version. Teflon (PTFE) seals fitted.

This is a top quality product, CNC machined and Nickle plated like the originals. They look better than in the photograph.

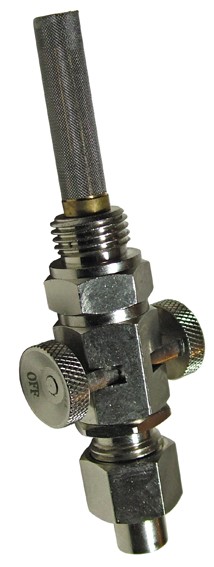

1/4 x 1/4 BSP Push-on, Push-off with nut spigot. Pt.no PT73066N

1/8 x 1/4 BSP Push-on, Push-off with nut spigot. Pt.no PT73068N

£27.95 each

Guaranteed Ethanol proof version. Teflon (PTFE) seals fitted.

This is a top quality nickel plated ball valve with St./St. strainer.

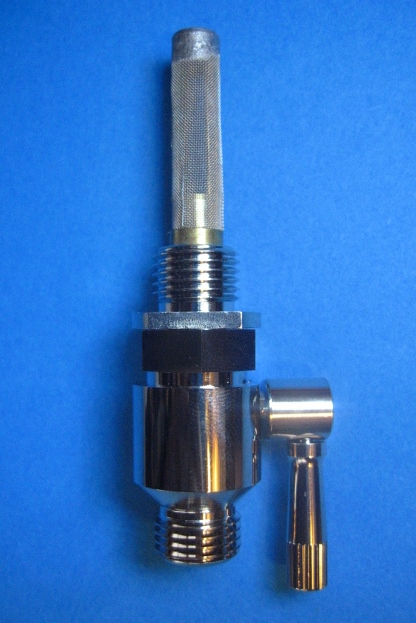

1/4 x 1/4 BSP lever tap. Pt. no. PT73084N

1/8 x 7/16 BSP lever tap. Pt. no. PT73082N (Smaller outlet thread, Pt. no. PT73023 nut/hosetail suits).

1/8 x 1/4 BSP lever tap. Pt. no. PT73083N

£27.95

1/8 BSP is 0.383" dia. (10 MM approx.) 28TPI

1/4 BSP is 0.518" dia. (13 MM approx.) 19TPI

3/8 BSP is 0.656"dia. (17MM approx.) 19TPI



The chrome plated lever taps above are best fitted using PTFE thread sealing tape

These taps have a running nut so can be locked in any position, but if only a sealing washer is used the petrol will run down the threads inside the washer & nut & leak out. This can look like a leaking tap. Be aware.

I no longer sell this, it is available from any hardware store







Pull-on push off twist to lock replacement plungers with corks, chrome plated. These will also fit taps that originally didn't have twist to lock plungers.

Length of the shaft excluding the Knob, 24MM Dia of the shaft 8.5MM with the cork a little larger.

Pt.no. PT73104 £9.50 ea.

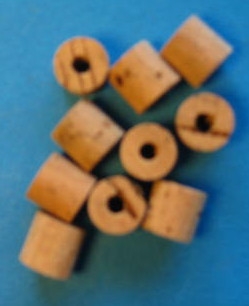

Replacement corks for pull-on push off taps. As fitted to tap plungers above. These fit the Pt.no.PT73086 above and many original taps. These are 0.40" dia. x 0.40" long

Pt.no.PT73106 £1.00 ea.

Replacement corks for pull-on push off taps. These fit many original taps.

These are 0.575" dia x 0.25" thick

Pt.no.PT73105 £1.00 ea.

Petrol tap adapter 3/8 x 1/4 BSP. Now plated.

Pt.no. PT73119 £2.95 each

Petrol tap adapter 1/4 x 1/8 BSP. Now plated.

Pt.no. PT73118 £2.50 each

1/4" x 1/4 BSP nut & hosetail, plated £3.95

Pt. no. PT73022/7

Hosetail available seperately Pt.no. PT73027 £2.50 Nut available seperately PT73022 £1.50

Fuel pipe Nut & hosetail set.

Nut Size (ins): 7/16" for 1/4" hose. This is an odd size fitted to some lightweights.

Pt. no. PT73023 £3.95

45 Degree Elbow for 1/4" hose with nut PT73037/2 £4.25

Elbow only Pt.no. PT73037 £2.95

Nut only to suit PT73022 £1.50



90 Degree Elbow for 1/4" hose, with nut PT73036/2 £4.25

Elbow only Pt.no. PT73036 £2.95

Nut only to suit PT73022 £1.50

1/4" x 1/4 BSP nut & hosetail elbow, plated £6.50

Pt. no. PT73051

1/4" x 1/4" Tee piece, plated

Pt. no. PT73057

£5.95

Petrol tap washers 3/8 BSP pack of 10

Pt.no. PT73117 £2.50 each

Petrol tap washers 1/4 BSP pack of 10

Pt.no. PT73116 £2.50 each

Petrol tap washers 1/8 BSP pack of 10

Pt.no. PT73115 £2.00 each

Filters for 1/4" (6MM) petrol hose approx. 1" dia.

Pt.no.PT FFTCL £2.95 each

Plated brass (or sometimes St./St.) ferrules for 1/4" bore 'rubber' petrol line.

13MM I.D.

Pt. no. PT73021

£1.00 ea

Crimping tool for the ferrules above

Pt.no. CT017

£15.95

Made in England

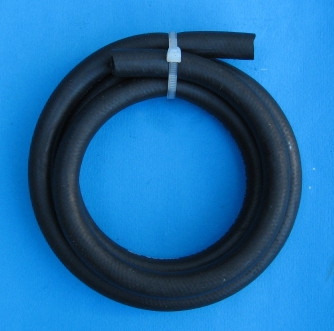

Available in 1/4", 5/16" and 3/8" bore, this hose is suitable for petrol or hot engine oil at up to 16.5 bar. Sold in 1.0 Metre lengths. Proof against ethanol

1/4" Pt.no.H014 £4.50

5/16" Pt.no. H516 £5.50

3/8" Pt.no. H038 £6.50

St./St. Jubilee type hose clips in sizes to suit

1/4" jubilee type clips to suit Pt.no. JUB14 £1.00ea.

5/16" jubilee type clips to suit Pt.no. JUB516 £1.00 ea.

3/8" jubilee type clips to suit Pt.no. JUB38 £1.00 ea

St./St 'O' clips in sizes to suit. These can be crimped with the proper tool, in the vice or using a pair of cutters.

1/4" O clips Pt.no.OC14 £1.00ea.

5/16" O clips Pt.no.OC516 £1.00 ea

3/8" O clips Pt.no.OC38 £1.00 ea
